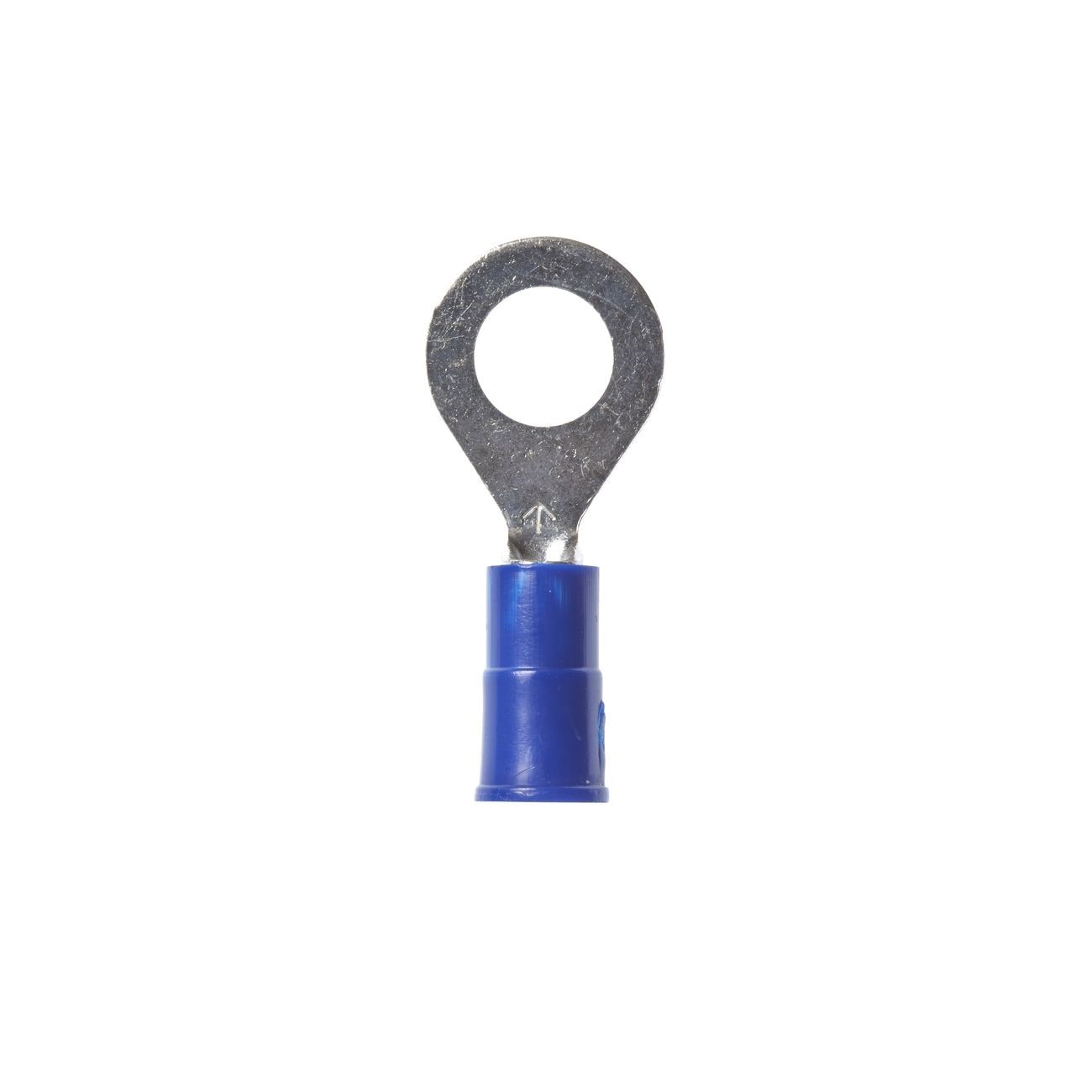

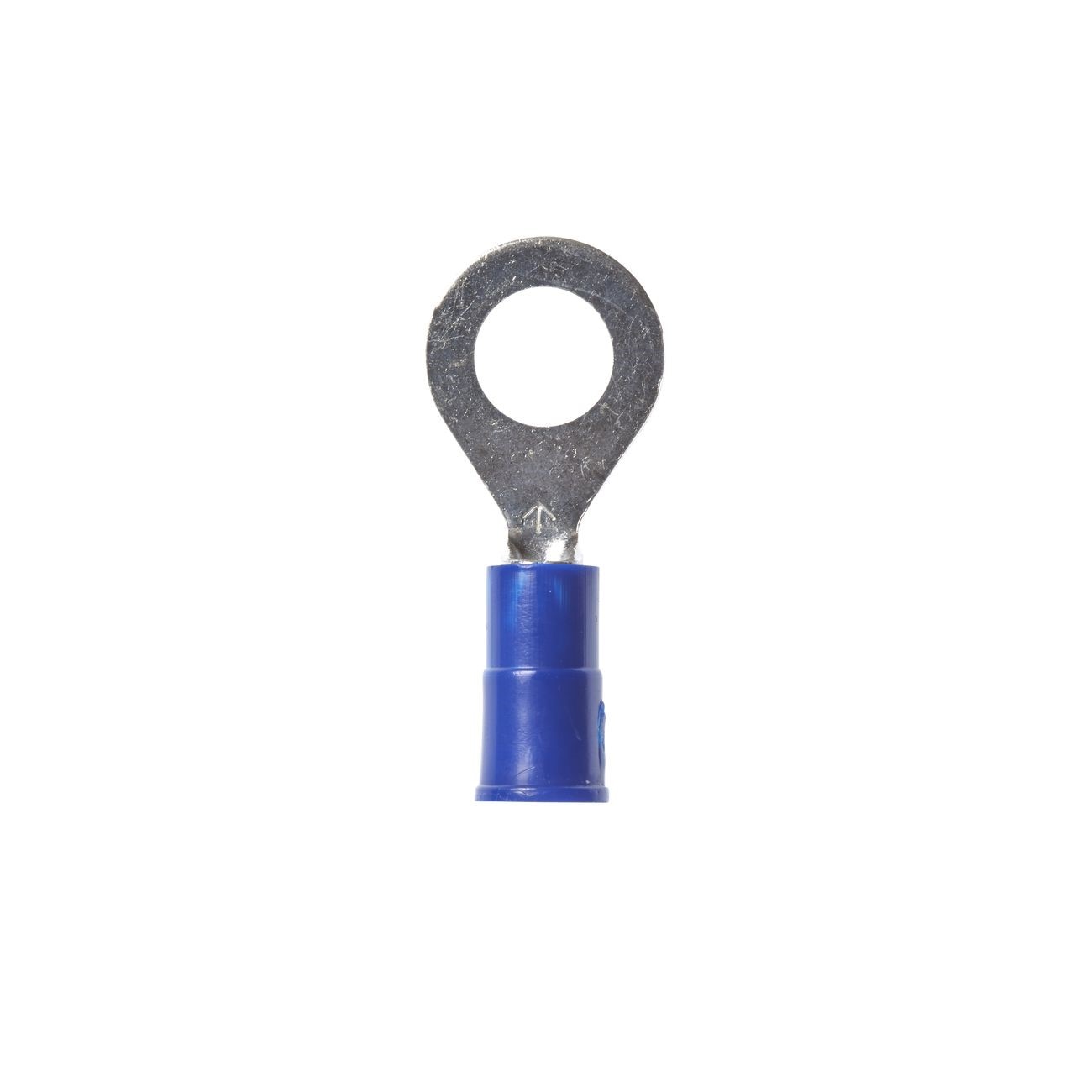

3M 7100165257 Vinyl Insulated Ring Terminal

Product Description

The 3M 7100165257 is a vinyl insulated ring terminal designed for secure, reliable wire terminations in electrical wiring applications. Sold in bottles of 100, this crimp-style connector accepts 14 AWG wire and fits a 14-size stud, making it a standard choice for panel wiring, control circuits, and general electrical connections. The vinyl insulation sleeve provides a protective barrier against moisture, abrasion, and incidental contact. Licensed electricians and electrical contractors install these terminals as part of panel builds, motor control wiring, and equipment hookups where a clean, code-compliant ring lug connection is required.

This ring terminal is suited for residential and light commercial electrical work where 14 AWG conductors terminate to screw or stud connections. Common applications include control panel wiring, HVAC equipment connections, and general-purpose electrical assemblies. The 100-count bottle format makes this terminal practical for shop stock and field service kits where consistent replenishment of standard sizes is necessary.

Key Features

• Vinyl insulated barrel for protection against moisture and abrasion
• Sized for 14 AWG wire with 14-size stud opening
• Crimp-style installation for fast, consistent terminations
• Packaged 100 per bottle for bench stock and field use
• Compact, lightweight form factor for high-density wiring work

Compatibility

Designed as an OEM-style ring terminal replacement for standard 14 AWG wire-to-stud connections in residential and light commercial electrical applications.

Installation Notes

Installation is performed by licensed electricians or qualified electrical technicians. De-energize all circuits before terminating conductors and verify lockout/tagout procedures are followed per applicable NEC requirements. Use a calibrated ratchet crimping tool rated for insulated vinyl terminals to achieve a secure, gas-tight crimp. Avoid over-crimping, which can damage the vinyl insulation sleeve and compromise the connection.

Technical Specifications

• Wire Gauge: 14 AWG
• Stud Size: 14
• Insulation Type: Vinyl
• Terminal Type: Ring
• Package Quantity: 100 per bottle
• Weight: 0.01 pounds
• UPC: 00051128588208

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100165257
