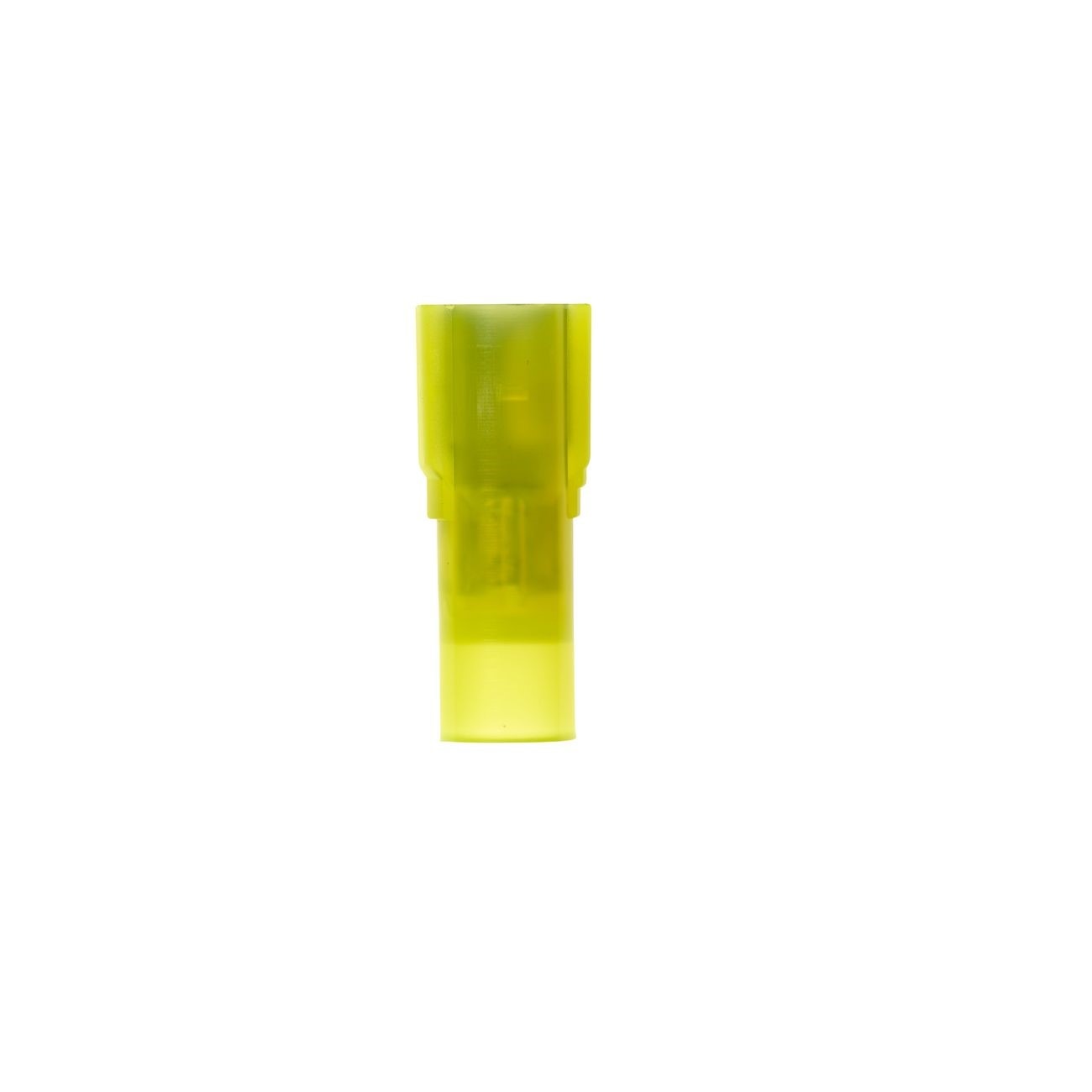

3M 7100164301 Female Disconnect 12-10 Awg Terminal

Product Description

The 3M 7100164301 is a fully insulated female disconnect terminal designed for reliable, tool-free electrical connections in wiring harness and panel wiring applications. Rated for 12-10 AWG wire, this terminal accepts a standard male tab and uses a precision-formed tongue on the female body to slip over the tab and lock in place. Dents and rolled edges along the female contact provide strong holding force while still allowing fast, clean disconnection when service or reconfiguration is required. Licensed electricians, industrial wiring technicians, and panel builders rely on this type of terminal where repeated connect-and-disconnect cycles are part of normal maintenance workflow.

This terminal is suited for residential and commercial electrical panels, automotive wiring, control panel assemblies, and general-purpose low-voltage wiring applications. The 12-10 AWG wire range accommodates common branch-circuit and control-circuit conductors. The fully insulated body reduces the risk of accidental contact with adjacent conductors in tight wiring compartments. Sold individually, with case quantities of 1000 units available for higher-volume installations.

Key Features

• Wire range: 12-10 AWG for common branch and control circuit conductors
• Female tongue design slips over male tab for secure, low-resistance connection
• Dents and rolled edges on female contact deliver strong holding force
• Quick-disconnect design allows fast removal without tools during service
• Fully insulated body for protection in congested wiring environments

Compatibility

Designed as an OEM-style replacement and general-use female disconnect terminal compatible with standard 0.250-inch male quick-disconnect tabs used in residential and commercial electrical wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified wiring technicians following NEC requirements for the circuit type and voltage rating. Always de-energize and lockout-tagout the circuit before terminating or removing any disconnect terminal. Strip the conductor to the correct length per the terminal manufacturer specification before crimping, and use a calibrated ratchet crimp tool appropriate for the wire gauge to ensure a gas-tight, pull-resistant termination. Do not solder over a crimped connection on this style of terminal.

Technical Specifications

• Wire Range: 12-10 AWG
• Terminal Type: Female Disconnect
• Weight: 0.01 pounds
• Sold As: Each
• Minimum Order Quantity: 500
• UPC: 00054007695738

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100164301
