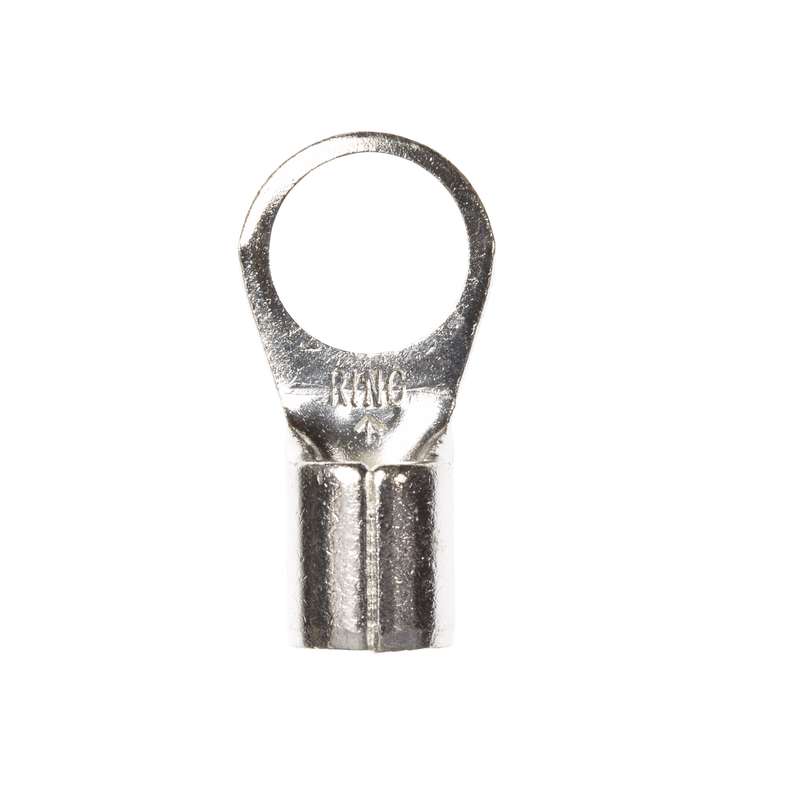

3M 7100164164 Scotchlok Ring Tongue Non-Insulated Brazed Seam M4-12R/SK Stud Size 1/2 200/Case

Product Description

3M Scotchlok Ring Tongue Terminal, part number 7100164164, provides a reliable electrical connection. The terminal is designed with a non-insulated, brazed-seam barrel featuring a beveled mouth. This design allows for easy wire insertion and ensures a secure fit. The terminal operates effectively at maximum temperatures of 347 degrees Fahrenheit. Made from electrolytic copper with a tin-plated finish, it offers good conductivity and corrosion resistance.

• Non-insulated design for a secure connection
• Brazed-seam barrel for improved reliability
• Designed for use with wire size 4 AWG

Product Highlights

Utilizes a ring tongue for a sturdy connection around the stud which is secure and reliable.

Product Information

Standard Information

• Brand: 3M
• Part Number: 7100164164

Technical Specifications

• Stud Size: 1/2 inch
• Wire Size Compatibility: 4 AWG
• Material: Electrolytic copper with tin plating
• Maximum Temperature Rating: 347 degrees F (175 degrees C)
• Voltage Rating: 600V for building wire, 1000V for fixtures
• Package Quantity: 200 each
• Width: 0.68 inches
