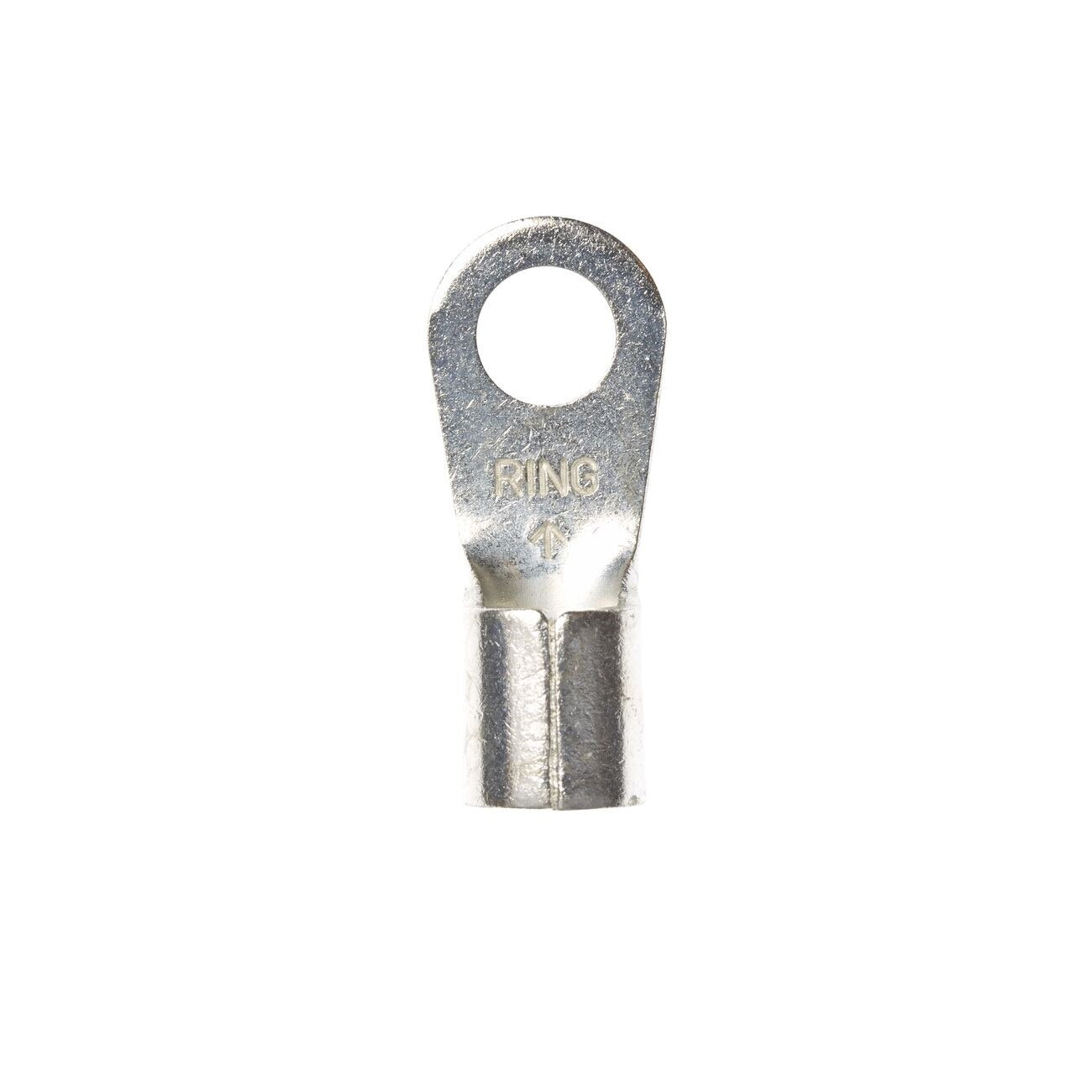

3M 7100164155 Ring Tongue Terminal 6 Awg 1/4 Stud

Product Description

The 3M 7100164155 is a non-insulated ring tongue terminal designed for permanent, secure electrical connections in professional wiring applications. Built with a brazed seam construction, this terminal accepts 6 AWG wire and fits a 1/4 inch stud size. The ring-style tongue is the standard closed-loop design, meaning the terminal cannot be accidentally dislodged unless the mounting fastener is fully removed. Electricians and panel technicians rely on this style for high-integrity terminations where vibration or movement could compromise an open-style lug.

This terminal is suited for commercial and industrial electrical work where non-insulated, crimped ring lugs are required at bus bars, grounding points, equipment chassis connections, and terminal blocks. The brazed seam barrel provides a uniform crimp zone for 6 AWG conductors. Sold individually, with a minimum order quantity of 200 units per case, making it appropriate for contractors and service shops stocking standard termination hardware.

Key Features

• Non-insulated brazed seam barrel for consistent crimp performance on 6 AWG wire
• Ring-style tongue fits 1/4 inch studs and cannot be removed without loosening the mounting fastener
• Closed-loop tongue design resists accidental disconnection in vibration-prone environments
• Minimum order quantity of 200 units supports job-site and shop stocking needs

Compatibility

Designed as a standard non-insulated ring tongue terminal for use with 6 AWG conductors and 1/4 inch mounting studs in commercial and industrial electrical termination applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductor. Use a calibrated ratcheting crimp tool rated for the barrel size to ensure a gas-tight crimp on the 6 AWG conductor. Do not solder over the crimp, as this can create a stress point at the barrel edge.

Technical Specifications

• Wire Range: 6 AWG
• Stud Size: 1/4 inch
• Terminal Style: Ring Tongue
• Insulation: Non-Insulated
• Barrel Construction: Brazed Seam
• Weight: 0.01 pounds
• Minimum Order Quantity: 200
• UPC: 00054007021490

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100164155
