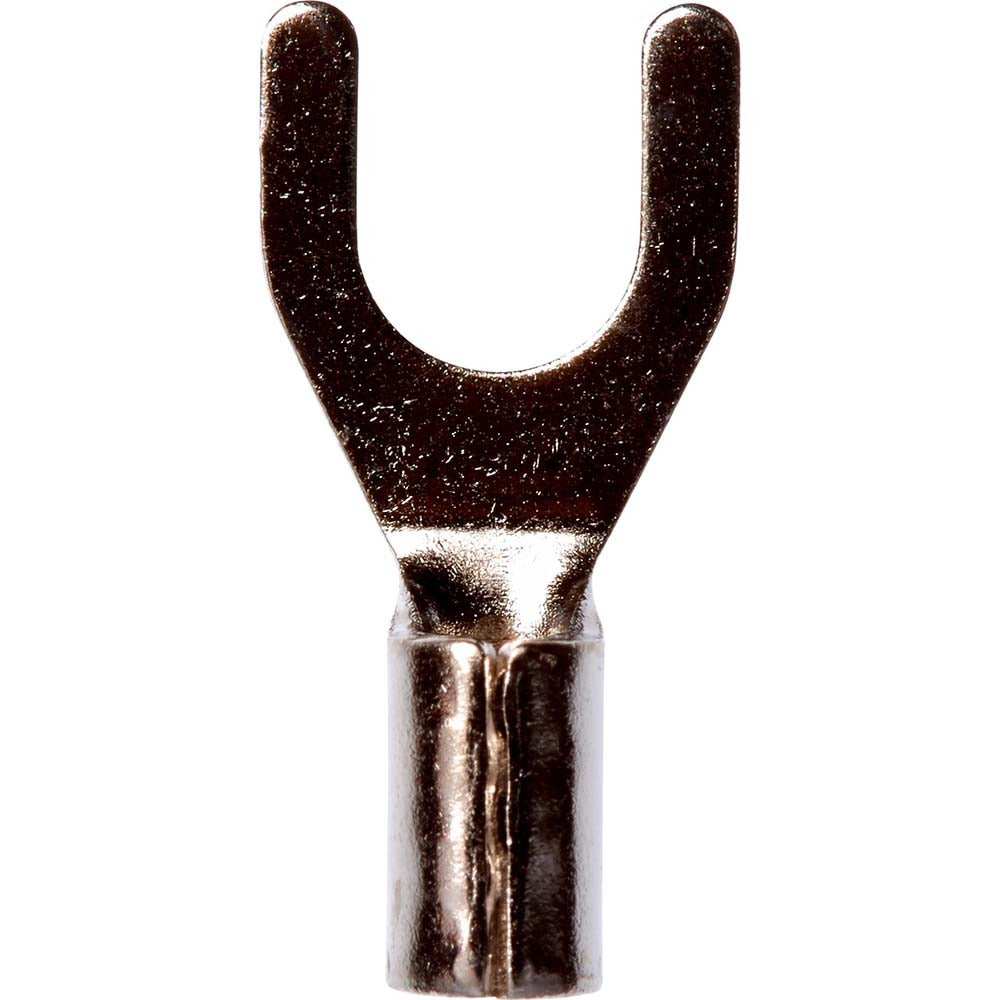

3M 7100164061 Non-insulated Fork Terminal 600V 10 Stud

Product Description

The 3M 7100164061 is a standard non-insulated fork terminal designed for crimp-style wire terminations in electrical wiring applications. Rated at 600 volts, it accommodates a No. 10 stud size and is constructed from copper for reliable conductivity. The fork width measures 0.34 inches and the overall length is 0.70 inches, making it a compact but capable termination point. Licensed electricians and electrical contractors use these terminals when terminating conductors to screw-post connections in control panels, junction boxes, and equipment wiring assemblies where a bare, uninsulated terminal is required by design or code.

This terminal is suited for residential, commercial, and light industrial electrical work where a No. 10 stud crimp fork terminal is called for. Typical applications include motor control wiring, panel board connections, and equipment grounding or bonding circuits. The non-insulated design is commonly used where terminal blocks or shrouding is provided by the enclosure or equipment itself. This part ships in a package quantity of 1000, making it practical for high-volume production or service shop stocking.

Key Features

• Non-insulated copper construction for direct conductivity and compatibility with insulated terminal blocks
• Crimp connection type for fast, reliable, and tool-secured terminations
• Rated at 600 volts for broad electrical application coverage
• No. 10 stud size fits standard screw-post terminals and binding posts
• Fork width of 0.34 inches and overall length of 0.70 inches for compact installations
• RoHS 2011/65/EU compliant

Compatibility

Designed as a standard OEM-style crimp fork terminal for use with No. 10 stud screw connections in electrical control, panel, and equipment wiring applications where a non-insulated fork terminal is specified.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use a calibrated ratcheting crimp tool sized for the wire gauge and terminal to achieve a proper mechanical and electrical connection. Do not use pliers or uncalibrated tools as a substitute for a proper crimper, as an improper crimp can result in a loose connection or increased resistance.
