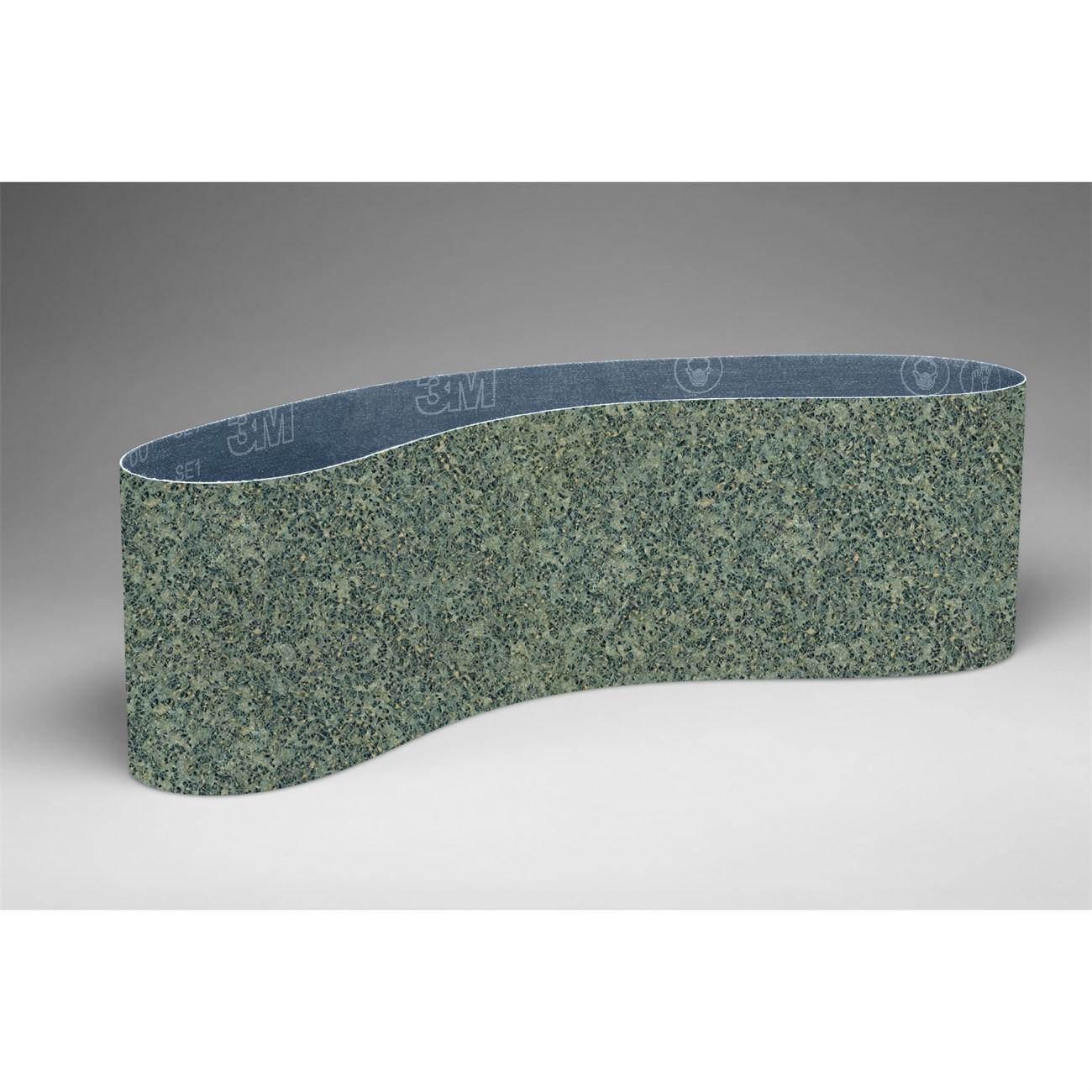

3M 7100159571 Surface Conditioning Belt 100x7 Inch

Product Description

The 3M 7100159571 is a non-woven surface conditioning belt designed for moderate-duty finishing and surface preparation tasks across a range of metal and composite substrates. Built on a durable cloth and polyester scrim backing, this belt offers low-stretch performance suited to applications where dimensional control and consistent contact pressure matter. At 100 inches long and 7 inches wide, it fits standard wide-belt finishing machines used in fabrication and metalworking shops. Springy nylon fibers conform to workpiece geometry while the open web construction resists loading, extending usable service life. Installers and fabricators choose this belt for blending, deburring, and intermediate finishing sequences.

This belt is used in industrial surface conditioning applications on a variety of substrates including stainless steel and brass. The moderate-strength, low-stretch construction makes it effective in multi-step finishing sequences where aggressive cutting is not required and substrate marring must be avoided. It is well suited for fabrication shops, maintenance facilities, and production metalworking environments running wide-belt or contact-drum machines.

Key Features

• Durable cloth and polyester scrim backing provides low-stretch stability during operation
• Springy non-woven nylon fibers finish surfaces while maintaining workpiece geometry
• Open web construction resists loading and extends abrasive service life
• Compatible with a variety of substrates including stainless steel and brass
• Resin bond system supports consistent mineral adhesion across the belt face

Compatibility

Designed as an OEM-style replacement or direct-fit option for wide-belt and contact-drum surface conditioning machines accepting 100-inch by 7-inch non-woven abrasive belts.

Installation Notes

Belt installation should be performed by a qualified machine operator or maintenance technician with the machine fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Verify belt tracking and tension per the machine manufacturer guidelines before resuming operation. Inspect the belt for tears or edge damage prior to each use and never operate a damaged belt.

Technical Specifications

• Belt Length: 100 inches
• Belt Width: 7 inches
• Construction: Non-Woven
• Backing Material: Cloth and Polyester Scrim
• Bond Type: Resin
• Weight: 2 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 00048011244624

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100159571
