3M 7100156946 DBI-SALA SalaliftII Winch with 60 feet Stainless Steel Wire Rope Line

Product Description

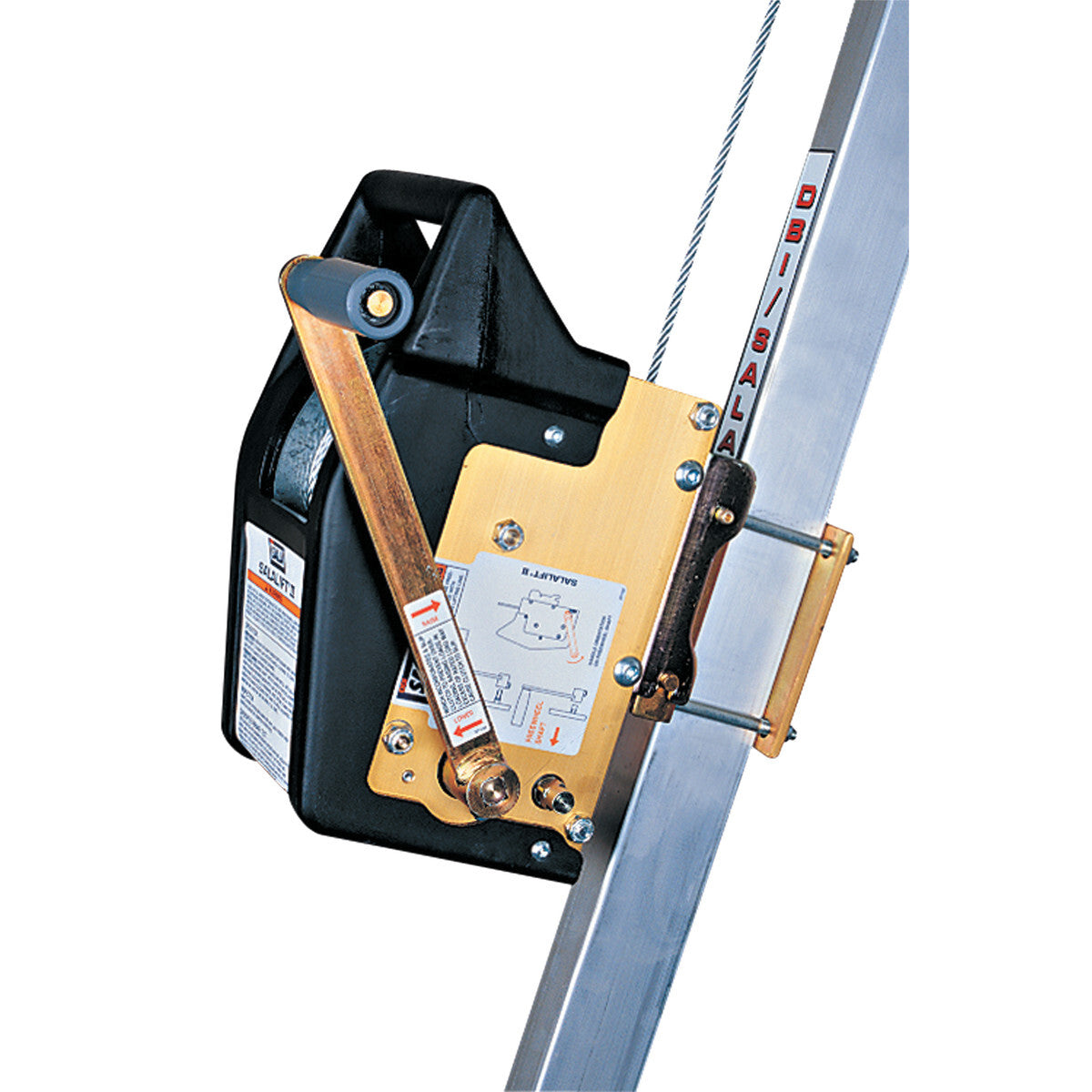

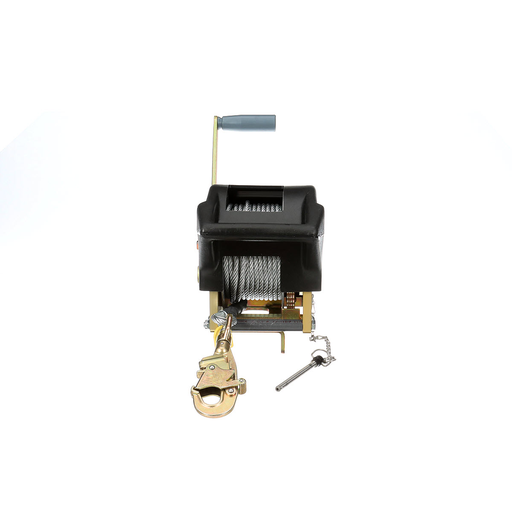

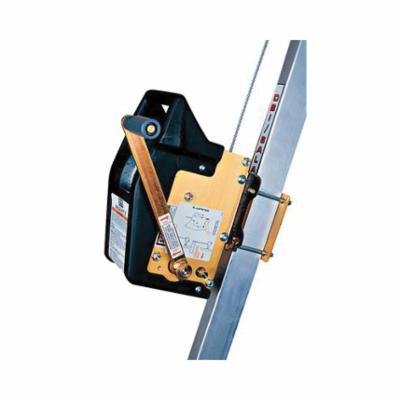

The 3M 7100156946 DBI-SALA SalaliftII Winch is a manually operated winch equipped with 60 ft. (18 m) of 1/4 in. (6.3 mm) stainless steel wire rope. This essential component for confined space rescue systems includes a swivel snap hook, mounting bracket, and carrying bag, designed for efficiently raising and lowering workers and materials. It features a 6:1 gear ratio for smooth operation.

• Manually operated winch with a 6:1 gear ratio for smooth entry and extraction.
• Equipped with 60 ft. (18 m) of 1/4 in. (6.3 mm) stainless steel wire rope and a swivel snap hook.
• Features a free-wheel mode and overload clutch, designed to lock up in the event of a fall.

Product Highlights

This DBI-SALA SalaliftII Winch is crucial for confined space entry and rescue, providing reliable raising and lowering capabilities with built-in fall protection.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100156946
• Country of Origin: USA

Technical Specifications

• Brand: 3M DBI-SALA
• MPN: 7100156946
• Product Type: Winch
• Series: SalaliftII
• Line Length: 60 ft. (18 m)
• Line Material: 304 Stainless Steel Wire Rope
• Line Diameter: 1/4 in. (6.3 mm)
• Application: Confined Space Entry/Rescue
• Weight: 40.3 lbs
• Dimensions (L x W x H): 13.7 x 15.1 x 13.1 in
• Load Capacity: 350 lb
• Color: Anodized Yellow/Black
• Housing Material: Anodized Aluminum/Polyethylene
• Operation: Manual
• Certifications: ANSI Z117.1-1995, OSHA 1910.146
• End Load: Swivel Snap Hook
• Manufacturer: 3M Fall Protection
