3M 7100150089 Diamond Grade Conspicuity Marking Tape White

Product Description

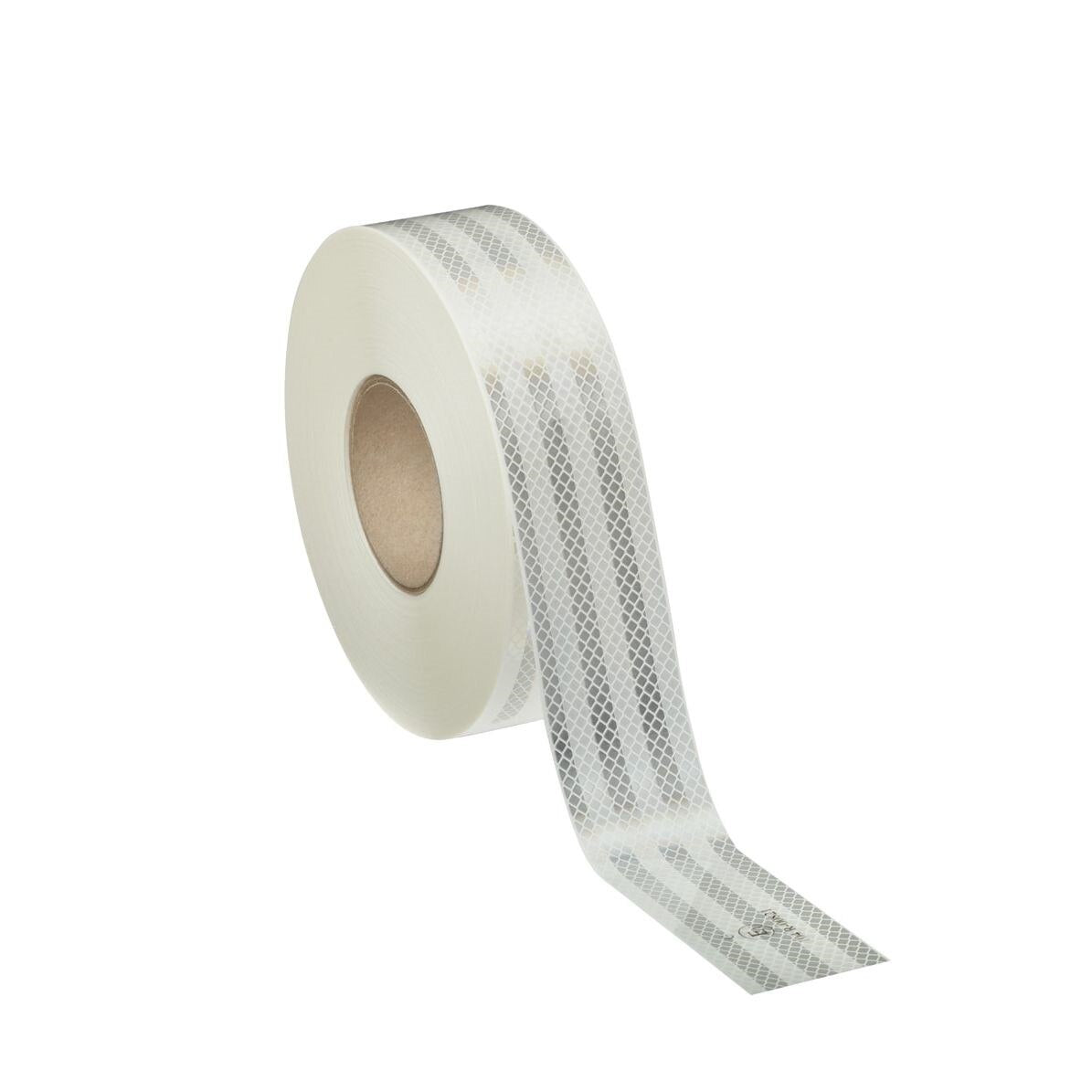

The 3M 7100150089 is a pre-cut strip of Diamond Grade Conspicuity Marking 983-10 ES in white, designed to increase the visibility of large commercial vehicles and trailers. Built with microprismatic sheeting technology, this reflective tape delivers high-intensity retroreflection to help other drivers detect truck and trailer outlines at night or in low-visibility conditions. Each strip measures 2 inches wide by 18 inches long and ships in pack quantities. A factory-applied pressure-sensitive adhesive backing allows direct application to flat or slightly curved surfaces without primers or additional adhesives in most conditions.

This conspicuity marking is used on long-haul trailers, box trucks, flatbeds, tankers, and other large vehicles where DOT-required reflective marking must be applied to side and rear surfaces. It is commonly installed during fleet upfitting, vehicle restriping, or as a replacement for degraded or damaged sections of existing conspicuity tape. Maintenance crews, fleet shops, and body shops are the typical installers. The white color is used in combination patterns alongside red or other colors to meet Federal Motor Carrier Safety Administration (FMCSA) conspicuity requirements.

Key Features

• Microprismatic retroreflective sheeting for high-visibility performance in low-light and nighttime conditions
• Pre-cut strips at 2 inches x 18 inches for consistent, ready-to-apply sizing
• Pressure-sensitive adhesive backing for tool-free installation on clean, prepared surfaces
• White color suitable for use in DOT-compliant conspicuity stripe patterns on trailers and large vehicles
• Designed for exterior use on trucks, trailers, and other large commercial vehicles

Compatibility

Designed for application to trucks, trailers, and large vehicles requiring exterior retroreflective conspicuity marking strips.

Installation Notes

Installation is typically performed by fleet maintenance technicians or body shop personnel without specialized tools. The mounting surface should be clean, dry, and free of grease, wax, or loose paint before applying the adhesive backing. Apply firm, even pressure across the full length of the strip to ensure full adhesive contact. Consult FMCSA 49 CFR Part 393 for placement pattern requirements on commercial motor vehicles.

Technical Specifications

• Width: 2 inches
• Length: 18 inches
• Color: White
• Weight: 2.83 pounds
• Unit of Measure: Pack
• Minimum Order Quantity: 1
• UPC: 50051135308832

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100150089
