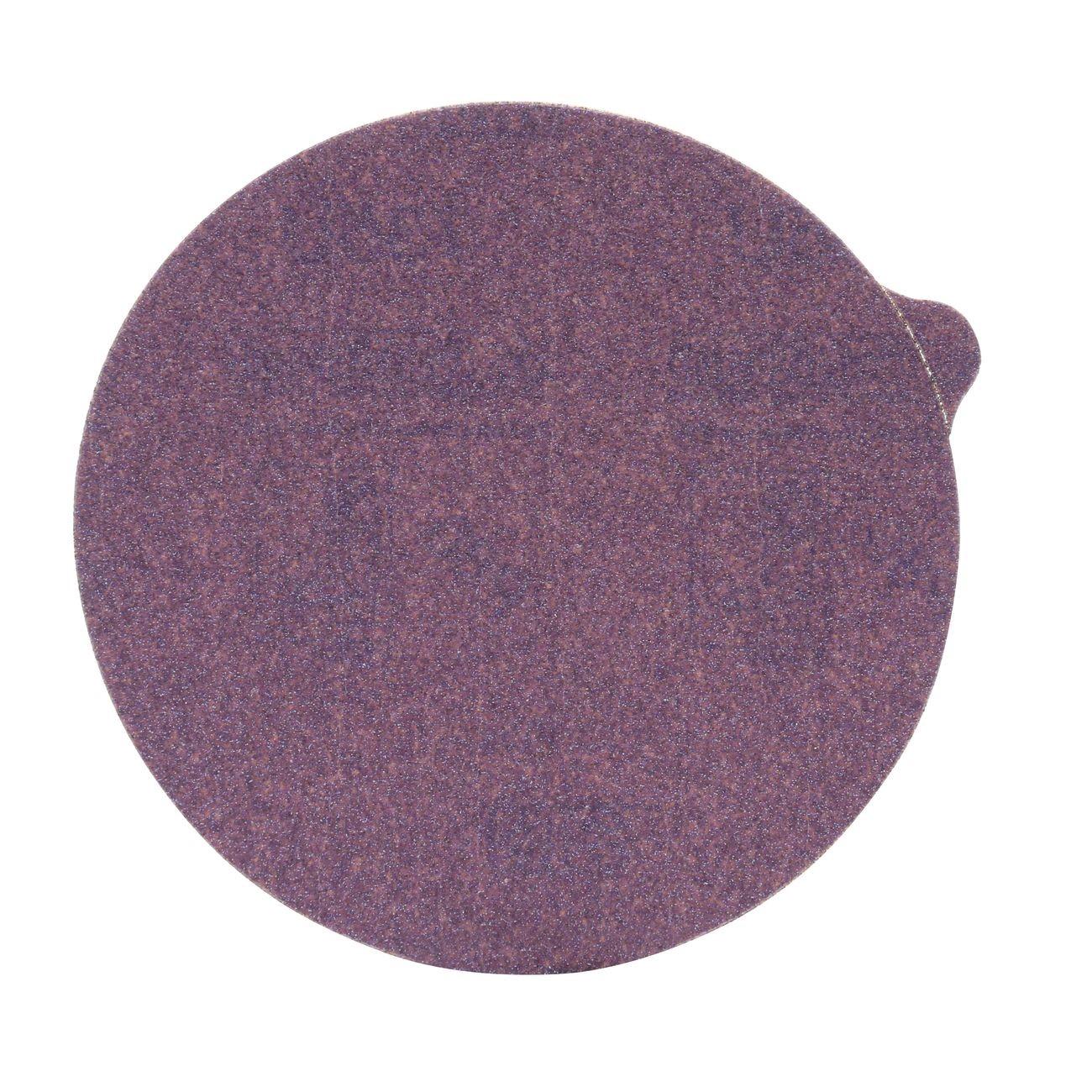

3M 7100145364 Abrasive Disc 5 Inch 400 Grit 775L

Product Description

The 3M 7100145364 is a coated abrasive disc engineered for high-speed stock removal on a wide range of substrates. Built on the Cubitron II 775L platform, it uses 3M Precision Shaped Grain technology — triangular ceramic mineral grains that slice through material rather than plowing or gouging like conventional abrasives. The result is a disc that cuts significantly faster and outlasts standard abrasive products by a wide margin. The polyester film backing adds tear resistance and helps the disc hold its edge under aggressive cutting conditions. At 400 grit, this disc is suited to fine stock removal and surface refinement. It is used by metalworkers, fabricators, and finishing technicians working in production and repair environments.

This disc is designed for use with 5-inch random orbital and disc sanders equipped with a Stikit pressure-sensitive adhesive (PSA) mounting system. The Stikit attachment allows fast disc changes without tools, reducing downtime in high-volume production settings. The 775L is well suited for ferrous and non-ferrous metals, composites, and painted surfaces where controlled material removal is required. Its film backing performs consistently in applications where paper-backed discs tend to tear or delaminate under load.

Key Features

• 3M Precision Shaped Grain technology slices substrate for faster cut rates and extended disc life
• Film backing provides greater tear resistance and edge retention compared to paper-backed discs
• Stikit PSA attachment enables quick, tool-free disc changes
• 400 grit suited for fine stock removal and surface finishing
• 5-inch diameter compatible with standard 5-inch PSA disc sanders
• Designed for a wide range of substrates with a focus on stock removal efficiency

Compatibility

Designed for use with 5-inch Stikit-compatible PSA disc sanders and random orbital sanders accepting PSA-mount abrasive discs.

Installation Notes

Mounting is performed by aligning the disc face to a clean, dry PSA backup pad and applying firm pressure to seat the adhesive. Ensure the backup pad surface is free of debris before mounting to maintain full adhesive contact. Power down the sander and disconnect it from the power source before changing discs. Follow applicable workplace safety guidelines for abrasive tool operation, including eye and respiratory protection when grinding or finishing metal.

Technical Specifications

• Disc Diameter: 5 inches
• Grit: 400
• Abrasive Type: Precision Shaped Ceramic Grain
• Backing Material: Polyester Film
• Attachment Type: Stikit PSA
• Unit of Measure: Each
• Minimum Order Quantity: 250
• Package Weight: 3.05 pounds
• Package Length: 11.3 inches
• Package Width: 5.9 inches
• Package Height: 6.3 inches
• UPC: 638060050687

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100145364
