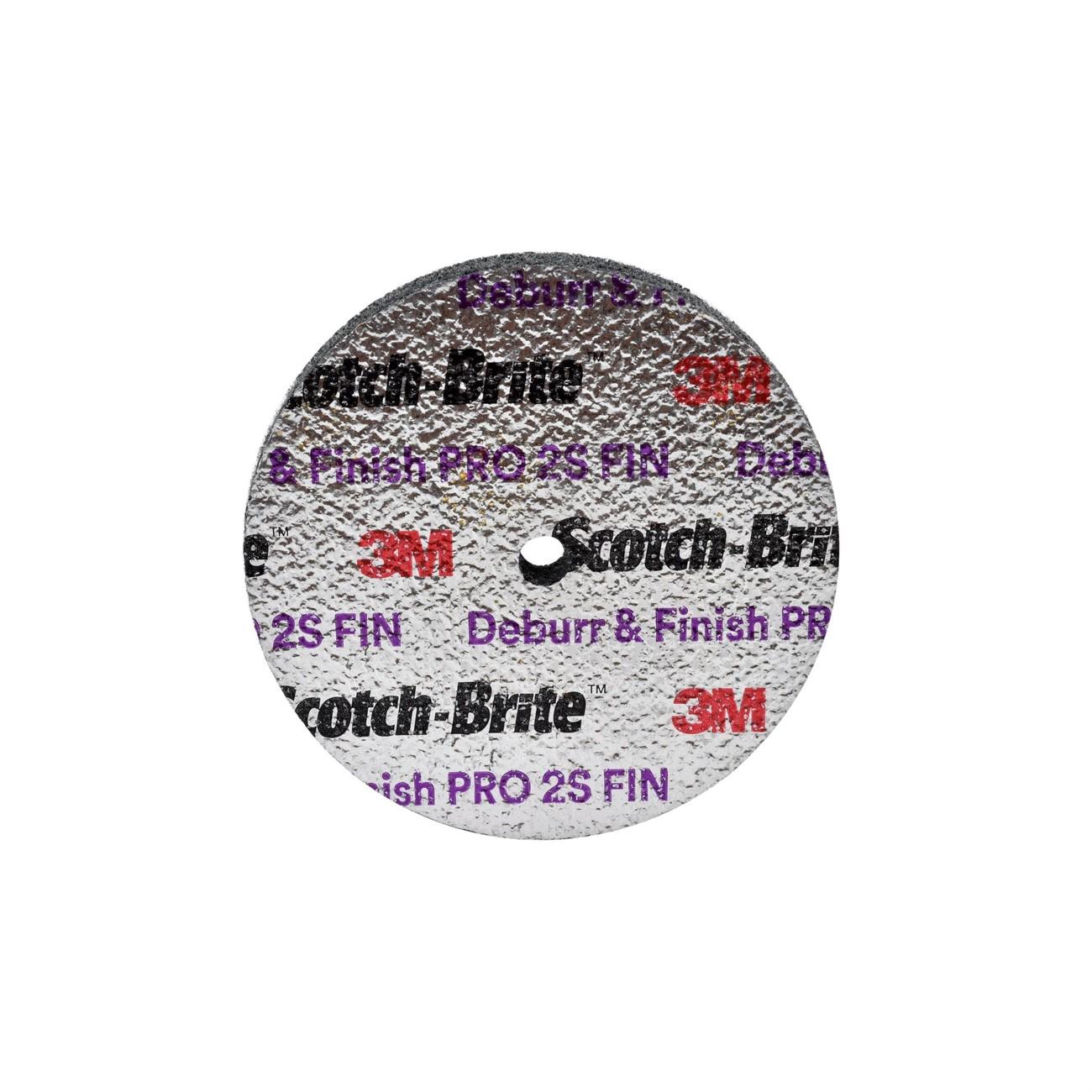

3M 7100143460 Unitized Deburr Finish Pro Wheel 6 Inch

Product Description

The 3M 7100143460 is a unitized nonwoven abrasive wheel engineered for metalworking applications that require deburring, surface finishing, and blending in a single tool. Built with silicon carbide abrasive grain and a unitized construction, the wheel maintains consistent cutting action throughout its service life. At 6 inches in diameter and 3.1 inches wide, it is sized for bench-mounted or automated robotic processing equipment. Industrial metalworking professionals and fabrication shops use this wheel when a single abrasive product needs to handle multiple surface preparation tasks without switching tooling.

This wheel is suited for moderate to heavy deburring on metal workpieces with complex or contoured geometry. The nonwoven construction allows swarf, dust, and debris to pass through the wheel structure, reducing loading and heat buildup during extended runs. Its conformability makes it a practical choice for robotic or automated finishing cells where consistent abrasive-to-part contact across irregular surfaces is required. It is also used as a cost-effective replacement for cartridge rolls, flap wheels, flap discs, and coated abrasive discs in general fabrication environments.

Key Features

• Unitized construction maintains abrasive strength and durability throughout the wheel life
• Silicon carbide grain provides fast, sharp cutting action for efficient burr removal
• Nonwoven open structure allows dust and debris to escape, minimizing loading
• Conformable design maintains contact with complex and contoured part geometries
• Handles deburring, finishing, and blending in a single wheel
• Economical alternative to cartridge rolls, flap wheels, flap discs, and coated discs

Compatibility

Designed for use on bench-mounted and robotic abrasive finishing equipment that accepts 6-inch diameter unitized wheels. Consult equipment manufacturer specifications to confirm arbor size and RPM rating before mounting.

Installation Notes

Mounting and operation should be performed by qualified personnel following the equipment manufacturer guidelines and applicable ANSI safety standards for abrasive wheels. Always power down and de-energize the spindle before mounting or removing the wheel. Verify the equipment maximum operating RPM does not exceed the wheel speed rating before use. Inspect the wheel for damage before each installation.

Technical Specifications

• Abrasive Type: Silicon Carbide
• Construction: Unitized Nonwoven
• Wheel Diameter: 6 inches
• Wheel Width: 3.1 inches
• Package Dimensions: 6.7 inches x 6.7 inches x 3.1 inches
• Weight: 1.734 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 4

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100143460
