3M 7100142494 Extended Die Grinder 1 Hp 18000 Rpm

Product Description

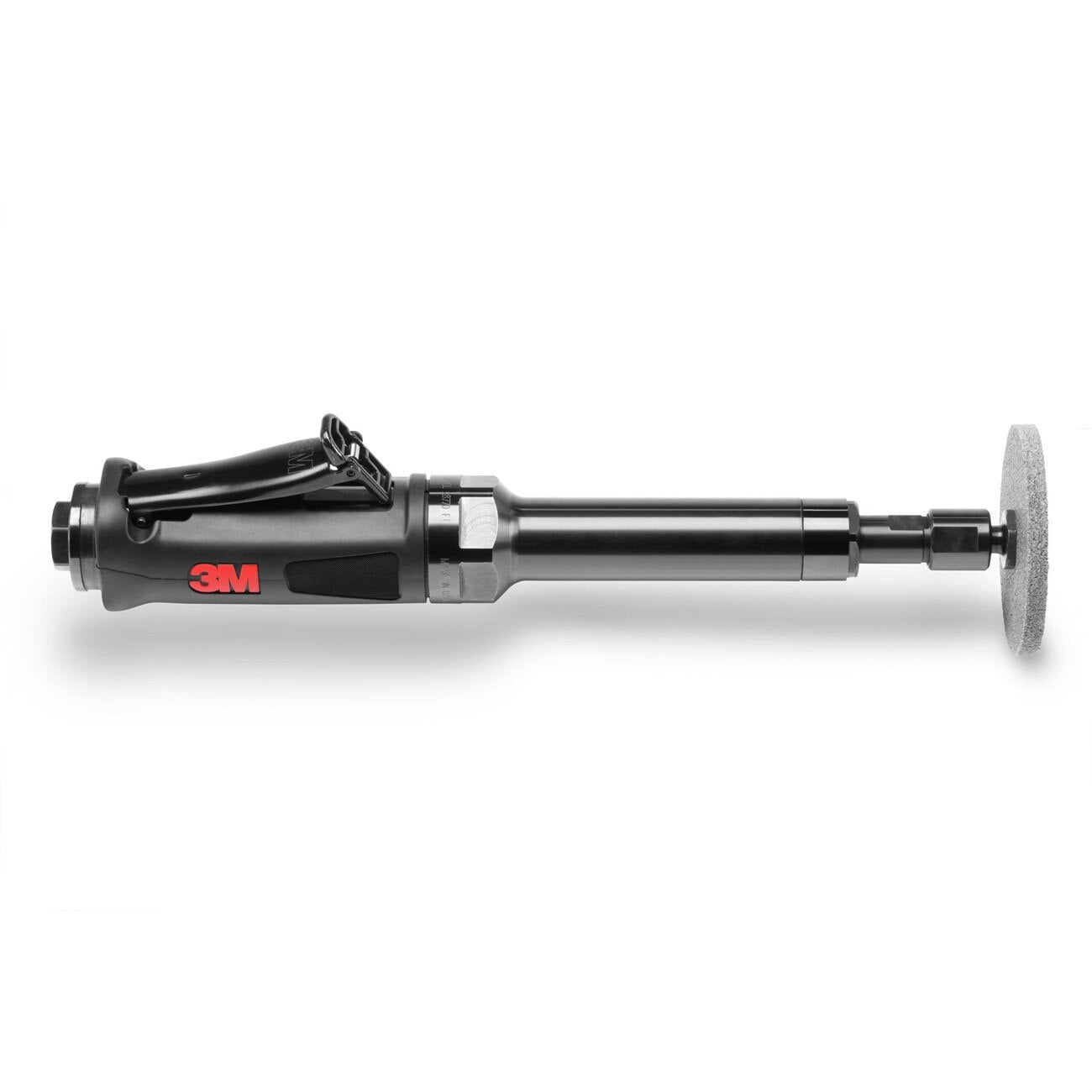

The 3M 7100142494 is a straight-shaft extended pneumatic die grinder built for heavy-duty material removal in confined and hard-to-reach areas. Its shaft is extended 3 inches beyond a standard die grinder profile, giving technicians additional reach without sacrificing control. The tool delivers 1 HP and spins at 18,000 RPM through a 1/4 inch collet, making it well suited for weld removal, stock removal, deburring, and surface preparation. 3M Gripping Material is integrated into the housing to help dampen vibration and maintain a secure hold during extended use. An adjustable directional exhaust allows the operator to redirect airflow away from the work area or the operator in any direction.

This grinder is designed for trade and industrial professionals who need consistent pneumatic cutting and grinding performance in tight spaces. Typical applications include fabrication shops, welding operations, automotive service, and maintenance environments where standard-length tools cannot reach the work surface. It is driven by compressed air, making it appropriate for shop environments with an existing air supply system.

Key Features

• 3 inch extended straight shaft for access to confined or recessed work areas
• 1 HP pneumatic motor running at 18,000 RPM for aggressive material removal
• 1/4 inch collet accepts a wide range of die grinder accessories and burrs
• 3M Gripping Material integrated into handle to reduce vibration and improve operator control
• Adjustable directional exhaust redirects airflow away from the operator or work surface

Compatibility

Designed as a direct-use pneumatic die grinder compatible with standard 1/4 inch shank rotary burrs, mounted points, and grinding accessories used in fabrication and metalworking applications.

Installation Notes

This tool is installed and operated by machinists, fabricators, and maintenance technicians working with compressed air systems. Before attaching or changing accessories, disconnect the air supply and verify the tool is fully depressurized. Ensure the air line pressure does not exceed the tool's rated input requirement and that the supply line is fitted with an appropriate in-line filter and lubricator. Wear appropriate PPE including eye protection and gloves during operation.

Technical Specifications

• Power: 1 HP
• Speed: 18,000 RPM
• Collet Size: 1/4 inch
• Shaft Extension: 3 inches
• Drive Type: Pneumatic
• Weight: 2.77 pounds
• UPC: 00051141287706

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100142494
