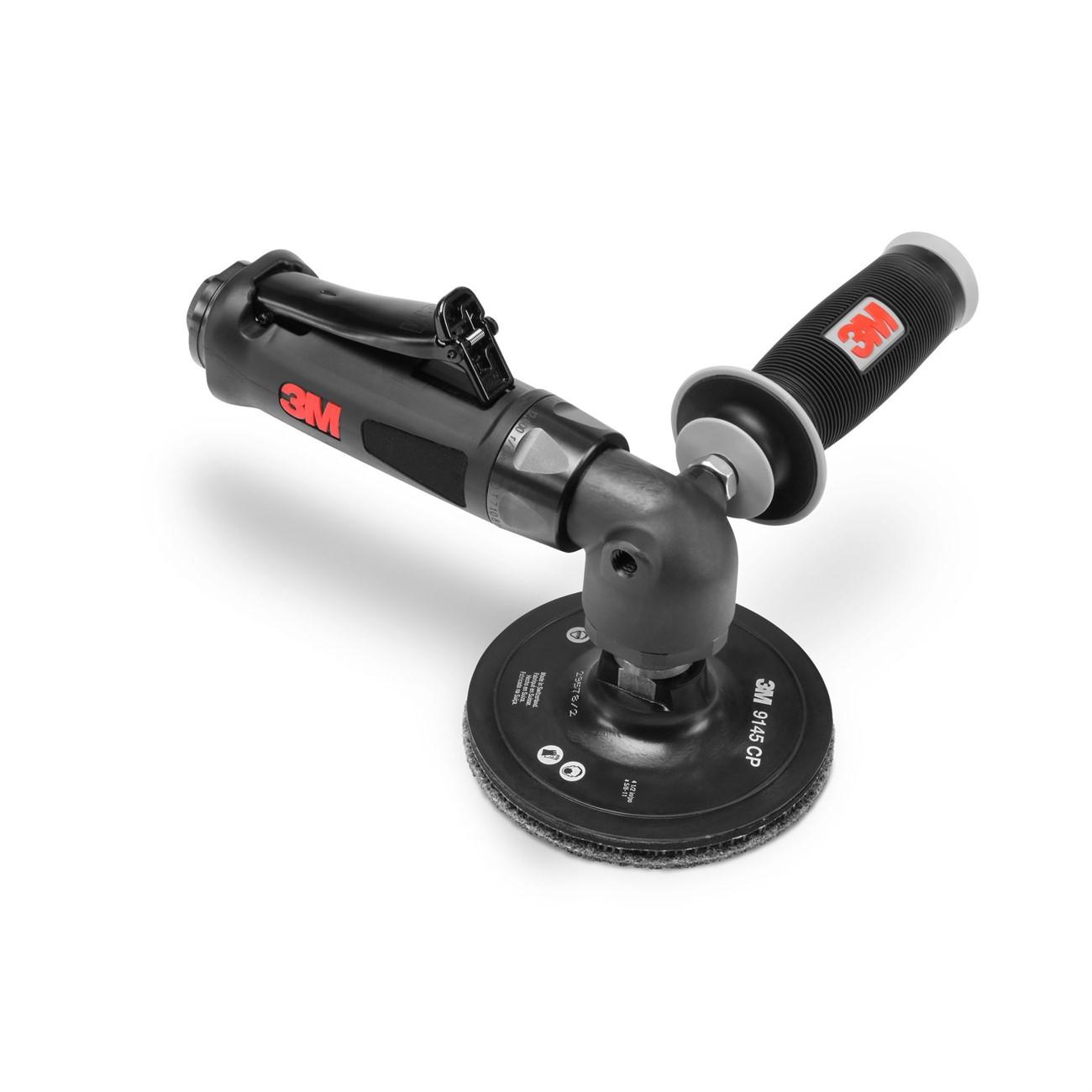

3M 7100142460 Disc Sander 4 to 5 Inches 1 Hp Right Angle

Product Description

The 3M 7100142460 is a right-angle pneumatic disc sander rated at 1 HP and designed for use with 4-inch, 4.5-inch, and 5-inch coated abrasive and surface conditioning discs. The tool accepts discs with a minimum operating speed (MOS) rating of 12,000 RPM or greater, making it suitable for aggressive material removal and surface prep work. The spindle uses a 5/8-11 external thread. A right-angle steel gear head with a grease fitting is built into the tool for extended gear service life. Rear exhaust routing keeps debris and air discharge away from the work surface. A removable side handle ships with the tool, and a 3/8-inch to 1/4-inch air inlet reducer is included for flexible air-line hookup.

This disc sander is suited for metal fabrication, weld prep, surface conditioning, and finishing tasks in industrial, commercial, and heavy-trade environments. It is commonly used by pipefitters, ironworkers, sheet metal tradespeople, and maintenance mechanics working on structural steel, stainless, and similar substrates. The ergonomic housing incorporates 3M gripping material molded directly into the tool body, improving control during extended use on vertical or overhead surfaces.

Key Features

• Compatible with 4-inch, 4.5-inch, and 5-inch coated and surface conditioning discs rated 12,000 RPM or greater
• 5/8-11 external spindle thread for standard disc attachment
• Right-angle steel gear head with grease fitting for extended gear life
• 3M gripping material molded into housing for improved operator control
• Rear exhaust design directs air and debris away from the work area
• Includes removable side handle and 3/8-inch to 1/4-inch air inlet reducer

Compatibility

Designed for use with 3M and compatible 4-inch, 4.5-inch, and 5-inch coated abrasive and surface conditioning disc products with a minimum operating speed rating of 12,000 RPM or greater.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tooling. Before mounting or changing discs, disconnect the air supply completely and verify the line is depressurized. Confirm the air supply pressure and CFM rating match the tool requirements before connecting. Always verify disc MOS rating meets or exceeds the tool free speed before use.

Technical Specifications

• Power Rating: 1 HP
• Compatible Disc Sizes: 4 inches, 4.5 inches, 5 inches
• Spindle Thread: 5/8-11 External
• Minimum Disc MOS Rating: 12,000 RPM
• Air Inlet: 3/8 inches (reducer to 1/4 inches included)
• Exhaust: Rear
• Weight: 3.1 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100142460
