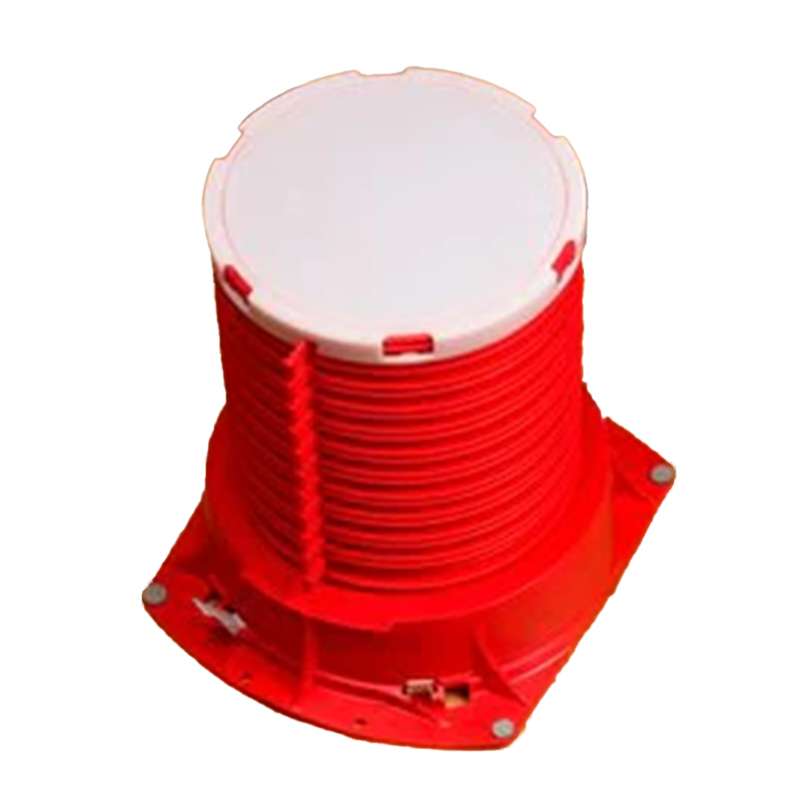

3M 7100138820 Fire Barrier Cast-In Device 3PCID for Plastic Pipes 3 Inch 12/Case

Product Description

3M Fire Barrier Cast-In Device 7100138820 is designed for firestopping through fire-rated concrete floor assemblies. This device provides a reliable option to core drilling. It allows installers to attach it directly to floor decking and pour concrete around it. After curing, penetrants can be routed through the device. The height can be adjusted in half-inch increments for flexibility.

• Eliminates core drilling holes in concrete
• Compatible with various non-metallic pipes
• Tested for firestop performance up to 3 hours

Product Highlights

This device simplifies the installation of firestopping for plastic pipes and reduces the need for additional materials.

Product Information

Standard Information

• Brand: 3M
• Country of Origin: US

Technical Specifications

• MPN: 7100138820
• Color: Red
• Size: 3 Inches
• Package Quantity: 12
• Testing Standard: ASTM E 814 (UL 1479)
• Fire Rating: 2- and 3-hour
• Temperature Rating: 1- and 3-hour
