3M 7100138819 Fire Barrier Cast-In Device Plastic Pipe in Red

Product Description

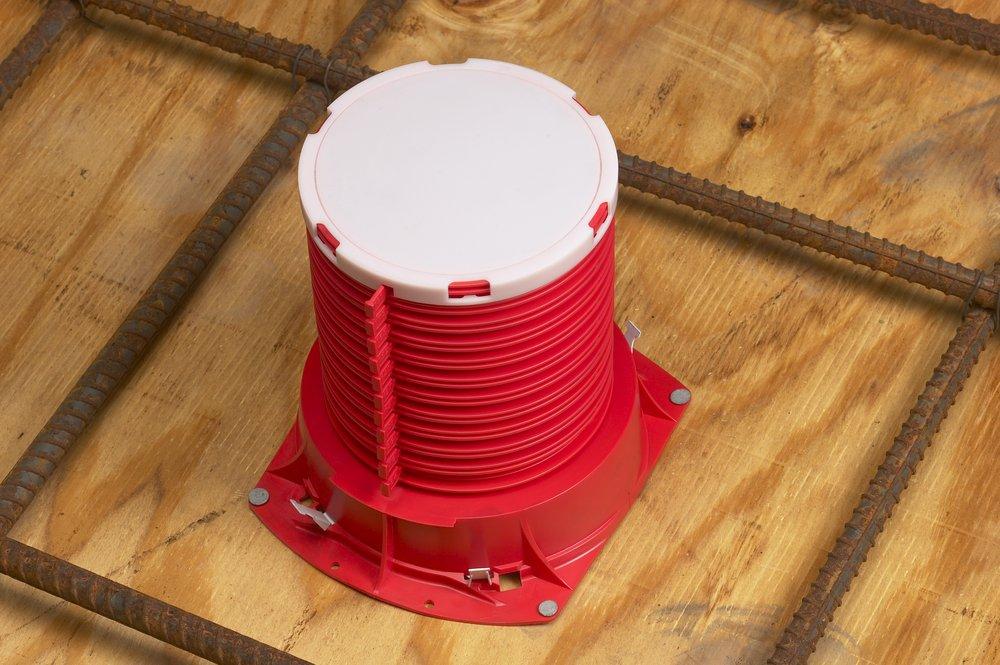

The 3M Fire Barrier Cast-In Device, MPN 7100138819, offers a reliable solution for firestopping through penetrations in concrete floor assemblies for plastic pipes. Its design eliminates the need for core drilling. Installers attach the device directly to floor decking before pouring concrete, allowing for easy routing of pipes after the concrete cures. Height adjustments are achievable in half-inch increments, accommodating different concrete thicknesses.

• Eliminates the need for core drilling in concrete.
• Designed for various non-metallic penetrants.
• Height adjustable for versatile installation.

Product Highlights

This fire barrier device provides up to three hours of fire protection according to ASTM standards. The rugged design can withstand construction site impacts and is easy to install.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100138819

Technical Specifications

• Material: Plastic
• Color: Red
• Fire Protection Rating: Up to 3 hours
• Height Adjustment: 2.5 inches to 8 inches
• Application: For non-metallic pipes including PVC, PEX, CPVC
• Installation: Directly to floor decking
• Package Quantity: 6
• Test Standards: ASTM E 814 (UL 1479)
