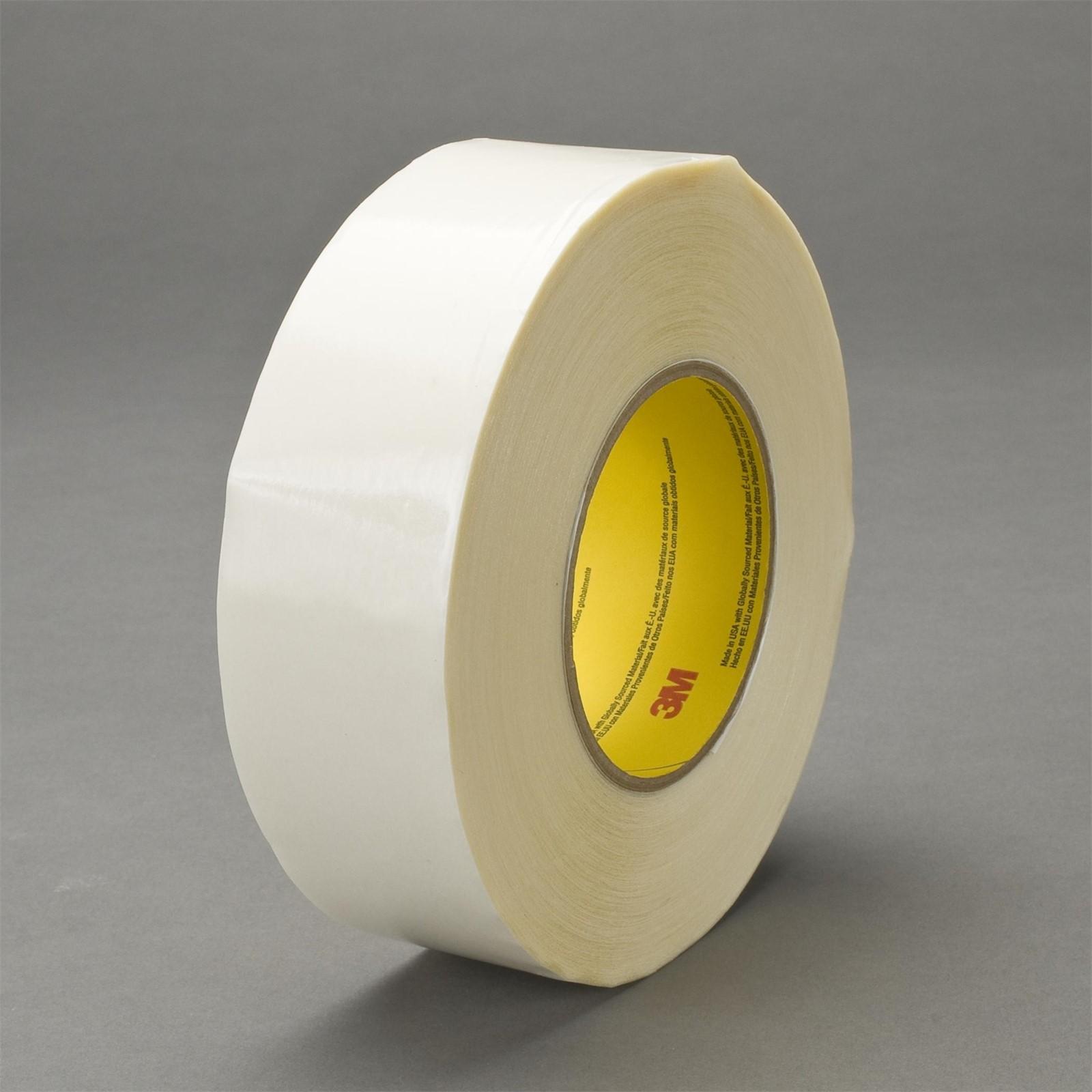

3M 7100138377 Double Coated Tape 1.9 in 55 M Roll

Product Description

The 3M 7100138377 is a double coated polyester film tape designed for high-demand splicing and bonding applications. It features a clear, hand-tearable polyester film carrier coated on both sides with a heavy-layer, super-aggressive pressure-sensitive acrylic adhesive and finished with a glassine release liner. The result is a tape that delivers exceptional peel and shear strength, making it well suited for automated and flying splice operations in demanding production environments. Licensed trade professionals and industrial maintenance technicians rely on this tape where reliable, high-tack bonding is required on both flat and irregular surfaces.

This tape is used in converting, printing, and packaging lines where flying splices and roll-change operations demand a high-tack, dimensionally stable double coated tape. It bonds effectively to most substrates, including low surface energy films, making it a practical choice for splicing applications across a range of materials. Its UV and heat resistance extend its usefulness in environments with elevated temperatures or light exposure. Each roll measures 1.9 inches wide and 55 meters long.

Key Features

• Ultra-high peel strength and excellent shear strength for rigorous splicing applications
• High tack formulation supports flying splice operations
• Bonds to most substrates including low surface energy films
• Excellent UV and heat resistance for varied operating conditions
• Conformable construction adheres to irregular and flat surfaces
• Double-sided adhesion improves dimensional stability and handling

Compatibility

Designed as a double coated splicing tape for use in converting, printing, and packaging applications where a pressure-sensitive acrylic adhesive on a polyester film carrier is required.

Installation Notes

Clean and dry the substrate surface thoroughly before application to ensure maximum adhesion. Apply firm, even pressure across the tape surface after placement to activate the pressure-sensitive adhesive. When integrating into automated splicing equipment, confirm the roll geometry and unwind tension are compatible with the machine specifications. Handle the glassine liner carefully during application to avoid contaminating the adhesive surface.

Technical Specifications

• Tape Width: 1.9 inches
• Tape Length: 55 meters per roll
• Carrier Material: Clear polyester film
• Adhesive Type: Pressure-sensitive acrylic, double coated
• Liner: Glassine release liner
• Unit of Measure: Roll
• Minimum Order Quantity: 24
• Package Weight: 1.65 pounds
• Package Length: 13.88 inches
• Package Width: 13.88 inches
• Package Height: 12.75 inches
• UPC: 00051115316661

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100138377
