3M 7100137857 Diamond Grade Conspicuity Marking Roll

Product Description

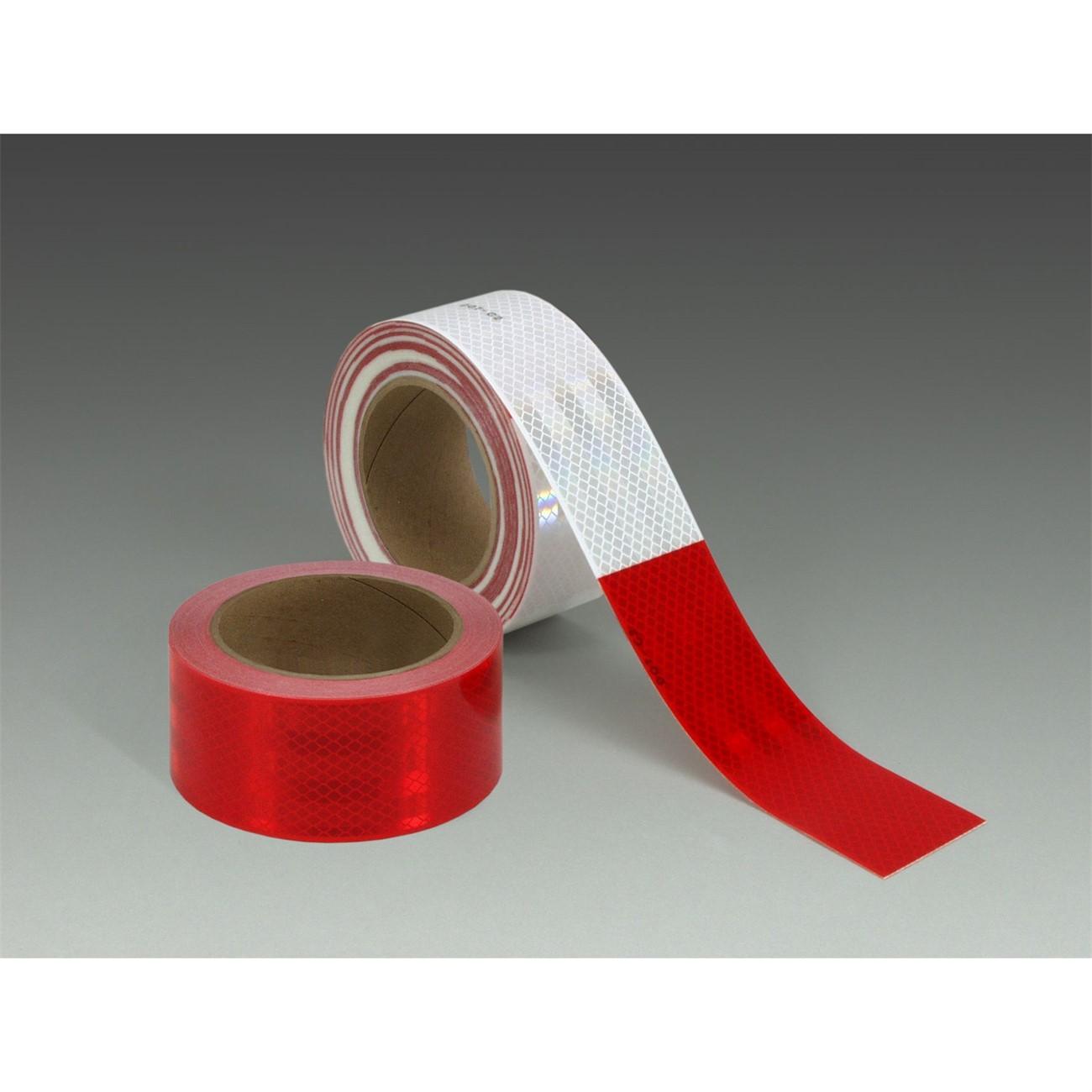

The 3M 7100137857 is a Diamond Grade Conspicuity Marking Roll in the 983-32 ES series, designed to improve the visibility and detection distance of large commercial vehicles. This roll features alternating 11-inch red and 7-inch white segments of highly reflective microprismatic sheeting with a pressure-sensitive adhesive backing. The microprismatic construction delivers strong retroreflectivity across a wide range of viewing angles and lighting conditions. At 3 inches wide and 150 feet long, a single roll provides substantial coverage for fleet marking applications. Installation requires no special tools beyond surface prep and a squeegee or roller.

This conspicuity tape is used on the sides and rear of trucks, trailers, and other large vehicles to meet visibility marking requirements. The alternating red and white pattern follows widely recognized standards for commercial vehicle conspicuity marking. It is applied by fleet operators, body shop technicians, and DOT compliance specialists during vehicle outfitting or marking refreshes. The pressure-sensitive adhesive bonds to clean, smooth metal surfaces without the need for separate adhesive products.

Key Features

• Alternating 11-inch red and 7-inch white reflective segments for conspicuity compliance
• Microprismatic sheeting construction for high retroreflectivity at wide angles
• Pressure-sensitive adhesive backing for direct application without additional adhesives
• 3 inches wide by 150 feet long roll provides extended coverage per unit
• Suited for trucks, trailers, and large commercial vehicles

Compatibility

Designed for application to trucks, trailers, and large vehicles where reflective conspicuity marking is required. Suitable for flat or slightly curved exterior metal surfaces.

Installation Notes

Applied by fleet technicians or body shop professionals using standard surface prep and hand tools. Clean and degrease the target surface thoroughly before application to ensure proper adhesive bond. Use a squeegee or roller to eliminate air pockets and promote full contact. Follow all applicable FMCSA and DOT regulations governing conspicuity marking placement and pattern requirements.

Technical Specifications

• Width: 3 inches
• Length: 150 feet
• Segment Pattern: Alternating 11-inch red and 7-inch white
• Construction: Microprismatic reflective sheeting
• Adhesive Type: Pressure-sensitive
• Weight: 4.4 pounds
• Unit of Measure: Roll
• UPC: 00051138678289

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100137857
