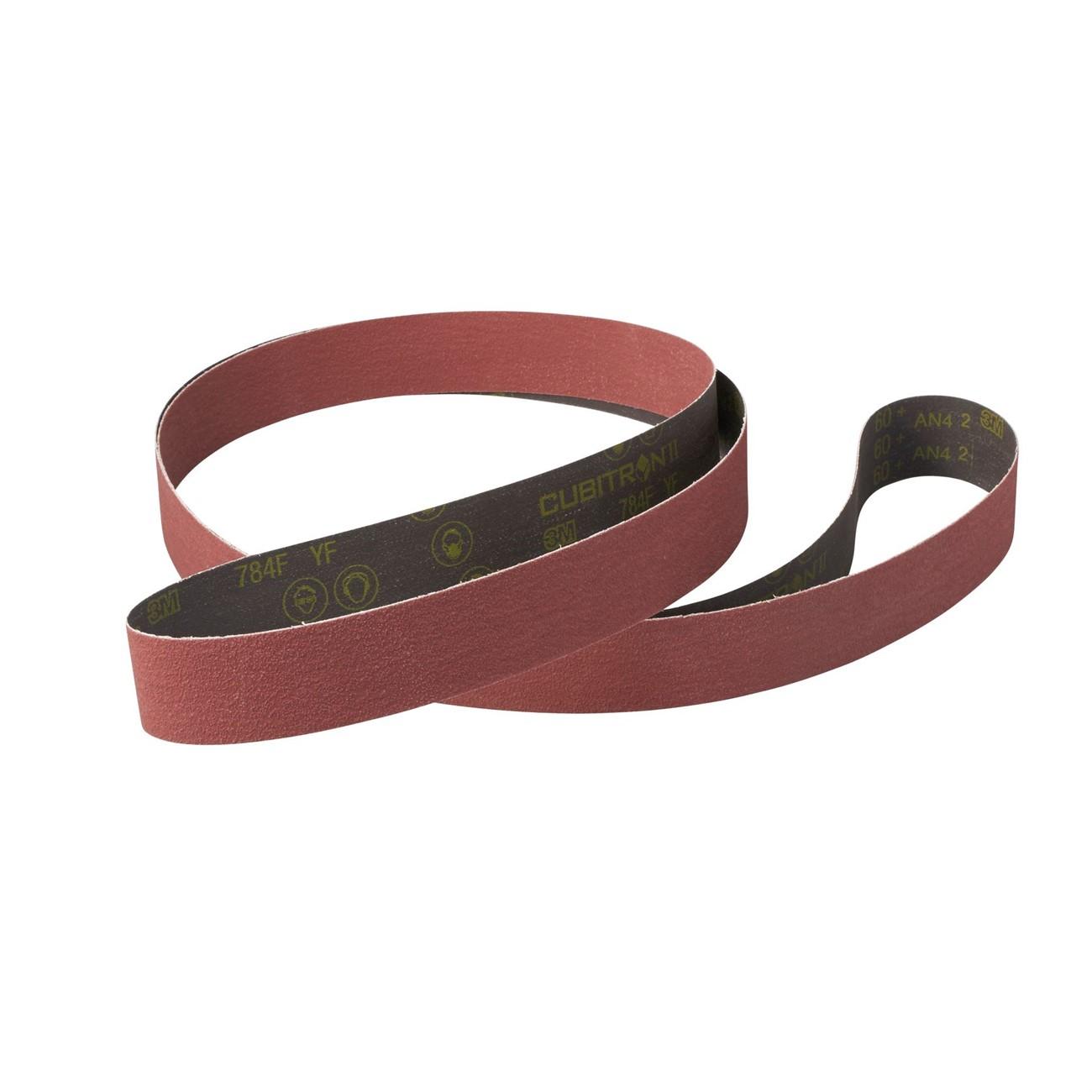

3M 7100134241 Cubitron Ii 784F Abrasive Belt 36 Grit

Product Description

The 3M 7100134241 is a Cubitron II 784F cloth abrasive belt designed for medium-pressure grinding and blending on metal surfaces. It uses 3M Precision-Shaped Grain technology, a proprietary blend of shaped ceramic and premium aluminum oxide minerals that delivers a faster, more consistent cut than conventional ceramic aluminum oxide belts. The belt measures 132 inches long and 2 inches wide with a 36 grit rating. A YF-weight polyester backing provides moderate flexibility for use on both straight and contoured workpieces. This belt is suited for use in industrial and fabrication environments by metalworking professionals and finishing technicians.

This abrasive belt is built for demanding grinding and blending applications on all metals, including heat-sensitive alloys. The waterproof backing and integrated grinding aid make it suitable for both wet and dry operations. It is well matched to robotic and pressure-assisted belt grinding systems, where reduced changeout frequency and consistent cut rate directly affect throughput. The Precision-Shaped Grain blend is engineered to maintain cutting performance longer than comparable aluminum oxide belts, reducing downtime between belt changes in high-volume production settings.

Key Features

• Precision-Shaped Grain blend of shaped ceramic and premium aluminum oxide for faster, consistent cuts
• YF-weight polyester backing provides moderate flexibility for straight and contoured surface work
• Waterproof backing supports wet and dry grinding applications on all metals
• Integrated grinding aid cools the abrasive zone on heat-sensitive alloys
• Durable resin bond resists heat-related deterioration to extend belt service life
• Designed to reduce changeouts in robotic and pressure-assisted grinding applications

Compatibility

Designed as an OEM-style replacement and production-grade abrasive belt for industrial belt grinding and blending equipment that accepts 132-inch by 2-inch belts.

Installation Notes

Installation should be performed by qualified metalworking or maintenance personnel with equipment fully de-energized and locked out before belt replacement. Confirm belt tracking direction arrows align with the drive wheel rotation before resuming operation. Follow equipment manufacturer guidelines for belt tension and tracking adjustment. Inspect the contact wheel or platen for wear before mounting a new belt.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 2 inches
• Grit: 36
• Abrasive Type: Precision-Shaped Grain ceramic and premium aluminum oxide blend
• Backing Material: YF-weight polyester cloth
• Bond Type: Resin
• Application: Wet and dry grinding and blending on all metals
• Weight: 38.203 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100134241
