3M 7100134123 Intumescent Putty Pad 7x7 Firestop

Product Description

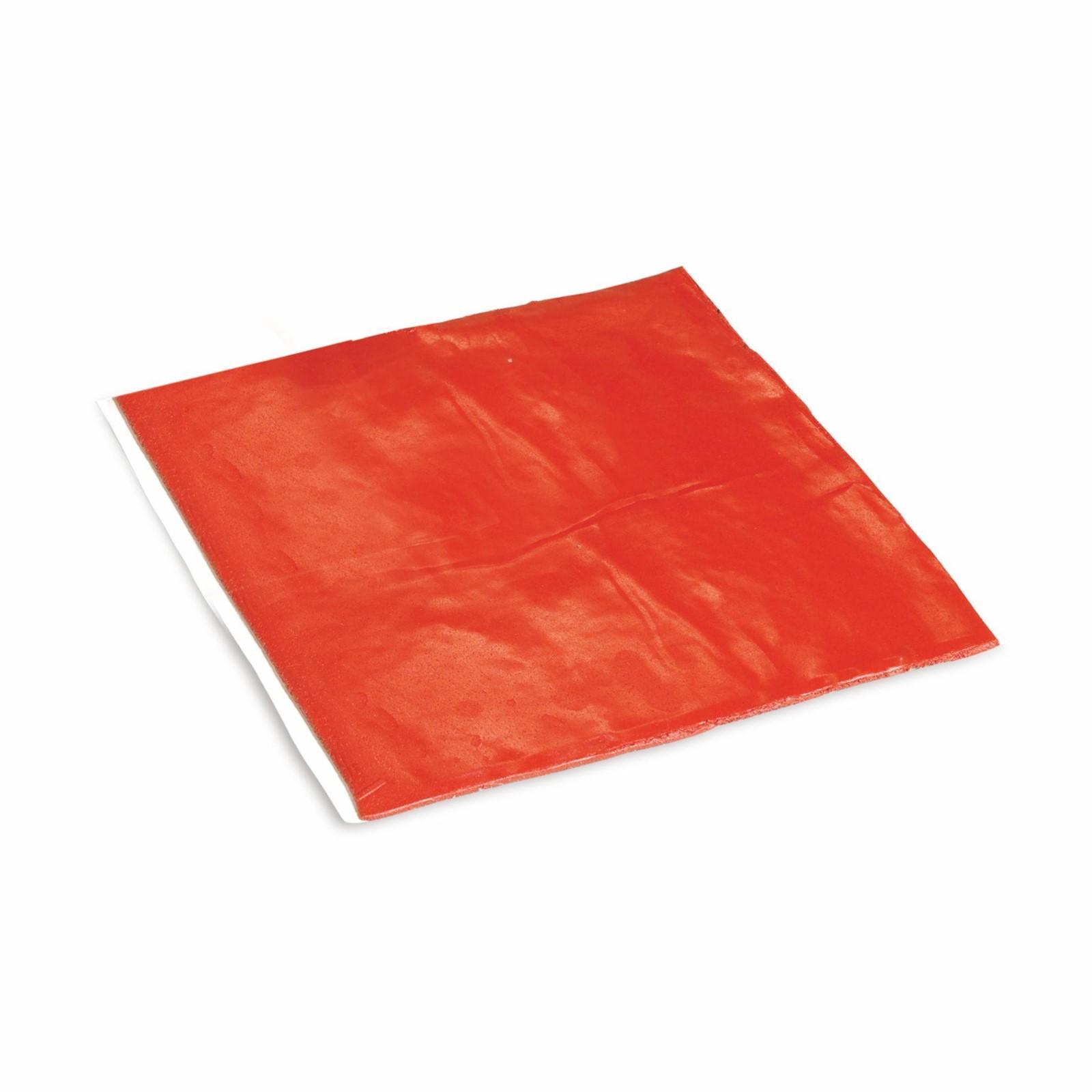

The 3M 7100134123 is a one-part, ready-to-use intumescent moldable putty pad designed to firestop metallic and non-metallic electrical boxes, wall openings, and through-penetrations in fire-rated assemblies. Each pad measures 7 inches x 7 inches and is approximately 0.1 inches (2.5 mm) thick. The dark red pad is re-enterable, meaning it can be removed and reinstalled without destroying the firestop seal. It provides up to 4 hours of fire protection and also acts as a draft and cold smoke seal for assemblies requiring an L-Rating. Licensed electricians and fire-stop contractors are the primary installers of this product.

This putty pad is suited for residential and commercial fire-rated wall assemblies where electrical boxes penetrate the barrier. It is applied directly around electrical boxes seated in wall openings to prevent the spread of fire, smoke, and noxious gas through the penetration. The pad also provides airborne sound reduction characteristics, making it applicable in assemblies that require an STC rating. It meets key life safety code requirements including the International Building Code (IBC), NFPA 5000, NEC (NFPA 70), NFPA 101, and NBC Canada Building Codes.

Key Features

• Provides up to 4 hours of fire protection in rated wall assemblies
• Re-enterable design allows removal and reinstallation without losing firestop integrity
• Acts as a draft and cold smoke seal meeting L-Rating requirements
• Airborne sound reduction properties support STC-rated assemblies
• Meets IBC, NFPA 5000, NEC (NFPA 70), NFPA 101, and NBC Canada code requirements
• Low-VOC formulation meets the intent of LEED VOC guidelines

Compatibility

Designed for use with metallic and non-metallic electrical boxes installed in fire-rated wall assemblies. Suitable for through-penetration firestop applications in both residential and commercial construction where fire-rated barriers are required.

Installation Notes

Installation should be performed by a licensed electrician or qualified firestop contractor in accordance with the applicable fire-rated assembly listing. De-energize all circuits in the electrical box before beginning any firestop work. Follow the specific UL-listed or FM-approved assembly instructions for the wall system being protected. Consult NEC (NFPA 70) and the applicable building code for jurisdiction-specific firestop requirements.

Technical Specifications

• Pad Dimensions: 7 inches x 7 inches
• Pad Thickness: 0.1 inches (2.5 mm)
• Fire Protection Rating: Up to 4 hours
• Color: Dark red
• Configuration: One-part, ready-to-use
• Weight: 0.34 pounds
• Certifications: IBC, NFPA 5000, NEC (NFPA 70), NFPA 101, NBC Canada
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100134123
