Product Description

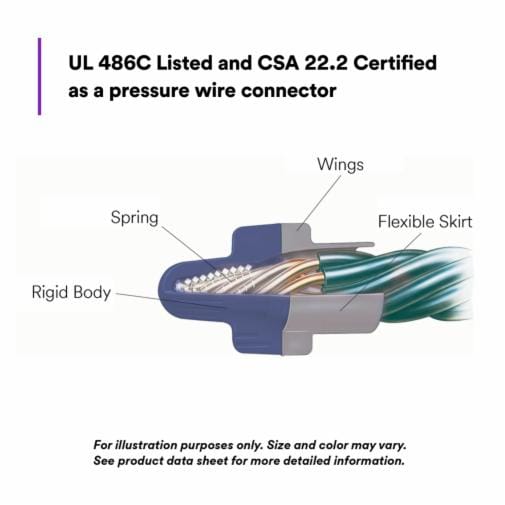

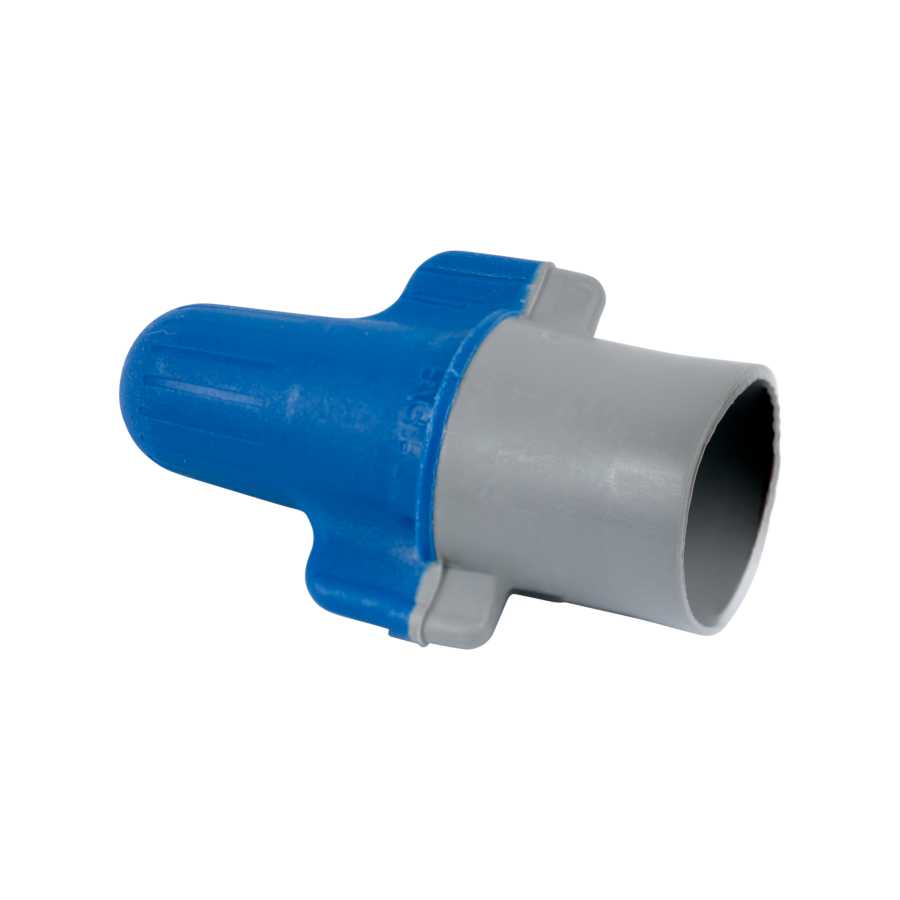

The 3M 7100127167 Performance Plus Wire Connectors B/G+ are designed for a wire range between 4 #14 to 6 #10 AWG. These connectors feature a flexible spring for expansion and a strong grip. Their expanded cable range allows three Performance Plus connectors to replace eight standard connectors. The flexible skirt helps reduce copper exposure.
- Strong bite for a secure, reliable connection

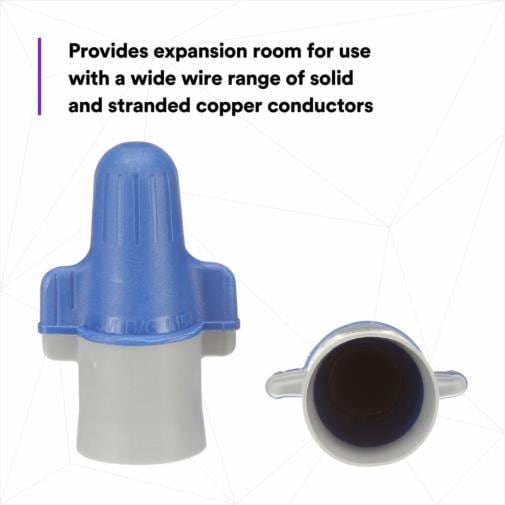

- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Product Highlights
The connectors simplify splicing and provide a secure termination without stripping or twisting wires. UL Listed for 600 V on copper wire.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 7100127167
-
Country of Origin: USA
Technical Specifications
-
Brands: Performance Plus
-
Conductor Sizes (Imperial): 14 - 6 AWG
-
Connection Type: Twist On
-
Connector Style: Twist On
-
Flame Retardant: Yes
-
Grease Filling Against Corrosion: No
-
Insulation Color: Blue/Gray
-
Insulation Material: Polypropylene & Thermoplastic Elastomer
-
Maximum Conductor Size (Imperial): 6 AWG
-
Maximum Conductor Size (Metric): 16 mm
-
Maximum Operating Temperature (Celsius): 105 °C
-
Maximum Operating Temperature (Fahrenheit): 221 °F
-
Maximum Voltage Rating: 600 V (1000 V in signs, lighting fixtures and luminaries)
-
Minimum Conductor Size (Imperial): 14 AWG
-
Minimum Conductor Size (Metric): 2.5 mm
-
Product Color: Blue, Gray
-
Product Type: Connector
-
Specifications Met: CSA, UL Listed
-
Voltage: 750 V
-
Contact Material: Spring Steel
-
Material: Plastic
-
Max Operating Temperature: 105.0 degrees C
-
Min Operating Temperature: 0.0 degrees C
-
Temperature Rating: 105 degrees C
-
Type: Flame Retardant
-
Brand: 3M
-
Sub Brand: Performance Plus
-
Diameter: 1.12 Inch
-
Length: 1.79 Inch
-
Applications: For All Kinds of Jobs From Industrial and Residential Construction, to Automotive, Marine and Appliance Applications
-
Voltage Range: 600V AC
-
Standards: UL, CSA
-
Min wire range: 4#14
-
Max wire range: 5#10
-
Conductor Size: 14-6 AWG
