3M 7100127165 Performance Plus Wire Connector T/r+

Product Description

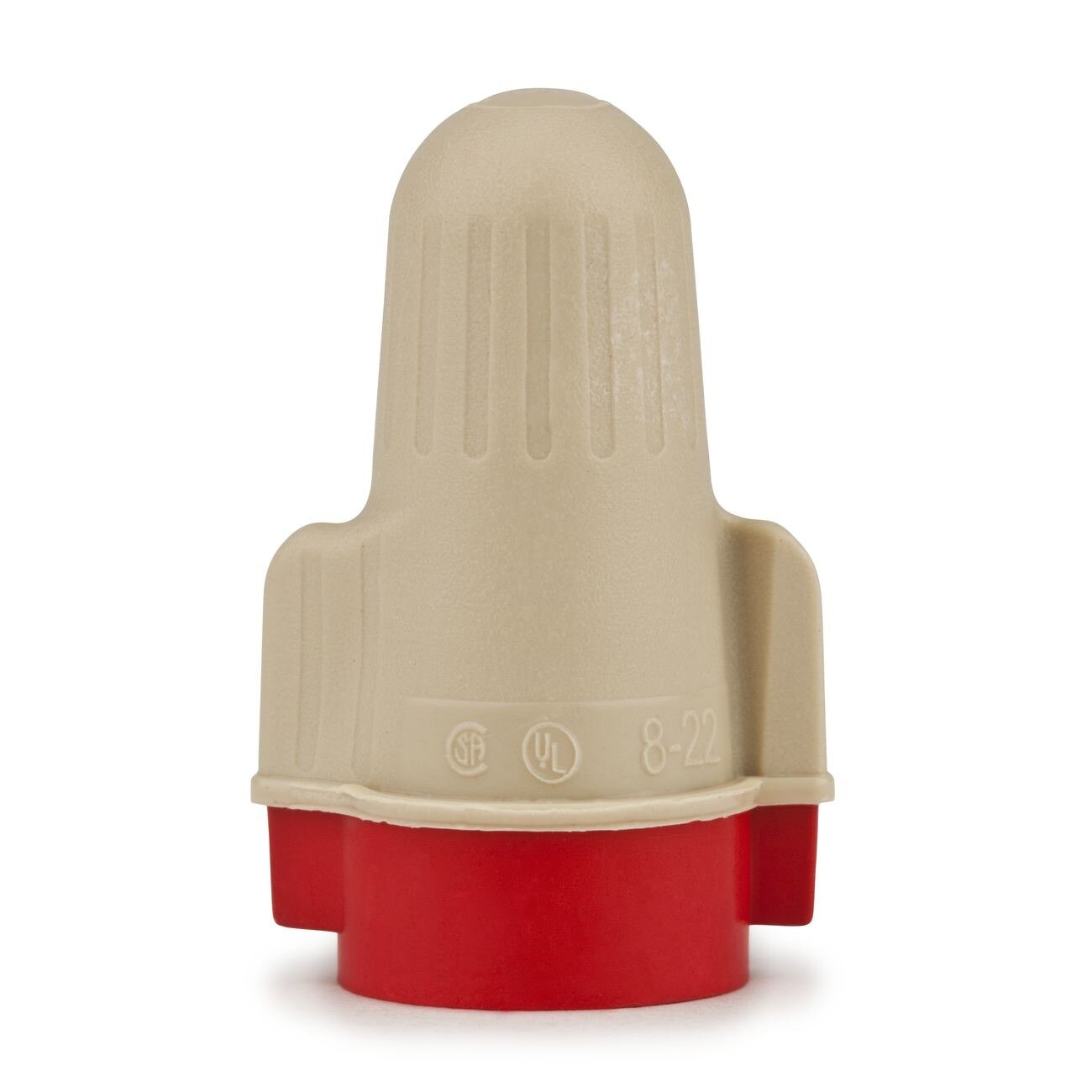

The 3M 7100127165 is a Performance Plus Wire Connector in the T/R+ (tan/red) configuration, covering a wire range of 2 x 18 AWG to 5 x 12 AWG. It is designed for making secure, insulated wire terminations in electrical wiring applications across residential, commercial, and light industrial settings. The connector features a uniquely flexible spring with generous expansion room and a strong bite to lock conductors firmly in place. A flexible skirt covers the connection point to minimize copper exposure and reduce shock risk. Licensed electricians and qualified electrical workers are the primary installers of this connector type.

The T/R+ variant of the 3M Performance Plus line is suited for higher-conductor-count terminations, accommodating up to five 12 AWG conductors. This makes it well-suited for multi-wire branch circuit connections, junction box splices, and device pigtailing in panel and rough-in work. The increased wire range means fewer connector sizes are needed on the job site, reducing the chance of using an undersized connector. The product is sold in a pouch format with a minimum quantity of 10 pieces per pack.

Key Features

• T/R+ wire range: 2 x 18 AWG to 5 x 12 AWG copper conductors
• Flexible spring design provides strong mechanical bite and secure conductor retention
• Flexible skirt minimizes copper exposure for enhanced safety
• UL Listed for 600 volts on copper wire
• Broad wire range reduces the number of connector sizes needed on a job
• Sold in pouch packaging, minimum quantity 10 per pack

Compatibility

Designed for use with copper wire only. Rated for solid and stranded copper conductors in the T/R+ wire range of 2 x 18 AWG to 5 x 12 AWG. Not rated for aluminum conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any wire connections. Strip conductors to the appropriate length per connector instructions, insert all conductors simultaneously, and twist the connector clockwise until snug with no conductor movement. Do not use these connectors on aluminum wire or on conductors outside the rated AWG range.

Technical Specifications

• Wire Range: 2 x 18 AWG to 5 x 12 AWG copper
• Voltage Rating: 600 volts
• Configuration: T/R+ (tan/red)
• Package Weight: 0.681 pounds
• Package Length: 6.4 inches
• Package Width: 3 inches
• Package Height: 8.4 inches
• Unit of Measure: Pack
• Minimum Quantity: 10 per pack
• Listing: UL Listed

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100127165
