3M 7100123110 Scotchcast Inline Resin Power Cable Splice kit 82-A2N, 5 kV, 2-3/0 AWG, 10 Case

Product Description

3M Scotchcast Inline Resin Power Cable Splice Kit is suitable for splicing unshielded cables. It is designed for use with single conductor cables rated for five kV and multi-conductor cables rated for one kV.

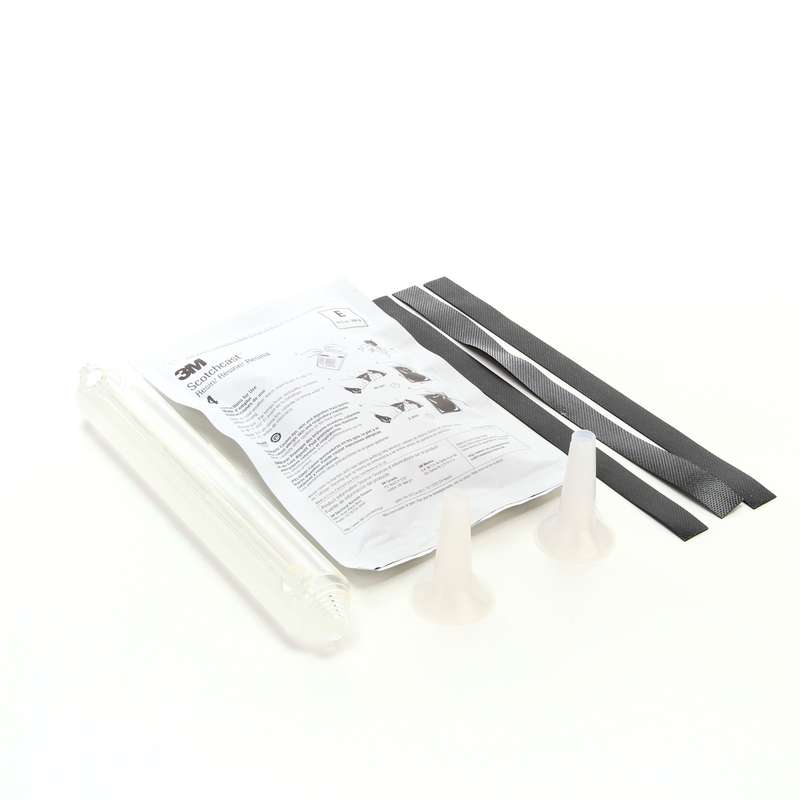

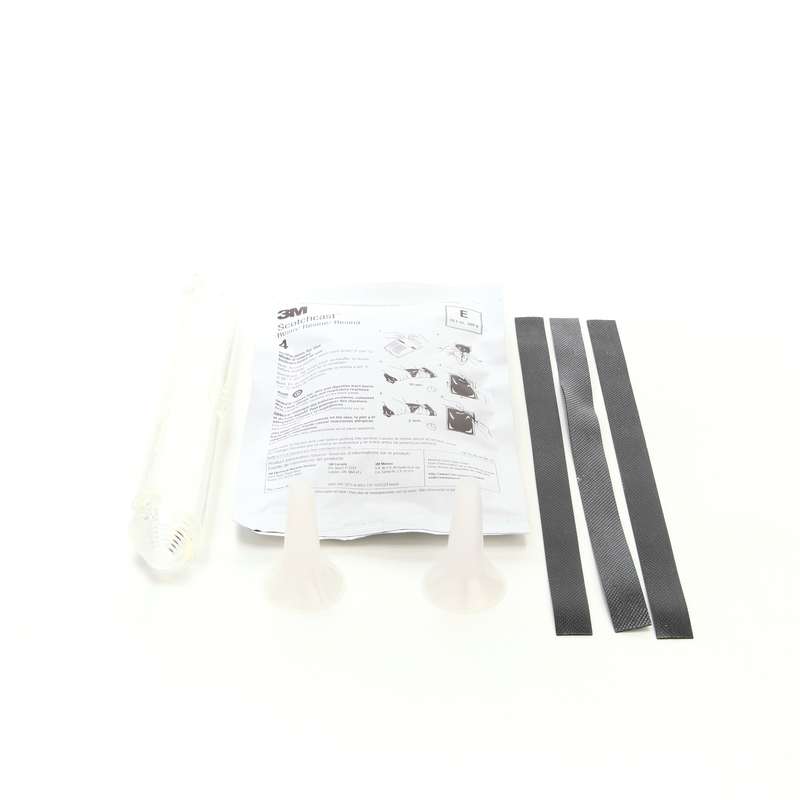

This kit includes a mold body, pouring spouts, 23 electrical tapes, and No. 4 resin. It is ideal for weather-exposed and direct burial applications.

• Insulates and seals unshielded cables
• Splices wet or dry cables
• UL Listed and RoHS compliant

Product Highlights

This splice kit is effective for both single and multiple conductor cables, catering to various electrical needs in demanding environments.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100123110

Technical Specifications

• Color: Black
• Material: Epoxy
• Voltage Rating: 5 kV for single conductor, 1 kV for multi-conductors
• Conductor Size: 2 to 3/0 AWG
• Cable Diameter: 5/8 to 1 inch
• Splice Length: 6 inches
• Package Quantity: 10 Kits
