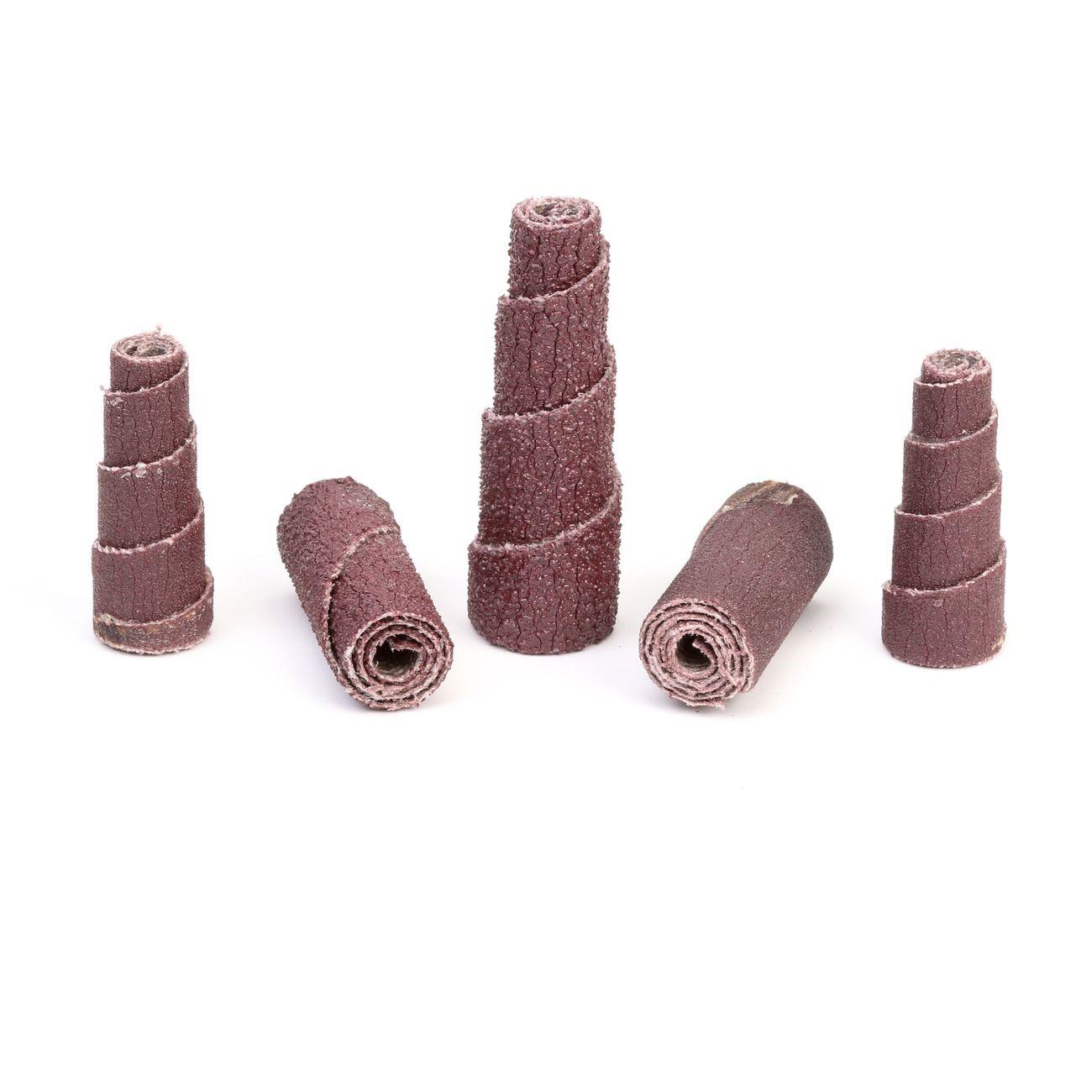

3M 7100118793 Cartridge Roll P100 X-weight 3/4 X 1-1/2 in

Product Description

The 3M 7100118793 is an aluminum oxide cartridge roll designed for precision grinding, deburring, and finishing on metal and other hard surfaces. Built on an X-weight cloth backing, it delivers the durability needed for demanding material removal tasks in fabrication, maintenance, and repair environments. The abrasive grain is resin bonded, providing heat resistance that extends roll life during high-friction applications. At a P100 grit rating, this roll strikes a balance between stock removal and surface refinement, making it a practical choice for intermediate finishing steps. Licensed machinists, metalworkers, and maintenance technicians are the primary users of this consumable abrasive.

This cartridge roll is suited for use with mandrel-mounted rotary tools, die grinders, and similar power tools in both shop and field settings. It is commonly used on inside diameters, contoured surfaces, and tight-geometry areas where flat abrasive media cannot reach. Applications include weld blending, port matching, and bore finishing in metal fabrication and industrial maintenance. The 0.75-inch width and 1.5-inch length make it well suited for small-bore and confined-area work.

Key Features

• Aluminum oxide abrasive grain for consistent cut and wear on ferrous and non-ferrous metals
• X-weight cloth backing provides flexibility and resistance to tearing under load
• Resin bond construction improves heat resistance and extends abrasive life
• P100 grit for intermediate stock removal and surface preparation
• Compact 0.75 inches x 1.5 inches x 0.1875 inches bore size for small-diameter and contoured surfaces

Compatibility

Designed for use with standard mandrel-mounted rotary tools and die grinders that accept 0.1875-inch bore cartridge rolls. No specific model compatibility was provided in the product data.

Installation Notes

Cartridge rolls are installed by threading the roll onto a matching tapered or straight mandrel before mounting in the rotary tool. Always confirm the tool RPM rating does not exceed the abrasive roll maximum rated speed before operation. Wear appropriate eye and face protection, and inspect the roll for damage before each use. Follow shop safety protocols and applicable ANSI abrasive product safety standards during use and storage.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Backing Type: X-Weight Cloth
• Bond Type: Resin
• Grit: P100
• Width: 0.75 inches
• Length: 1.5 inches
• Bore Diameter: 0.1875 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• UPC: 00051144971640

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100118793
