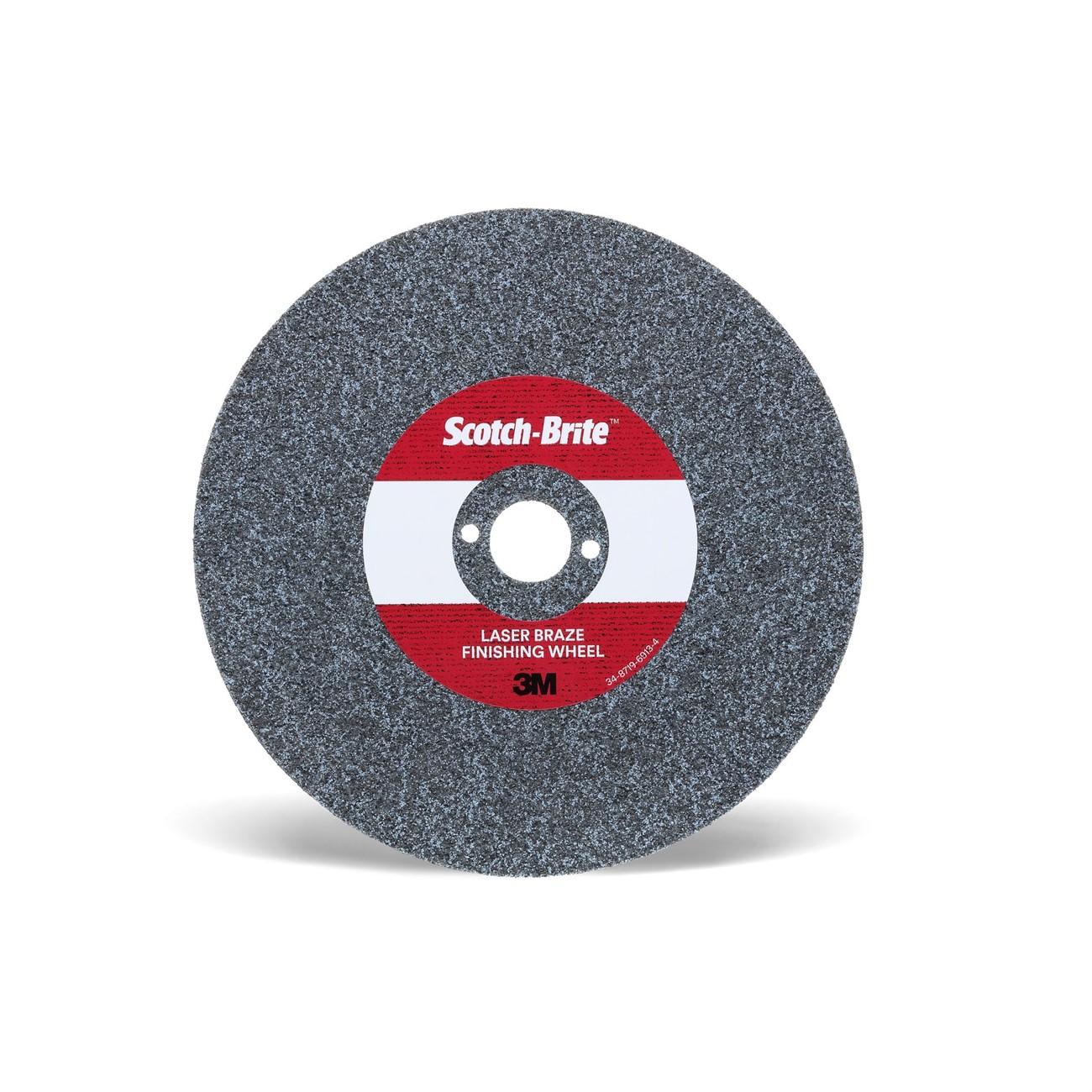

3M 7100115834 Scotch-brite Laser Braze Unitized Wheel 8 Inch

Product Description

The 3M 7100115834 Scotch-Brite Laser Braze LB-UW is a unitized non-woven finishing wheel engineered to blend and finish imperfections produced by laser brazing in automotive manufacturing environments. The wheel combines Scotch-Brite open-web non-woven material with 3M Precision Shaped Grain abrasive for a faster cut rate and extended service life compared to conventional finishing wheels. At 8 inches in diameter and 2.63 inches wide, it handles Silicon Bronze and similar metals used in automotive body assembly. This product is installed and operated by metal finishing technicians and production line abrasives specialists.

This wheel is purpose-built for laser brazing finishing applications common in automotive production. It is used to remove weld seam irregularities and blend surfaces on Silicon Bronze joints, producing a smooth finish ready for further surface treatment. The open-web construction prevents loading during extended use, reducing downtime for wheel changes. Its flexible non-woven construction minimizes the need for machine recalibration between passes, making it well-suited for high-volume production line use.

Key Features

• Unitized non-woven construction resists loading and extends effective service life
• 3M Precision Shaped Grain abrasive delivers a faster cut rate and consistent smooth finish
• Flexible Scotch-Brite material reduces need for recalibration and machine adjustments
• Designed specifically for blending Silicon Bronze and other metals after laser brazing
• 8-inch diameter suits standard automated and handheld finishing equipment setups

Compatibility

Designed as an OEM-style finishing wheel for laser brazing applications on Silicon Bronze and similar metals in automotive production environments.

Installation Notes

Installation and operation should be performed by qualified metal finishing technicians familiar with abrasive wheel safety standards. Always power down and de-energize finishing equipment before mounting or changing wheels. Verify that the wheel's rated speed matches the operating speed of the machine before use. Follow applicable ANSI abrasive wheel safety standards and the equipment manufacturer's mounting instructions.

Technical Specifications

• Diameter: 8 inches
• Width: 2.63 inches
• Package Dimensions: 8.63 x 8.63 x 2.63 inches
• Weight: 3.17 pounds
• Wheel Type: Unitized
• Abrasive Type: Precision Shaped Grain
• Construction: Non-woven open web
• Application: Laser braze finishing, Silicon Bronze
• UPC: 076308457551
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100115834
