3M 7100114441 Convolute Deburring Wheel 6 Inch Silicon Carbide

Product Description

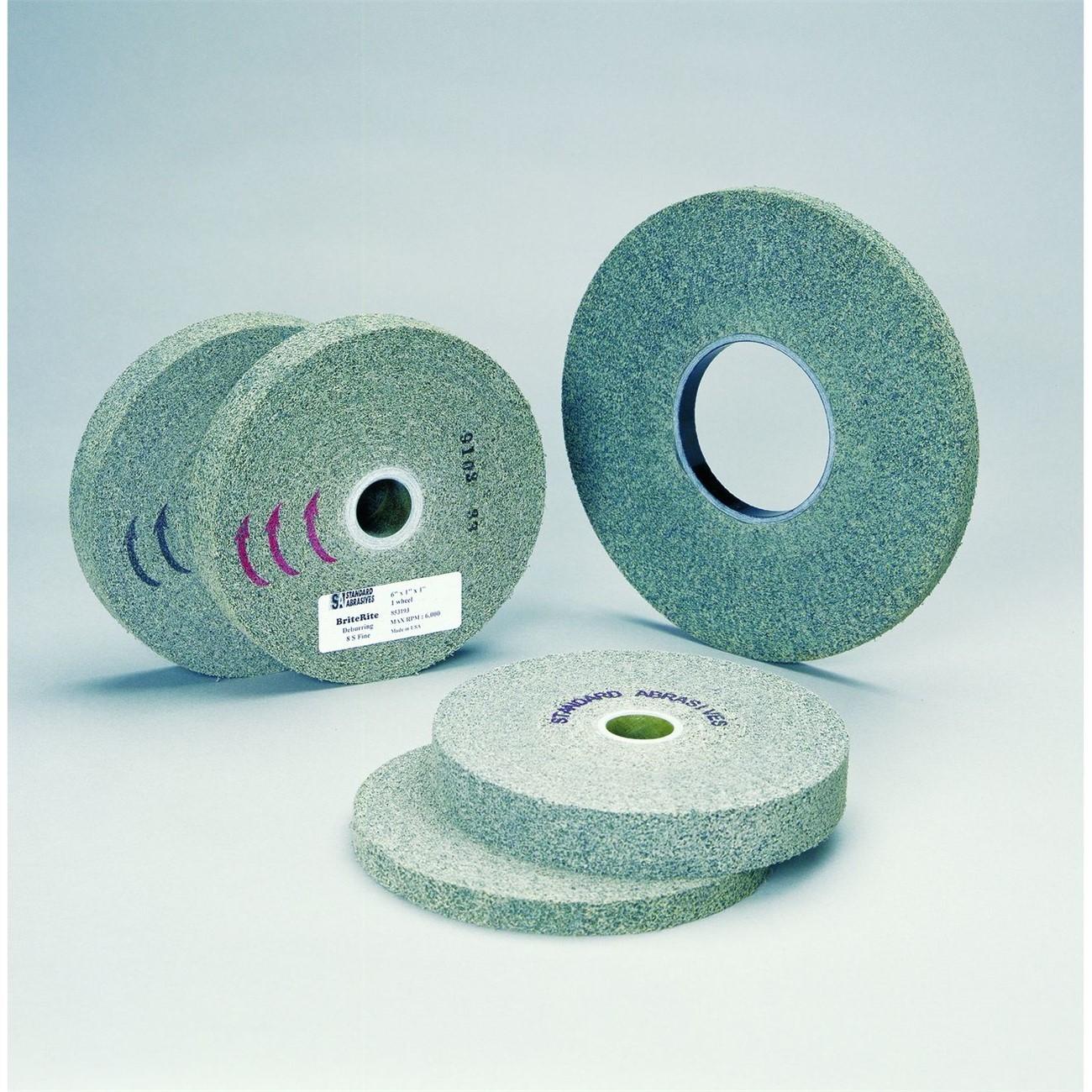

The 3M 7100114441 is a convolute deburring wheel designed for medium to heavy precision deburring, blending, and polishing of machined and fabricated parts. The wheel binds an open web of abrasive grain and resin to a rigid fiberglass core, producing a strong, dense structure that holds up under load. Fine-grade silicon carbide mineral provides sharp cutting action and leaves smooth surface finishes. At 6 inches in diameter and weighing 1.85 pounds, this wheel is sized for bench or pedestal grinder setups used in metalworking shops and manufacturing maintenance.

This deburring wheel is suited for production and maintenance environments where parts require consistent edge treatment with close tolerances. It performs well on aluminum die cast parts, removing flashing without gouging adjacent surfaces. The conformable open-web construction allows the wheel to follow irregular part geometry, making it effective on contoured or complex profiles. Machinists, toolroom technicians, and maintenance mechanics working in light to heavy industrial settings are the primary installers and operators of this wheel.

Key Features

• Fine-grade silicon carbide mineral delivers sharp cutting action and smooth surface finishes
• Open web construction resists loading, extending abrasive service life
• Medium to hard density structure stands up to part edges and withstands aggressive deburring
• Conformable wheel follows part geometry to reduce gouging on complex profiles
• Fiberglass core provides strength and dimensional stability under load
• Effective on aluminum die cast flashing and other close-tolerance part applications

Compatibility

Designed as an OEM-style convolute deburring wheel for use on bench grinders and pedestal grinders configured for abrasive wheel operation in metalworking and industrial maintenance applications.

Installation Notes

Mounting of abrasive wheels must be performed by qualified personnel following applicable ANSI B11 and OSHA abrasive wheel safety standards. Verify the grinder spindle speed does not exceed the maximum rated RPM of the wheel before mounting. Inspect the wheel for cracks or damage before each use and never operate a damaged wheel. Wear appropriate face and eye protection during operation.

Technical Specifications

• Wheel Diameter: 6 inches
• Abrasive Type: Silicon Carbide
• Wheel Construction: Convolute Open Web
• Core Material: Fiberglass
• Density: Medium to Hard
• Weight: 1.85 pounds
• Package Dimensions: 6.38 x 6.38 x 3.69 inches
• Sold As: Each
• Minimum Order Quantity: 4

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100114441
