3M 7100106737 Roloc Disc Pad Ts Tsm Medium 4 in

Product Description

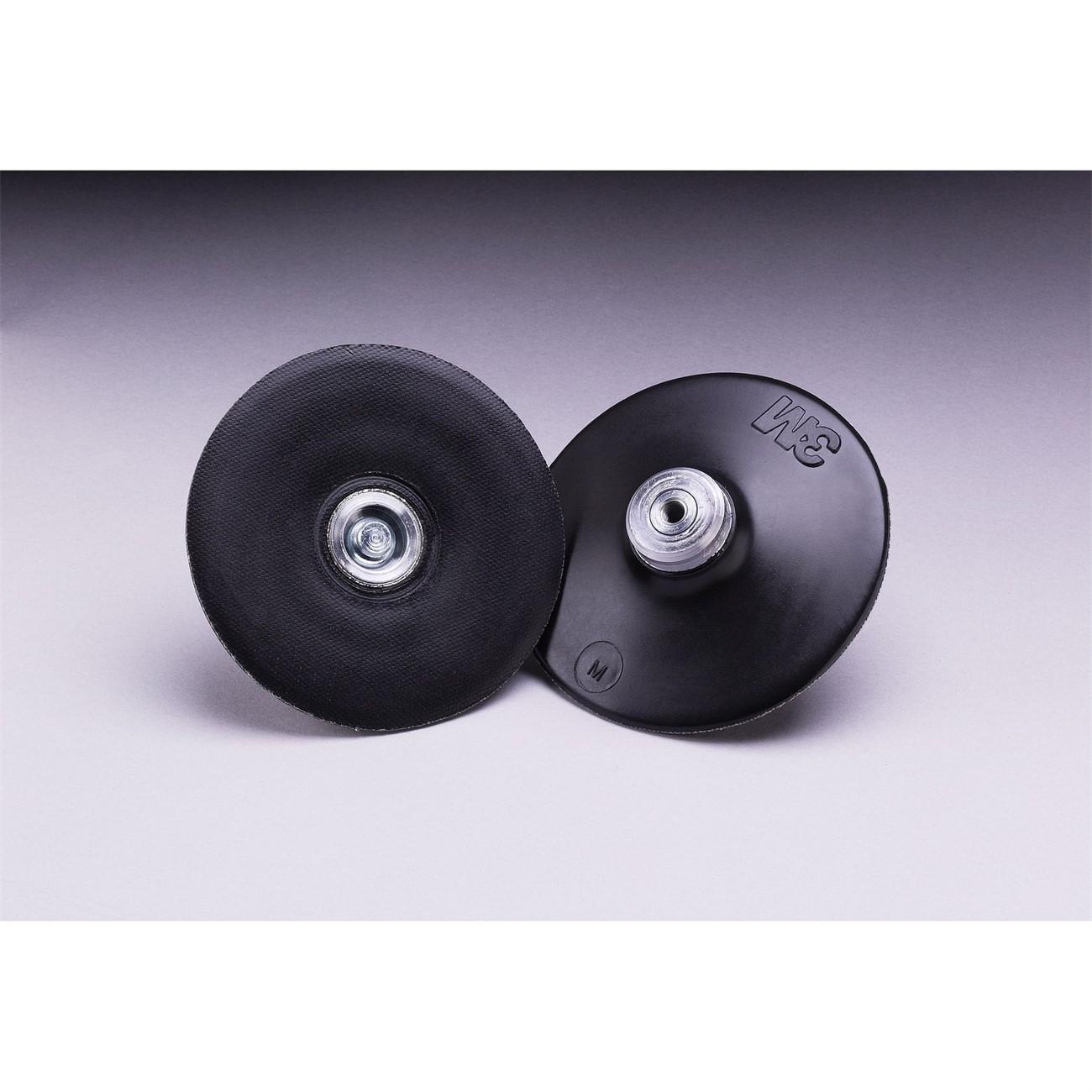

The 3M 7100106737 is a medium-density rubber backup pad built to support Roloc TS and TSM abrasive discs in grinding, blending, and surface preparation applications. At 4 inches in diameter with a 1/4-20 internal thread, the pad mounts directly onto tools equipped with a 1/4-20 external threaded shaft. It can also be used with a Roloc shank adapter to fit collet chuck tools. The medium rubber compound provides controlled flex and even pressure distribution across the disc face, helping maintain consistent contact with the work surface. Weighing just 0.32 pounds, it adds minimal mass to the tool setup.

This backup pad is used in metalworking, fabrication, and finishing environments where Roloc TS or TSM quick-change discs are the standard. Typical applications include weld blending, deburring, and surface conditioning on metal workpieces. It is suited for both handheld angle grinders and die grinders configured with the appropriate threaded shaft or collet chuck shank. The pad is sold individually and is a direct-mount accessory requiring no additional hardware when paired with a 1/4-20 EXT threaded tool.

Key Features

• Supports 3M Roloc TS and TSM 4-inch diameter quick-change abrasive discs
• 1/4-20 internal thread mounts directly to tools with 1/4-20 external threaded shafts
• Compatible with Roloc shank adapter for use in collet chuck tools
• Medium rubber compound delivers controlled flex and even disc pressure
• Lightweight at 0.32 pounds for reduced tool fatigue during extended use

Compatibility

Designed for use with 3M Roloc TS and TSM 4-inch diameter abrasive discs. Mounts to tools with 1/4-20 external threaded shafts or accepts a Roloc shank for collet chuck tool compatibility.

Installation Notes

Power down and disconnect the tool from its power source before installing or removing the backup pad. Thread the pad onto the 1/4-20 external shaft by hand until seated, then verify it is secure before operating the tool. When using a Roloc shank adapter, confirm the shank is fully seated in the collet chuck and tightened per the tool manufacturer's guidance. Follow applicable shop safety standards for abrasive tool accessories.

Technical Specifications

• Disc Diameter: 4 inches
• Thread Size: 1/4-20 Internal
• Pad Density: Medium
• Material: Rubber
• Weight: 0.32 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100106737
