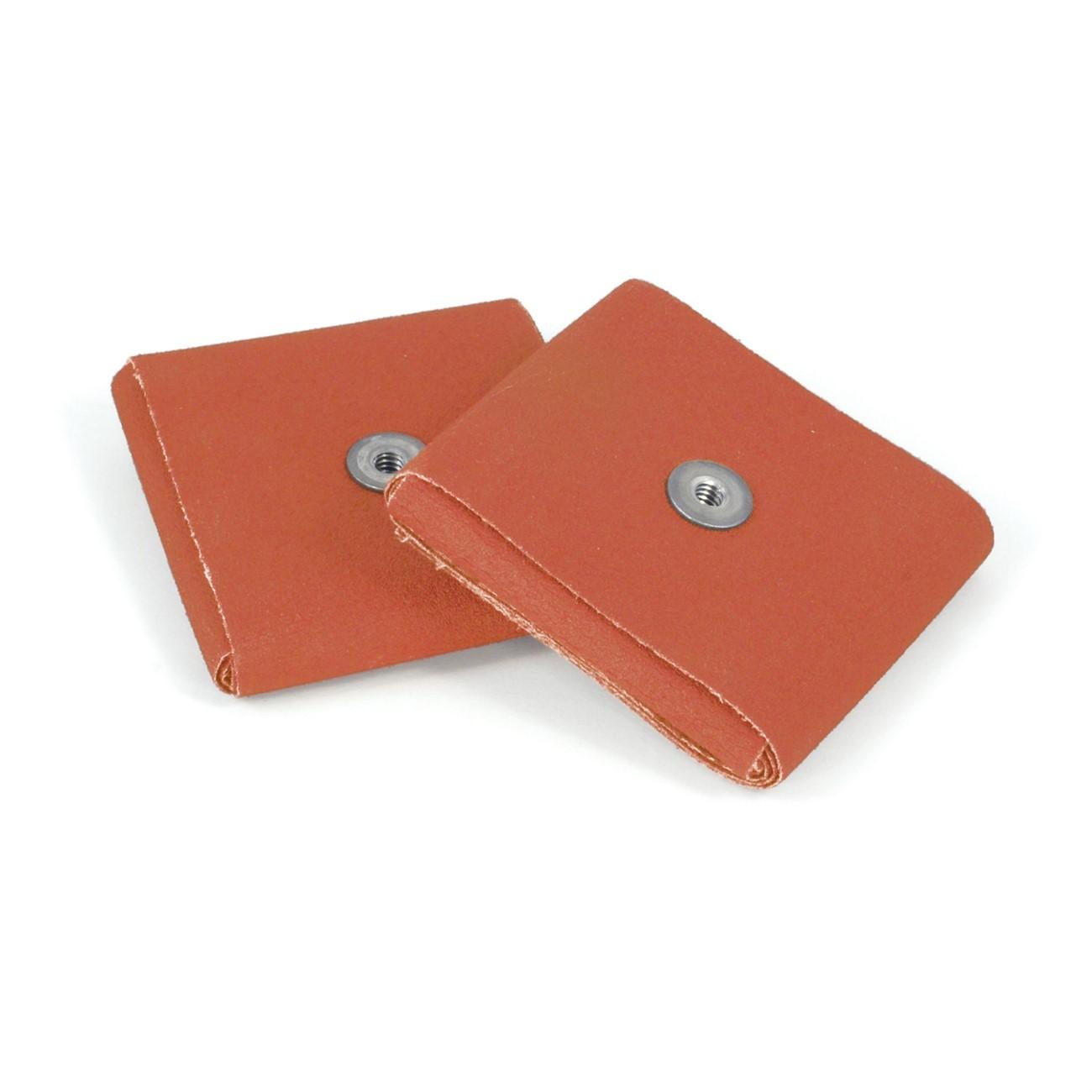

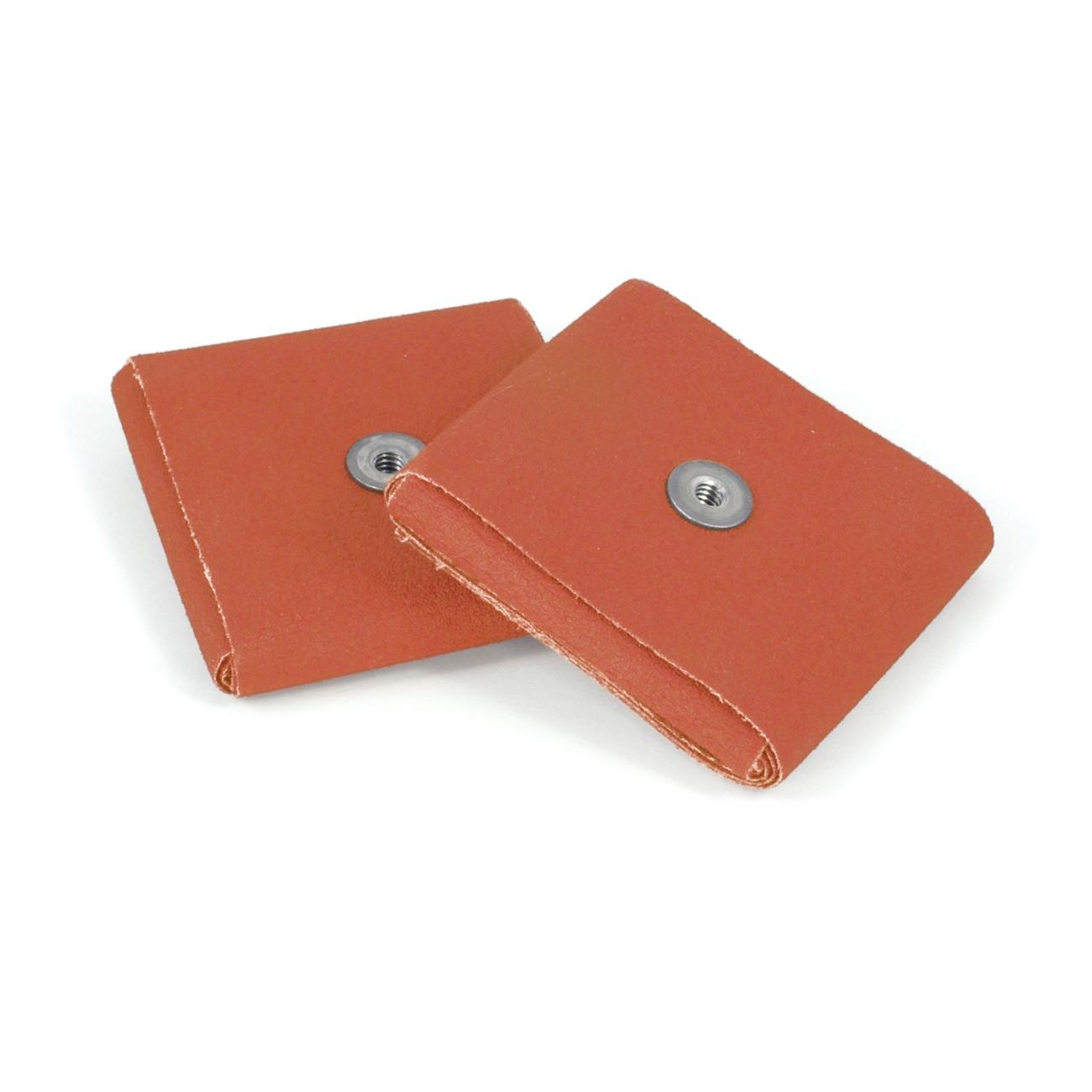

3M 7100105602 Ceramic Square Pad 3x3x0.5 in 60 Grit

Product Description

The 3M 7100105602 is a ceramic grain abrasive square pad designed for metalworking grinding and finishing applications. Built on an X-weight cloth backing with resin bonding, it handles heat-intensive grinding without degrading prematurely. The pad measures 3 inches x 3 inches x 0.5 inches and carries a 60-grit rating suitable for aggressive stock removal. A grinding aid is incorporated into the abrasive layer to reduce heat buildup at the workpiece surface. As the pad rotates, its corners deliver fast, aggressive cutting action, then wear progressively to expose fresh ceramic grain, maintaining a consistent cut rate and minimizing chatter throughout the pad's service life.

This square pad is suited for metalworking environments where consistent, controlled grinding is required. The 60-grit ceramic grain construction targets applications such as weld grinding, surface conditioning, and deburring on ferrous and non-ferrous metals. The X-weight cloth backing provides the rigidity needed for flat-surface work and edge grinding where a conformable or foam-backed product would be inadequate. Trade metalworkers, fabricators, and maintenance technicians working with angle grinders or similar rotary tools will find this pad appropriate for production and repair grinding tasks.

Key Features

• Ceramic grain abrasive for extended cut life and cooler grinding compared to conventional aluminum oxide
• Grinding aid additive reduces heat transfer to the workpiece during heavy stock removal
• X-weight durable cloth backing withstands high-pressure rotary grinding applications
• Square pad geometry — corners provide fast initial cutting action, then wear to expose fresh abrasive
• Resin-bonded construction for heat resistance and grain retention
• 60-grit rating suitable for aggressive material removal and weld blending

Compatibility

Designed for use in metalworking grinding and surface conditioning applications on rotary grinding tools that accept 3 inches x 3 inches square pad formats.

Installation Notes

Installation and mounting should be performed by a qualified metalworking technician or fabricator familiar with abrasive product safety requirements. Verify that the grinder or tool spindle speed does not exceed the maximum rated RPM marked on the pad or packaging before mounting. Inspect the pad for damage before each use and do not use a pad that shows tears, delamination, or missing sections. Follow ANSI B7.1 and applicable shop safety standards when operating rotary abrasive products, including the use of appropriate guards and personal protective equipment.

Technical Specifications

• Grit Grade: 60
• Abrasive Grain: Ceramic
• Backing Weight: X-weight cloth
• Bond Type: Resin
• Dimensions: 3 inches x 3 inches x 0.5 inches
• Weight: 0.17 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 50
• UPC: 00051141273655
• Primary Market: Metalworking

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100105602
