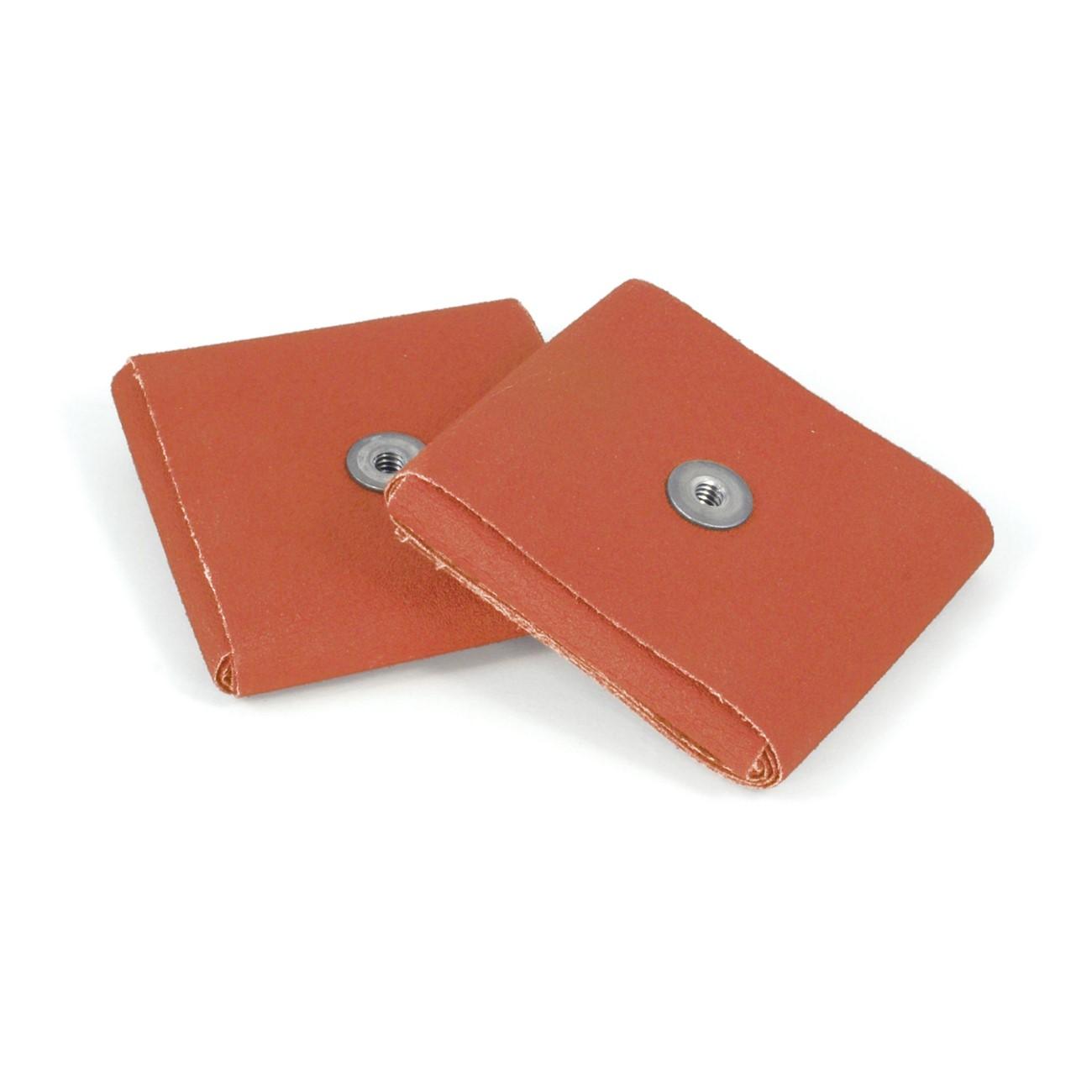

3M 7100105553 Square Abrasive Pad 747D 80 Grit 2x2x3/8 in

Product Description

The 3M 7100105553 is a ceramic grain square abrasive pad in the 747D series, measuring 2 inches x 2 inches x 3/8 inches and rated at 80 grit X-weight. Built on a durable X-weight cloth backing with resin bonding for heat resistance, it is engineered for metalworking applications where consistent stock removal and controlled heat generation are critical. The ceramic grain formula includes a grinding aid that keeps the work surface cooler during aggressive material removal, reducing the risk of workpiece discoloration or thermal damage.

This pad is designed for metalworking environments where fast, consistent cutting action is required. As the pad rotates, its corners initiate aggressive cutting. Those corners gradually wear down to expose fresh abrasive, delivering a steady cut rate and chatter-free grinding throughout the pad's service life. It is used by fabricators, machinists, and metalworking professionals on rotary or oscillating tooling for grinding, blending, and surface preparation tasks on metal workpieces.

Key Features

• Ceramic grain abrasive with grinding aid for cooler, faster cutting
• X-weight cloth backing provides durability under load
• Resin bonded construction resists heat buildup during extended use
• Corner geometry delivers fast initial cutting action as pad rotates
• Self-renewing wear pattern exposes fresh abrasive for consistent cut rate
• Chatter-free grinding performance throughout pad life

Compatibility

Designed for use in metalworking applications as an OEM-style abrasive consumable compatible with rotary and oscillating tooling that accepts 2 inches x 2 inches square abrasive pads.

Installation Notes

This pad is installed and replaced by machinists, fabricators, or abrasives technicians following equipment manufacturer guidelines for pad mounting and speed ratings. Before changing pads, power down and lock out the tool per OSHA lockout/tagout procedures. Verify that the tool's rated RPM does not exceed the pad's rated operating speed before use. Inspect the pad for damage before each use and discard any pad showing tears, delamination, or uneven wear.

Technical Specifications

• Series: 747D
• Abrasive Grain: Ceramic
• Grit Grade: 80
• Backing Weight: X-weight cloth
• Bond Type: Resin
• Size: 2 inches x 2 inches x 3/8 inches
• Unit of Measure: Each
• Minimum Order Quantity: 100
• UPC: 00051141203669

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100105553
