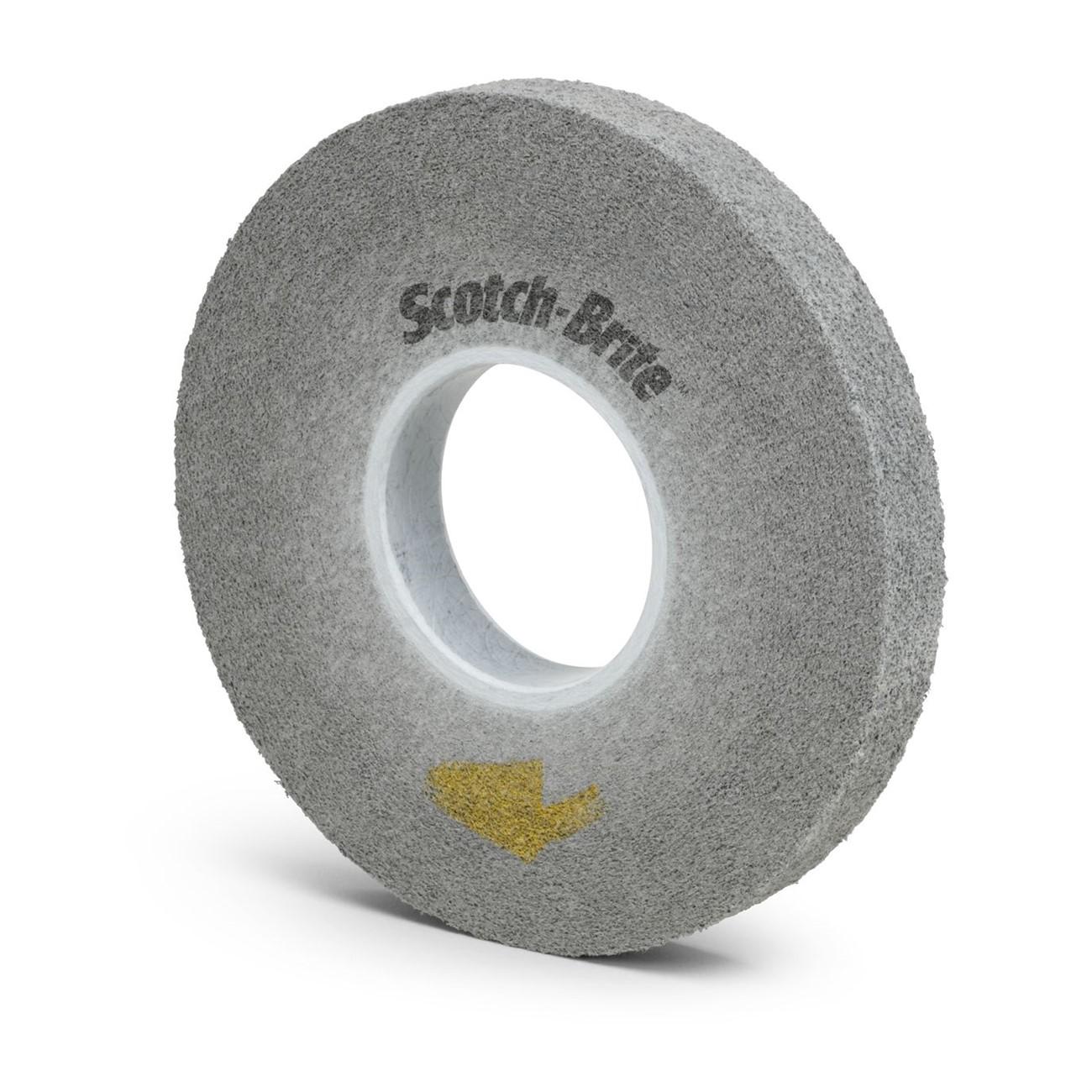

3M 7100103119 Scotch-brite Exl Pro Deburring Wheel 8 Inch

Product Description

The 3M 7100103119 Scotch-Brite EXL PRO is a convolute deburring wheel built for high-volume off-hand deburring and edge-finishing operations. At 8 inches in diameter, this wheel removes burrs, radiuses sharp edges, and blends surfaces using a non-woven abrasive construction that conforms to workpiece contours. The convolute build keeps the wheel running smooth and delivers consistent results pass after pass. Its unique resin system minimizes smearing on finished surfaces, and the composition is engineered to limit heat buildup, reducing the risk of discoloration or warping on heat-sensitive materials. Machinists, fabricators, and metal finishing technicians use this wheel for precision edge work in production environments.

The EXL PRO wheel is suited for off-hand bench grinder operations and is particularly effective on metal components requiring controlled burr removal and edge radiusing. The wheel construction requires less operator pressure than standard deburring wheels to achieve a fast cut, which reduces fatigue during extended use. It is rated for 8.6 inches in packaged length, 8.5 inches in packaged width, and 2.5 inches in packaged height, reflecting the wheel dimensions for mounting reference. This product is sold individually and is appropriate for use in metal fabrication, aerospace component finishing, and general manufacturing applications.

Key Features

• Convolute construction maintains smooth, consistent wheel action throughout wheel life
• Delivers 30 to 50 percent longer service life compared to the original Scotch-Brite EXL wheel
• Requires less applied pressure for a faster cut, reducing operator fatigue in off-hand use
• Unique resin system minimizes smearing, keeping workpiece surfaces clean between passes
• Limits heat buildup to reduce risk of discoloration and warping on heat-sensitive materials
• Removes burrs and radiuses edges without sacrificing surface finish quality

Compatibility

Designed as a direct replacement or upgrade for the original Scotch-Brite EXL deburring wheel in off-hand bench grinder and backstand applications where an 8-inch convolute wheel is specified.

Installation Notes

Mounting and operation of deburring wheels should be performed by qualified personnel following ANSI B7.1 safety standards for abrasive wheel use. Always power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for damage or cracks before each use and confirm that spindle speed does not exceed the maximum rated RPM marked on the wheel. Eye protection and appropriate PPE are required during operation.

Technical Specifications

• Wheel Diameter: 8 inches
• Wheel Type: Convolute Deburring
• Construction: Convolute non-woven abrasive
• Package Weight: 0.47 pounds
• Package Length: 8.6 inches
• Package Width: 8.5 inches
• Package Height: 2.5 inches
• UPC: 00051125949330
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100103119
