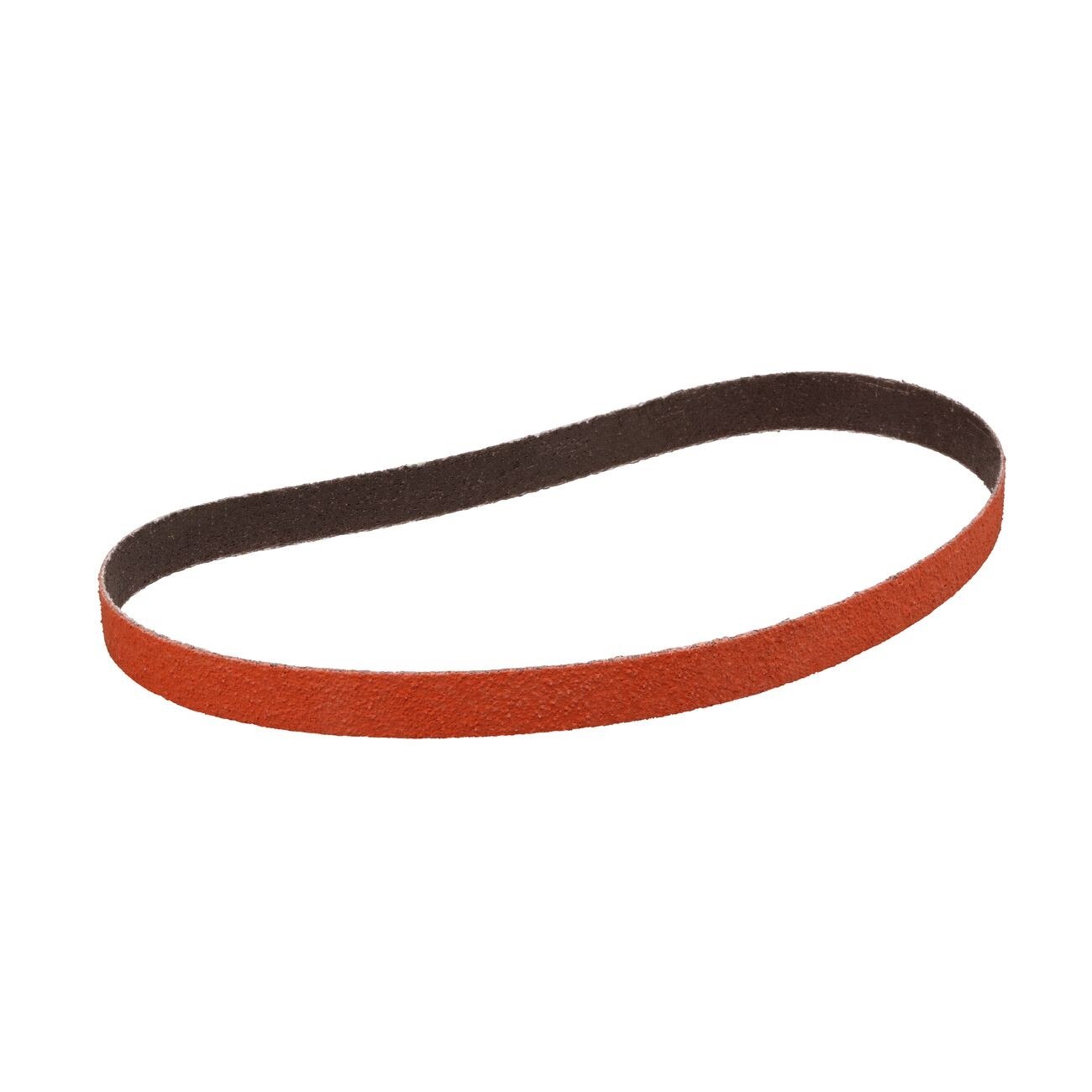

3M 7100096508 Abrasive Belt 80 Grit Ceramic 24x1/4 in

Product Description

The 3M 7100096508 is a coated abrasive belt engineered for demanding stock removal and metal finishing work. It combines 3M Ceramic Abrasive Grain with aluminum oxide in a blend that cuts faster and lasts longer than conventional aluminum oxide belts. The heavyweight polyester cloth backing handles high-pressure belt grinding applications and can be run dry or with a lubricant. A built-in grinding aid manages heat buildup during stainless steel operations. This belt measures 24 inches in length and 1/4 inch in width with an 80 grit rating, making it well suited for aggressive material removal on ferrous and non-ferrous metals.

This belt is used in industrial and fabrication settings where consistent stock removal and extended belt life reduce downtime. Typical applications include weld blending, deburring, and surface finishing on steel, stainless steel, and heat-sensitive alloys. The 80 grit cut is appropriate for initial grinding passes and moderate stock removal before transitioning to finer finishing steps. Licensed fabricators, tool-and-die shops, and metal finishing trades rely on this belt in both wet and dry grinding setups.

Key Features

• Ceramic and aluminum oxide grain blend delivers faster cut rate and longer service life than straight aluminum oxide
• Grinding aid reduces heat generation, protecting heat-sensitive metals and extending belt life on stainless steel
• Heavyweight polyester cloth backing supports high-pressure grinding and runs wet or dry
• Durable resin bond resists heat deterioration for consistent performance over the belt life
• 80 grit rating suited for aggressive stock removal and weld blending passes

Compatibility

Designed for use on belt grinding machines and file belt tools accepting a 24-inch by 1/4-inch belt configuration; suitable for ferrous metals, stainless steel, and heat-sensitive alloy applications.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive belt equipment. Power down and lock out the grinder before mounting or removing a belt. Confirm belt tracking and tension according to the machine manufacturer's guidelines before starting. Inspect the belt for tears or edge damage before each use and replace immediately if defects are found.

Technical Specifications

• Belt Length: 24 inches
• Belt Width: 1/4 inch
• Grit: 80
• Abrasive Type: Ceramic Aluminum Oxide Blend
• Backing Material: Heavyweight Polyester Cloth
• Bond Type: Resin
• Application: Coated Abrasive Belt
• Weight: 0.01 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100096508
