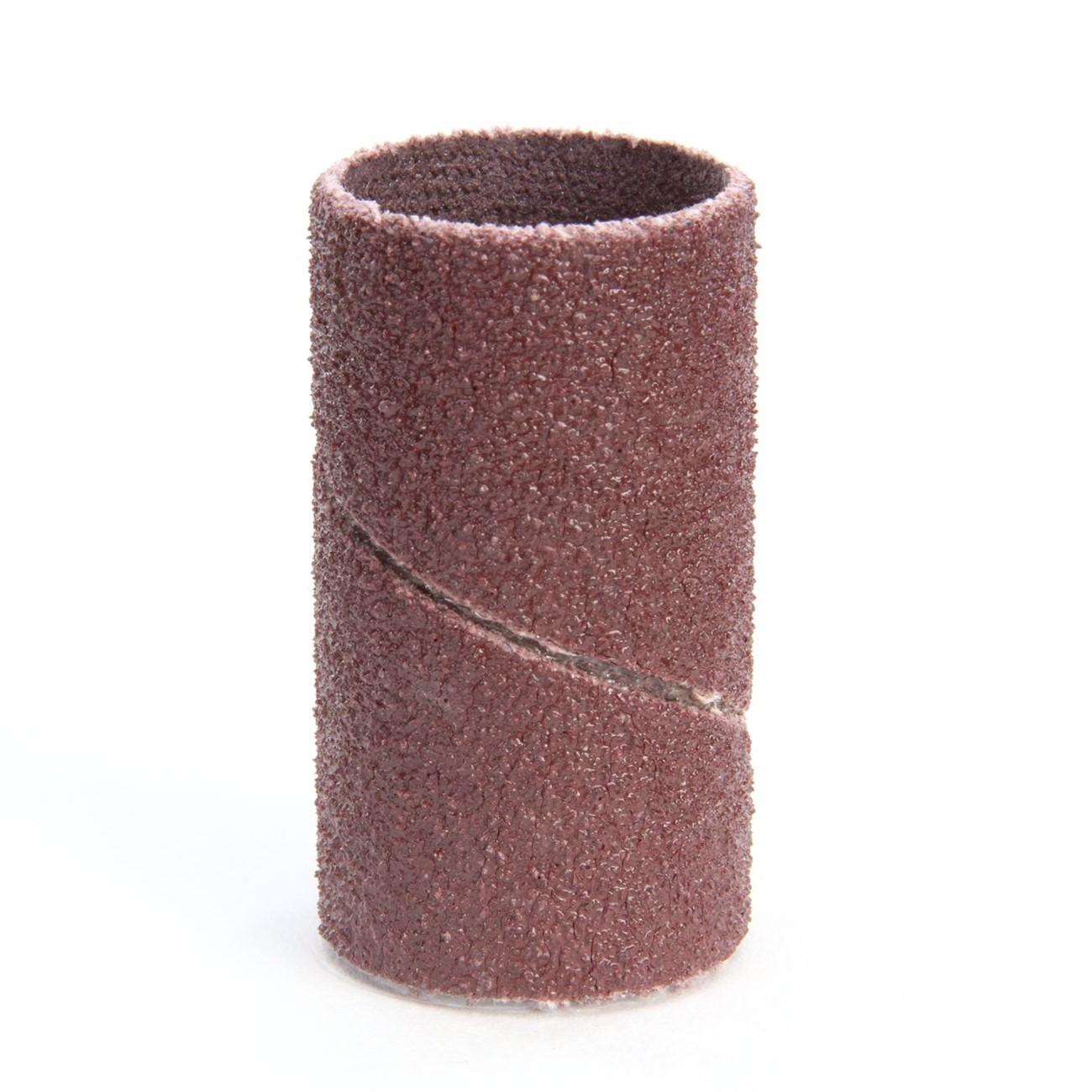

3M 7100093316 Cloth Band 341D 80 Grit 3/4x1-1/2 in

Product Description

The 3M 7100093316 is an aluminum oxide closed-coat cloth band in the 341D series, designed for aggressive stock removal on metal and wood surfaces. Built on an X-weight cloth backing, this band delivers the durability needed for demanding grinding and finishing tasks. A resin bond construction improves heat resistance, extending usable life under continuous pressure. At 80 grit, it sits in the medium-coarse range, making it effective for rapid material removal while still leaving a workable surface finish. Each band measures 3/4 inches wide by 1-1/2 inches long. Installation and use is straightforward for machinists, metalworkers, and finish carpenters working with standard benchtop or portable band filing equipment.

This cloth band is suited for general-purpose metalworking and woodworking applications. It performs particularly well on harder woods where a durable, heat-resistant abrasive is needed to maintain consistent cut rate without loading. In metalworking, it handles deburring, blending, and surface prep on ferrous and non-ferrous stock. The closed-coat construction maximizes abrasive coverage across the band face, supporting efficient use on flat and contoured workpiece surfaces in both shop and field environments.

Key Features

• Aluminum oxide grain provides consistent cutting action on metal and hard wood
• Closed-coat construction maximizes abrasive surface coverage for faster stock removal
• X-weight cloth backing resists tearing under high-tension and high-pressure use
• Resin bond improves heat resistance for extended belt life in continuous-use applications
• 80 grit medium-coarse cut suitable for material removal and surface prep
• Compact 3/4 inch x 1-1/2 inch size fits standard band filing and small-tool applications

Compatibility

Designed as a general-purpose replacement abrasive band for benchtop and portable band files and small-tool abrasive systems that accept 3/4 inch x 1-1/2 inch cloth bands.

Installation Notes

Abrasive bands of this type are installed and replaced by machinists, metalworkers, and woodworking professionals. Power down and disconnect the tool from its power source before changing bands. Confirm the drive and idler wheel are free of debris and that band tension is set per the tool manufacturer's guidance before resuming operation. Always wear appropriate eye and hand protection when operating abrasive equipment.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Coat Type: Closed Coat
• Backing Weight: X-Weight Cloth
• Bond Type: Resin
• Grit: 80
• Width: 3/4 inches
• Length: 1-1/2 inches
• Weight: 0.02 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 100
• UPC: 00051144402410

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100093316
