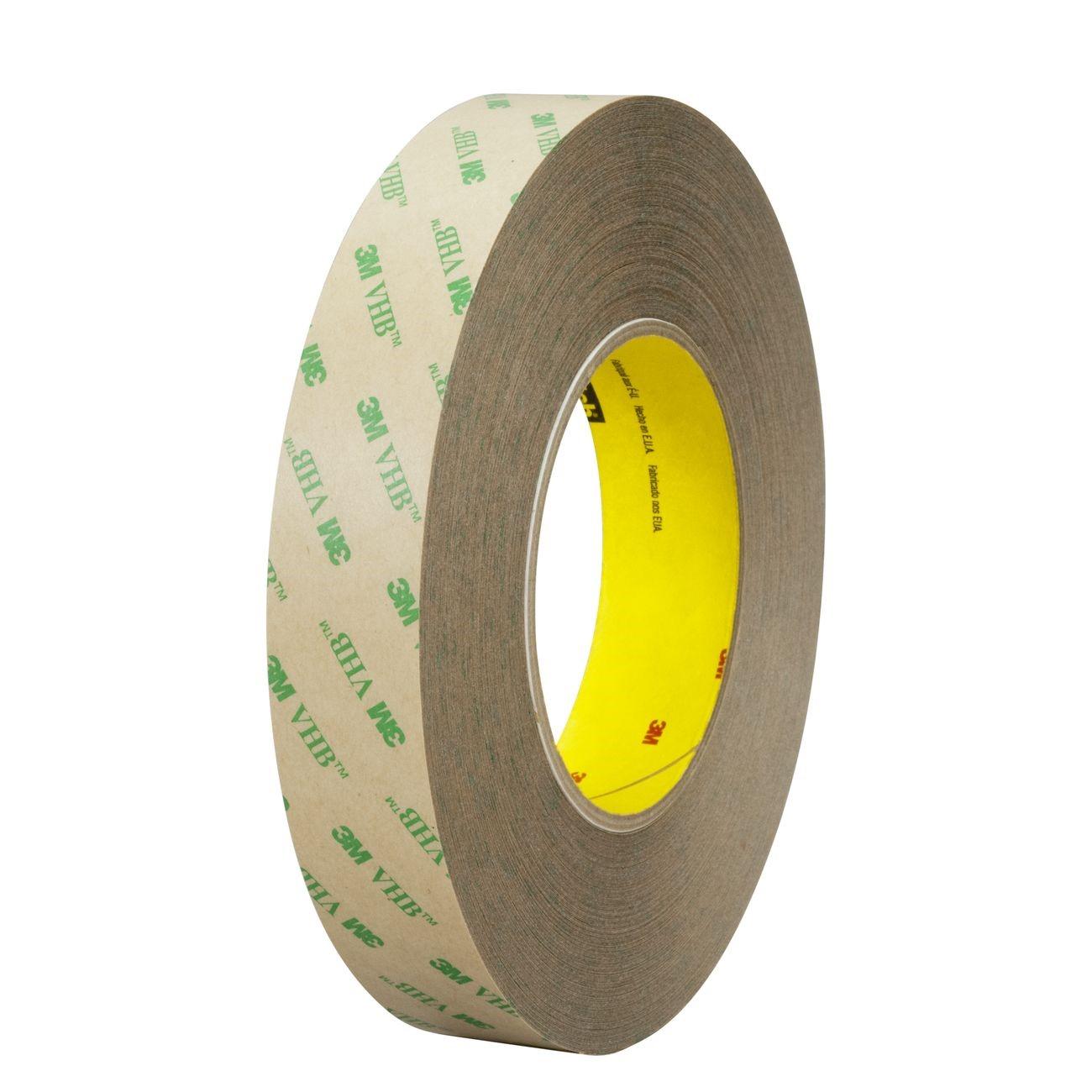

3M 7100093133 Vhb F9469PC Transfer Tape 4 Inch 5 Mil

Product Description

The 3M 7100093133 is a VHB F9469PC adhesive transfer tape designed for high-strength bonding across a wide range of industrial and commercial applications. This double-sided, transparent tape uses 3M High Performance Acrylic Adhesive 100MP in a thin 5.0 mil profile, delivering exceptional holding power without adding bulk. The acrylic adhesive core resists chemicals, UV exposure, and solvents, making it suitable for both indoor and outdoor use. Licensed tradespeople and assembly technicians handling bonding, mounting, and fabrication work will find this tape well-suited for fast, reliable results on demanding surfaces.

This tape is built for applications where a thin, conformable bond is required. The 5.0 mil construction allows it to conform to irregular or slightly textured surfaces, supporting both indoor and outdoor installations. It ships on a 58 polycoated kraft paper liner and is available in a 4-inch width on a roll format, making it practical for both manual hand application and automated dispensing setups in production environments.

Key Features

• 5.0 mil VHB transfer tape with transparent, double-sided construction
• 3M High Performance Acrylic Adhesive 100MP core for long-lasting bond strength
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to chemicals, UV exposure, and solvents
• Conforms to a variety of indoor and outdoor surface applications
• 58 polycoated kraft paper liner for controlled release during application

Compatibility

Designed as an OEM-style adhesive transfer tape suitable for bonding, mounting, and assembly applications across industrial, commercial, and general trade use where a thin, high-strength acrylic adhesive film is required.

Installation Notes

Surface preparation is critical before application — clean, dry, and degrease all bonding surfaces to ensure full adhesive contact. Apply firm, even pressure across the tape to promote proper adhesion and allow adequate dwell time before subjecting the bond to load. When working in environments with temperature extremes, confirm the operating range of 300 degrees F is appropriate for the specific installation. Remove the liner carefully to avoid stretching or contaminating the adhesive layer prior to placement.

Technical Specifications

• Tape Thickness: 5.0 mil (0.13 mm)
• Width: 4 inches
• Color: Transparent
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Liner: 58 polycoated kraft paper
• Format: Roll
• Package Weight: 3.06 pounds
• UPC: 00021200429316

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100093133
