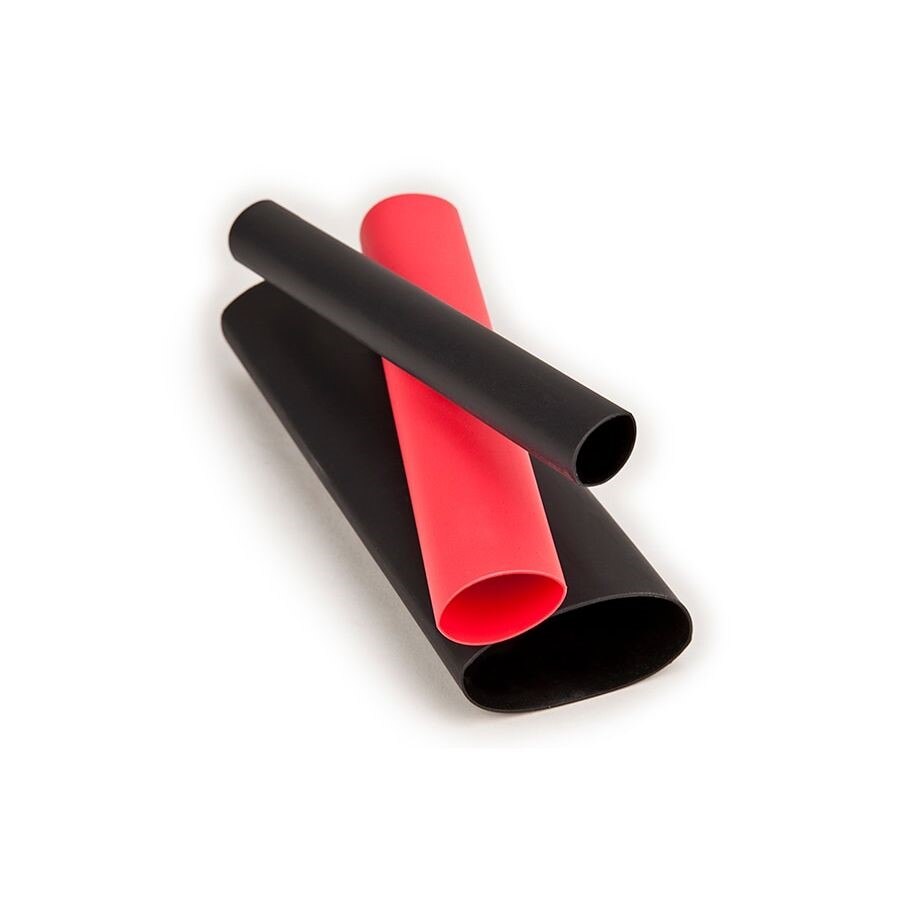

3M 7100092039 Heat Shrink Tubing EPS300 1/8 in 48 in

Product Description

The 3M 7100092039 is a thin-wall heat shrink tubing from the EPS-300 series, designed to provide environmental protection and electrical insulation in a single sleeve. Cut from 48-inch sticks, this tubing installs over wire terminations, splices, and connector barrels to seal out moisture, abrasion, and contaminants. The EPS-300 construction delivers reliable dielectric insulation for low-voltage wiring applications. Electricians, HVAC technicians, and panel builders reach for this type of tubing when a clean, durable sleeve is needed on exposed conductors or terminal connections.

This heat shrink tubing is suited for residential and light commercial electrical work, control wiring, and field-installed harnesses. Each stick measures 48 inches, allowing technicians to cut sections to length on the job. Typical uses include insulating wire splices inside control panels, protecting terminal ends on low-voltage thermostat wiring, and bundling or identifying conductor groups in tight enclosures.

Key Features

• EPS-300 series thin-wall construction for environmental protection and electrical insulation
• 1/8 inch nominal diameter suits small-gauge conductors and terminal sleeves
• 48-inch stick length allows field cutting to any required size
• Seals against moisture, abrasion, and contaminants at wire terminations and splices
• Lightweight at 0.03 pounds per stick, easy to carry and stock on the truck

Compatibility

Designed as a general-purpose heat shrink sleeve for small-diameter conductors and terminals in low-voltage electrical and control wiring applications.

Installation Notes

Installation is performed by electricians and HVAC controls technicians. De-energize the circuit completely before applying heat shrink to any live or recently energized conductor. Slide the tubing over the conductor or termination before making the final connection, then apply even heat with a heat gun to shrink the sleeve uniformly. Avoid open flame tools, as uneven heat can cause the tubing to split or under-shrink on one side.

Technical Specifications

• Nominal Diameter: 1/8 inch
• Stick Length: 48 inches
• Weight: 0.03 pounds
• UPC: 00051128597699
• Unit of Measure: Each
• Minimum Order Quantity: 250

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100092039
