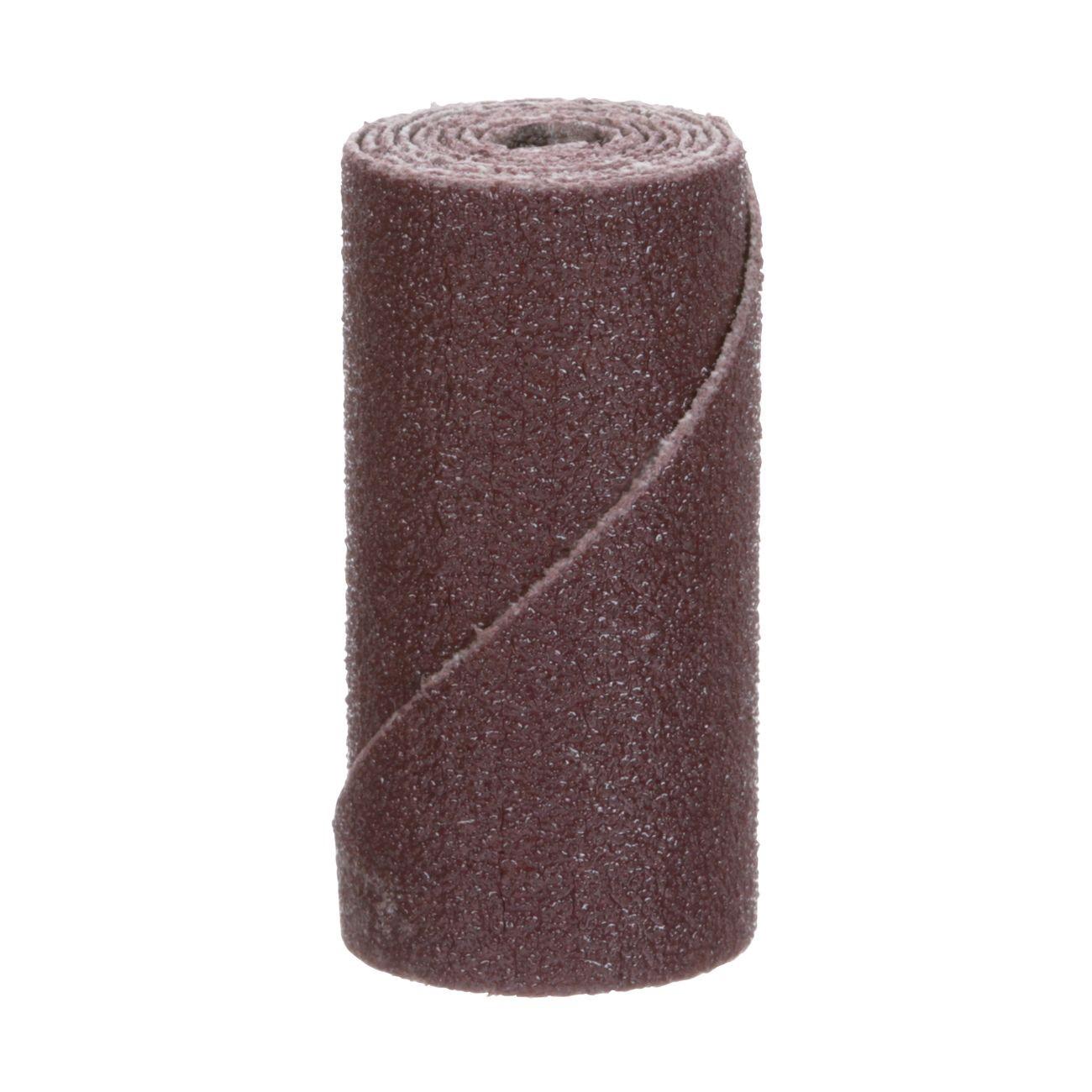

3M 7100086095 Aluminum Oxide Cartridge Roll 60 Grit

Product Description

The 3M 7100086095 is an aluminum oxide cartridge roll designed for aggressive material removal in tight or contoured areas. Built on an X-weight cloth backing with resin bond construction, it resists heat buildup during extended grinding and deburring operations. The roll measures 0.5 inches in diameter by 1.5 inches in length with a 0.125-inch arbor hole, and runs at 60 grit for fast stock removal on metal, weld joints, and hard surfaces. Finishing technicians and fabricators use this roll in pneumatic or electric die grinders and drum mandrels where straight or flap wheels cannot reach.

This cartridge roll is suited for interior contour work, tube deburring, port blending, and weld cleanup on ferrous and non-ferrous metals. The X-weight cloth backing handles the lateral and torsional stress of rotary grinding without tearing. It is sold in minimum quantities of 100 rolls per order, making it appropriate for shop-level consumption rather than single-job sourcing.

Key Features

• Aluminum oxide abrasive grain for consistent cut rate on steel, stainless, and aluminum
• X-weight cloth backing resists tearing under rotary and lateral grinding loads
• Resin bond construction provides heat resistance during aggressive stock removal
• 60 grit for fast material removal and weld seam blending
• Compact 0.5 inches x 1.5 inches x 0.125 inches profile fits mandrel-mounted die grinder setups

Compatibility

Designed for use with standard cartridge roll mandrels in pneumatic and electric die grinders accepting a 0.125-inch arbor size.

Installation Notes

Cartridge rolls are installed by threading the roll onto a compatible tapered or straight mandrel and tightening per the mandrel manufacturer's instructions. Ensure the grinder is powered off and the air supply is disconnected before mounting or removing rolls. Operate within the maximum RPM rating marked on the roll or mandrel. Wear appropriate eye protection and follow applicable ANSI B11 or OSHA grinding safety requirements.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Grit: 60
• Grade: X-Weight Cloth
• Bond Type: Resin
• Diameter: 0.5 inches
• Length: 1.5 inches
• Arbor Hole: 0.125 inches
• Unit of Measure: Roll
• Minimum Order Quantity: 100
• Weight: 0.03 pounds
• UPC: 00051144140282

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100086095
