3M 7100086094 Full Tapered Cartridge Roll 60 Grit

Product Description

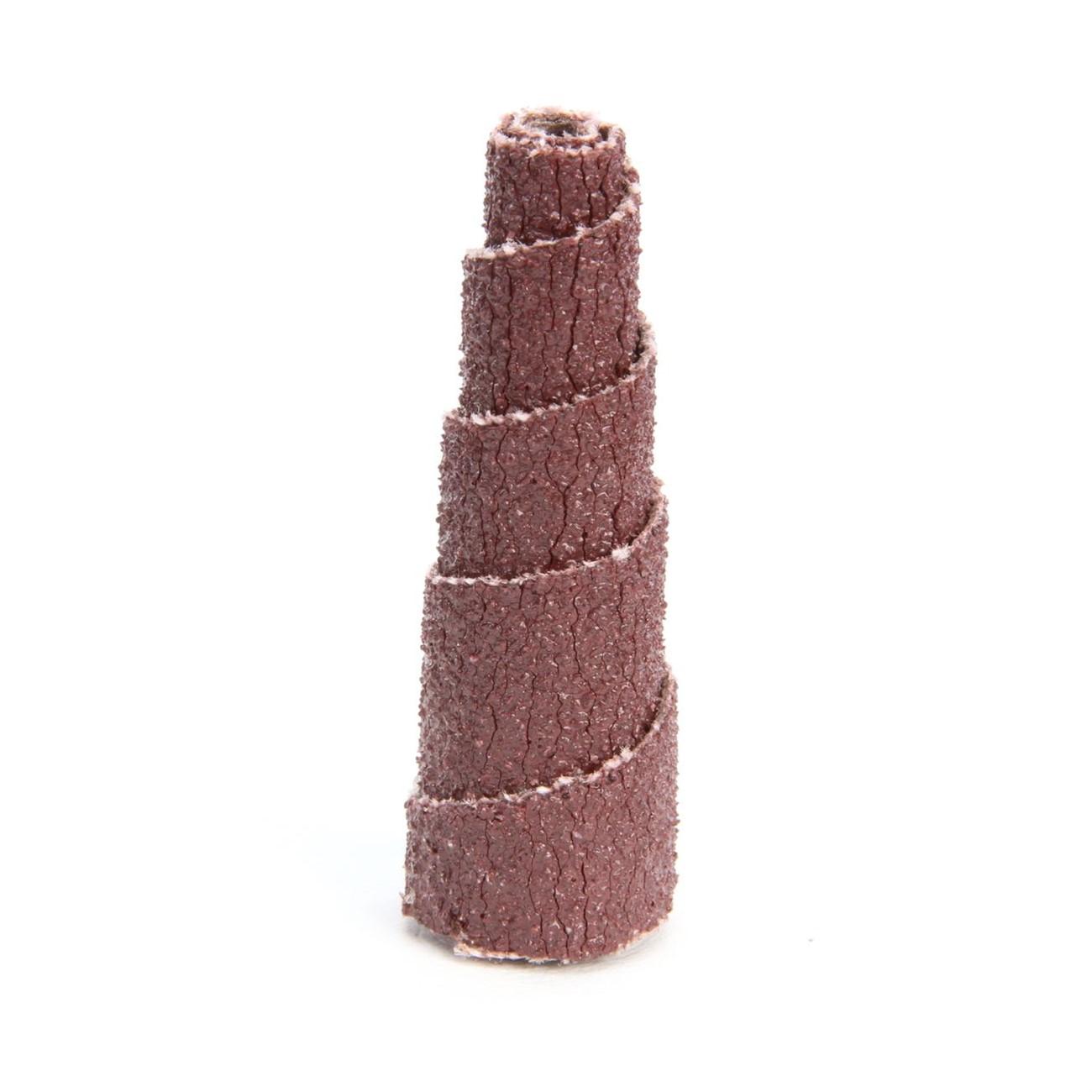

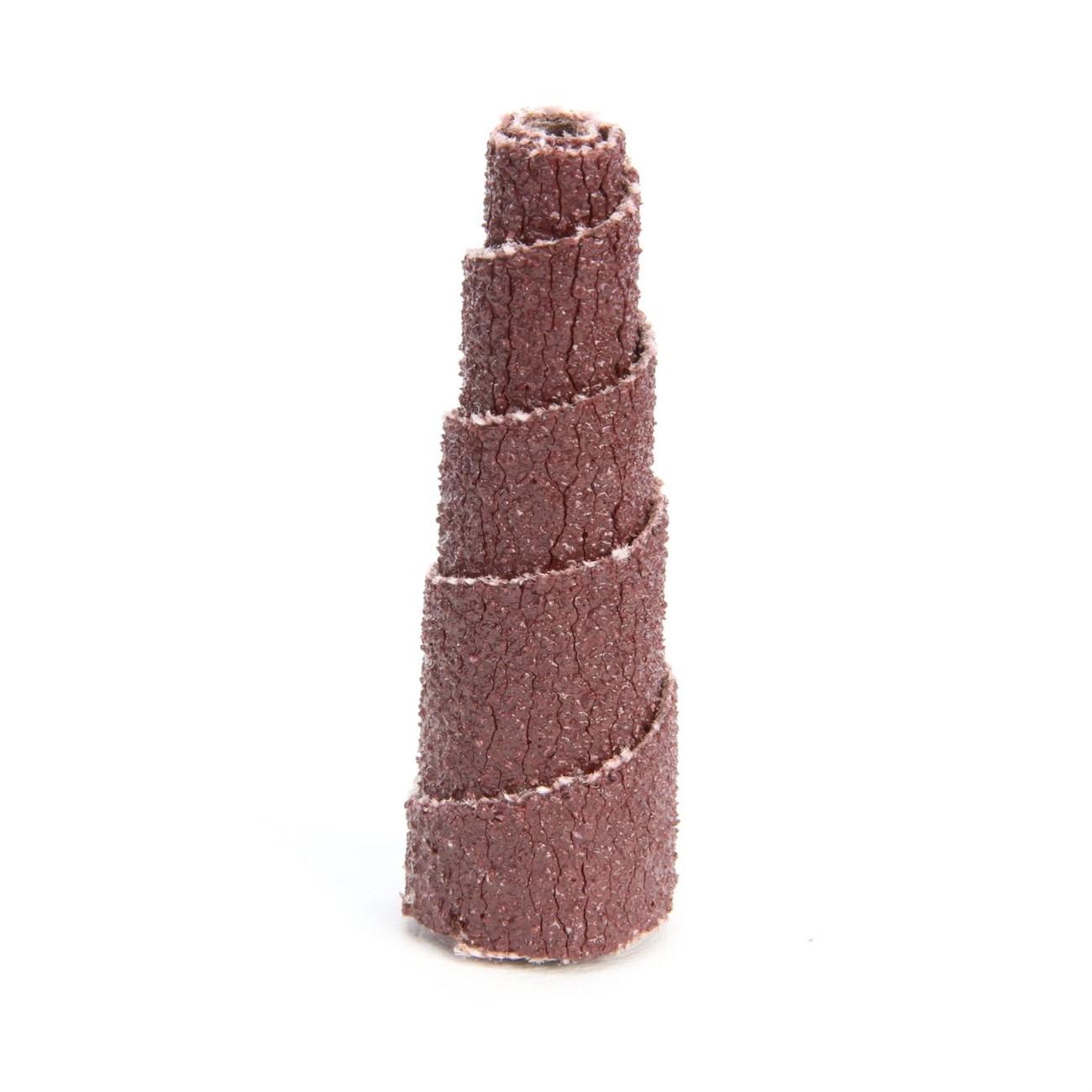

The 3M 7100086094 is a full tapered cartridge roll designed for precision grinding and finishing in tight areas and contoured surfaces. Built on an X-weight cloth backing, it delivers the durability needed for aggressive material removal. The abrasive is aluminum oxide, resin bonded for heat resistance, and rated at 60 grit for medium-to-aggressive stock removal. Each roll measures 0.5 inches wide, 1.5 inches long, and 0.125 inches in diameter at the tip. Metalworking shops, fabricators, and tool-and-die technicians use these rolls with mandrel-mounted die grinders and rotary tools for deburring, blending, and weld dressing operations.

This cartridge roll fits standard finishing and deburring workflows on metals including steel, stainless steel, and aluminum. The full tapered profile allows access to slots, ports, holes, and contoured edges where flat abrasives cannot reach. It is well suited for bench grinder setups with cartridge roll mandrels and portable die grinder applications in both shop and field environments. The 60 X-weight construction balances cut rate and roll life for medium-duty surface conditioning tasks.

Key Features

• Aluminum oxide abrasive for reliable stock removal on ferrous and non-ferrous metals
• X-weight cloth backing provides durability and resistance to tearing under load
• Resin bond construction resists heat buildup during extended grinding passes
• Full tapered profile accesses contoured surfaces, slots, and recessed features
• 60 grit rating suited for medium-to-aggressive deburring and blending

Compatibility

Designed for use with standard cartridge roll mandrels in die grinders and rotary tools; verify mandrel diameter matches roll specifications before mounting.

Installation Notes

Installation is performed by metalworking and fabrication professionals using a compatible mandrel and die grinder or rotary tool. Ensure the grinder is powered off and unplugged before mounting or removing the roll. Do not exceed the maximum RPM rating of the mandrel or tool. Wear appropriate eye protection and follow applicable shop safety standards when operating abrasive tooling.

Technical Specifications

• Abrasive Material: Aluminum Oxide
• Backing: X-weight Cloth
• Bond Type: Resin
• Grit: 60
• Profile: Full Tapered
• Width: 0.5 inches
• Length: 1.5 inches
• Tip Diameter: 0.125 inches
• Weight: 0.03 pounds
• UPC: 00051144140343

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100086094
