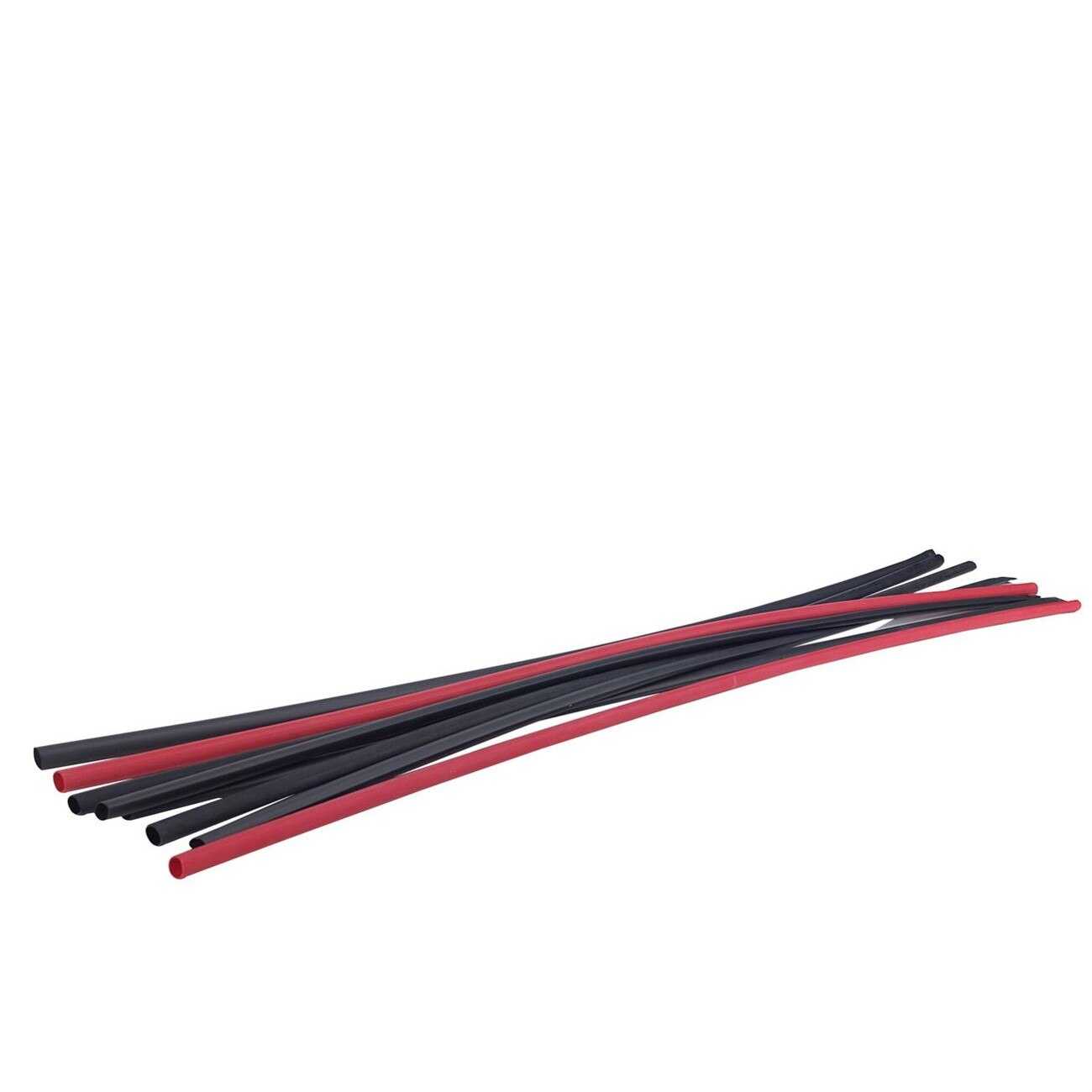

3M 7100083141 Heat Shrink Thin-wall Tubing FP301

Product Description

The 3M 7100083141 is a thin-wall heat shrink tubing from the FP-301 series, designed to provide reliable insulation, strain relief, and environmental protection for electrical wiring and connections. It features a 4-inch diameter and a 48-inch length, making it well suited for larger wire bundles and cable assemblies. The FP-301 series is recognized for a balanced combination of electrical insulating properties, physical durability, and resistance to common industrial chemicals. Licensed electricians and MRO maintenance technicians are the primary installers.

This heat shrink tubing is used across a wide range of industrial and military wiring applications. Typical uses include insulating splices, protecting terminal connections, bundling multiconductor cables, and providing abrasion resistance on wire harnesses. The 48-inch stick length accommodates longer runs and can be cut to length in the field. It is appropriate for both commercial electrical installations and demanding environments where chemical exposure or mechanical stress is a concern.

Key Features

• Thin-wall construction allows a lower profile after shrinking compared to heavy-wall alternatives
• 4-inch diameter accommodates large wire bundles and cable assemblies
• 48-inch length can be cut to required size on site
• Balanced electrical, physical, and chemical resistance properties for industrial and military use
• Sold as individual piece (each) with a minimum order quantity of 12 pieces

Compatibility

Designed as an OEM-style replacement and general-use insulation sleeve for industrial and military-grade electrical wiring applications requiring thin-wall heat shrink protection at a 4-inch diameter.

Installation Notes

Installation is performed by licensed electricians or qualified electrical technicians. De-energize the circuit completely before applying heat shrink tubing to any live conductor or terminal. Use a calibrated heat gun rather than an open flame to shrink the tubing evenly and avoid scorching. Follow applicable NEC guidelines for insulation ratings and conductor protection requirements.

Technical Specifications

• Diameter: 4 inches
• Length: 48 inches
• Wall Type: Thin-wall
• Weight: 0.92 pounds
• UPC: 00051128599099

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100083141
