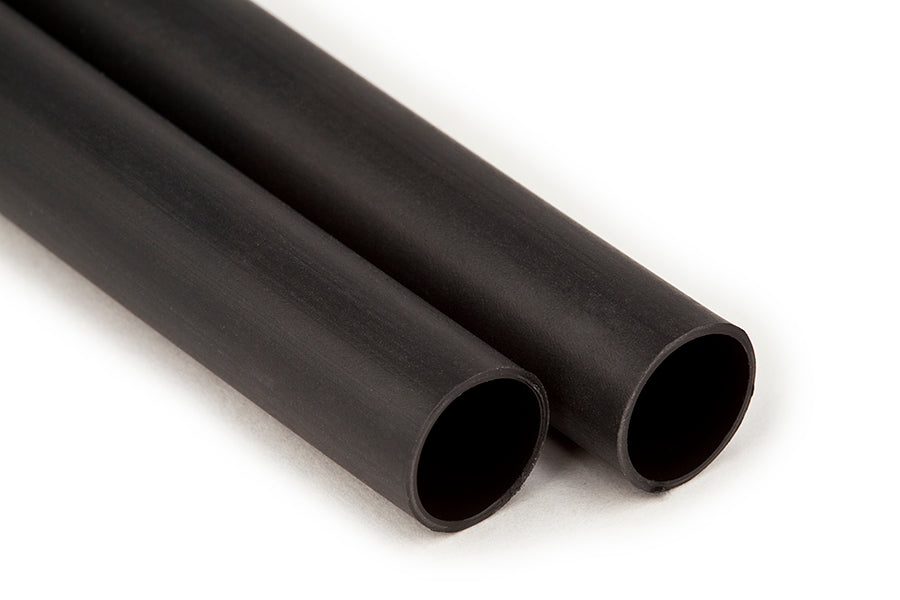

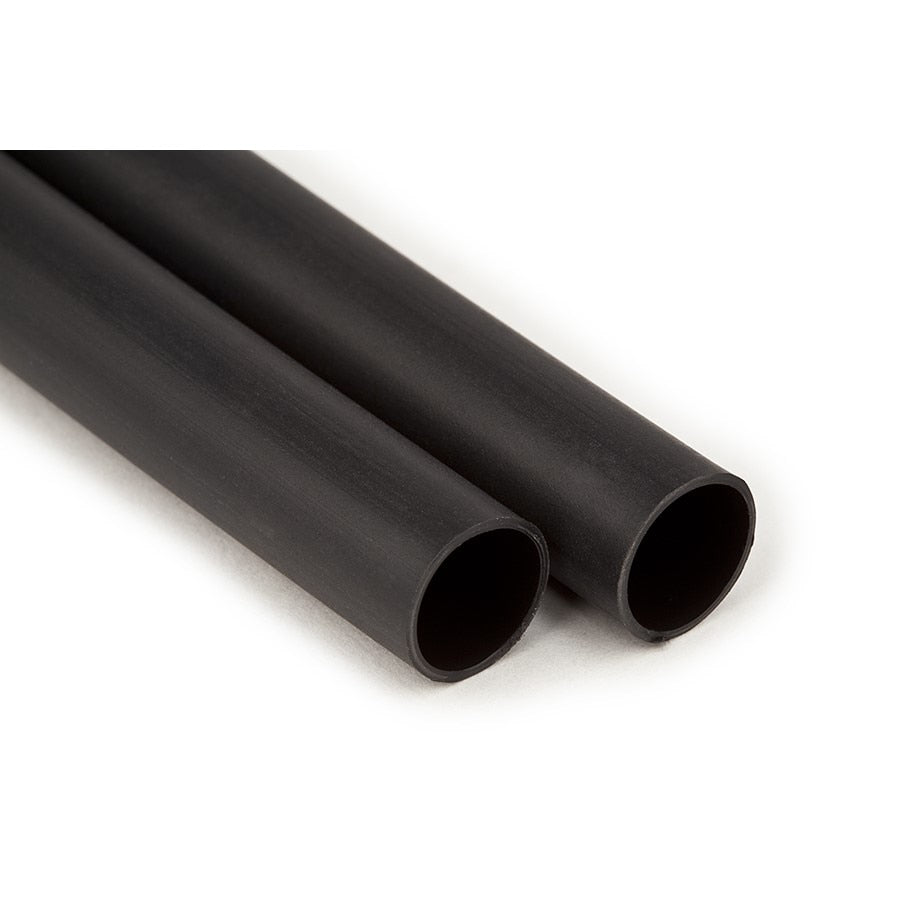

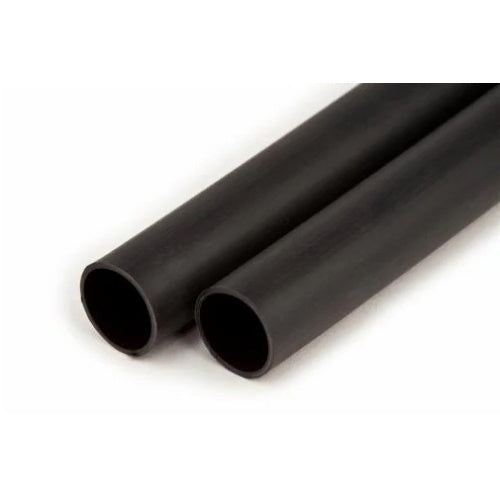

3M 7100083080 Heat Shrink Multiple-Wall Polyolefin Tubing EPS400-.450-48 in (75 per case)

Product Description

The 3M 7100083080 is EPS400 series multiple-wall polyolefin heat shrink tubing supplied as 48 inch sticks in a 75-piece case. The tubing uses dual-wall, adhesive-lined construction with a 4:1 shrink ratio, expanding from an approximate 0.45 in ID to recover to about 0.11 in ID. It provides moisture sealing and abrasion protection, is rated for 600 V, and operates from -55 to 110 C.

• Dual-wall, adhesive-lined polyolefin construction with 4:1 shrink ratio (expanded ID 0.45 in to recovered ID ~0.11 in).
• Electrical and thermal ratings: rated to 600 V; operating temperature range -55 to 110 C ( -67 to 230 F); typical shrink temperature 121 C (250 F).
• Supplied as 48 in length sticks, packaged 75 pieces per case; intended for insulation, sealing and strain relief on splices, terminals and wire bundles.

Product Highlights

EPS400 dual-wall adhesive-lined polyolefin tubing, 4:1 shrink ratio, 0.45 in to ~0.11 in recovery, 48 in sticks, 75 per case, 600 V rated, -55 to 110 C

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100083080
• Country of Origin: US

Technical Specifications

• Brand: 3M
• MPN: 7100083080
• Series: EPS-400
• Model: EPS400-.450-48
• Material: Polyolefin (semi-rigid), adhesive-lined
• Wall Type: Dual-wall
• Adhesive Lined: Yes
• Shrink Ratio: 4:1
• Inner Diameter Before Shrink: 0.45 in
• Inner Diameter After Shrink (Recovered ID): 0.11 in (approximate)
• Length (per stick): 48 in
• Pack Quantity: 75 per case
• Voltage Rating: 600 V
• Operating Temperature Range: -55 to 110 C (-67 to 230 F)
• Shrink Temperature: 121 C (250 F)
• Certifications: UL Listed; CSA Certified; RoHS 2011/65/EU Compliant
• Typical Applications: Insulating and protecting splices, terminals, wire bundles, harness breakouts; moisture sealing and strain relief
• UPC: 10051128599379
