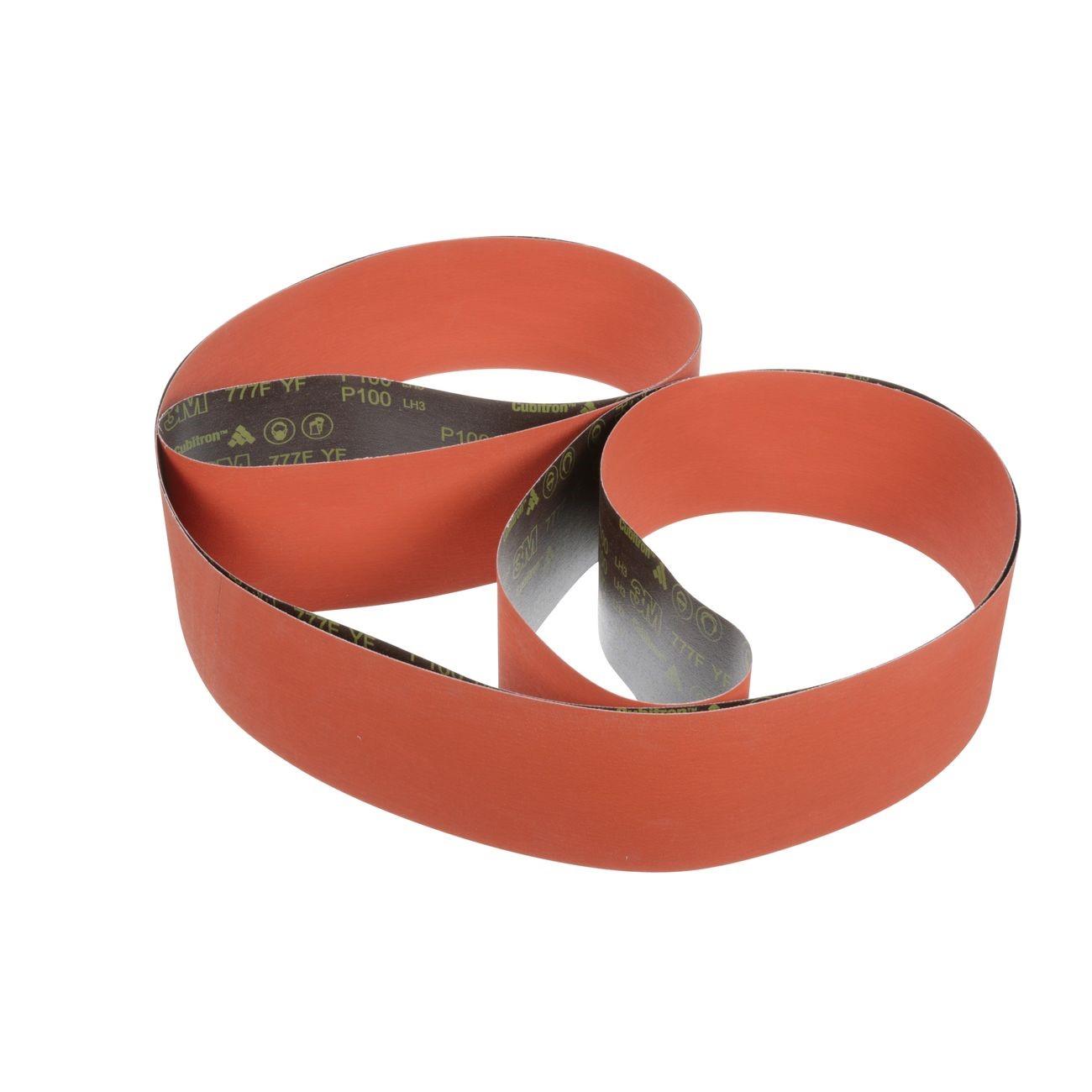

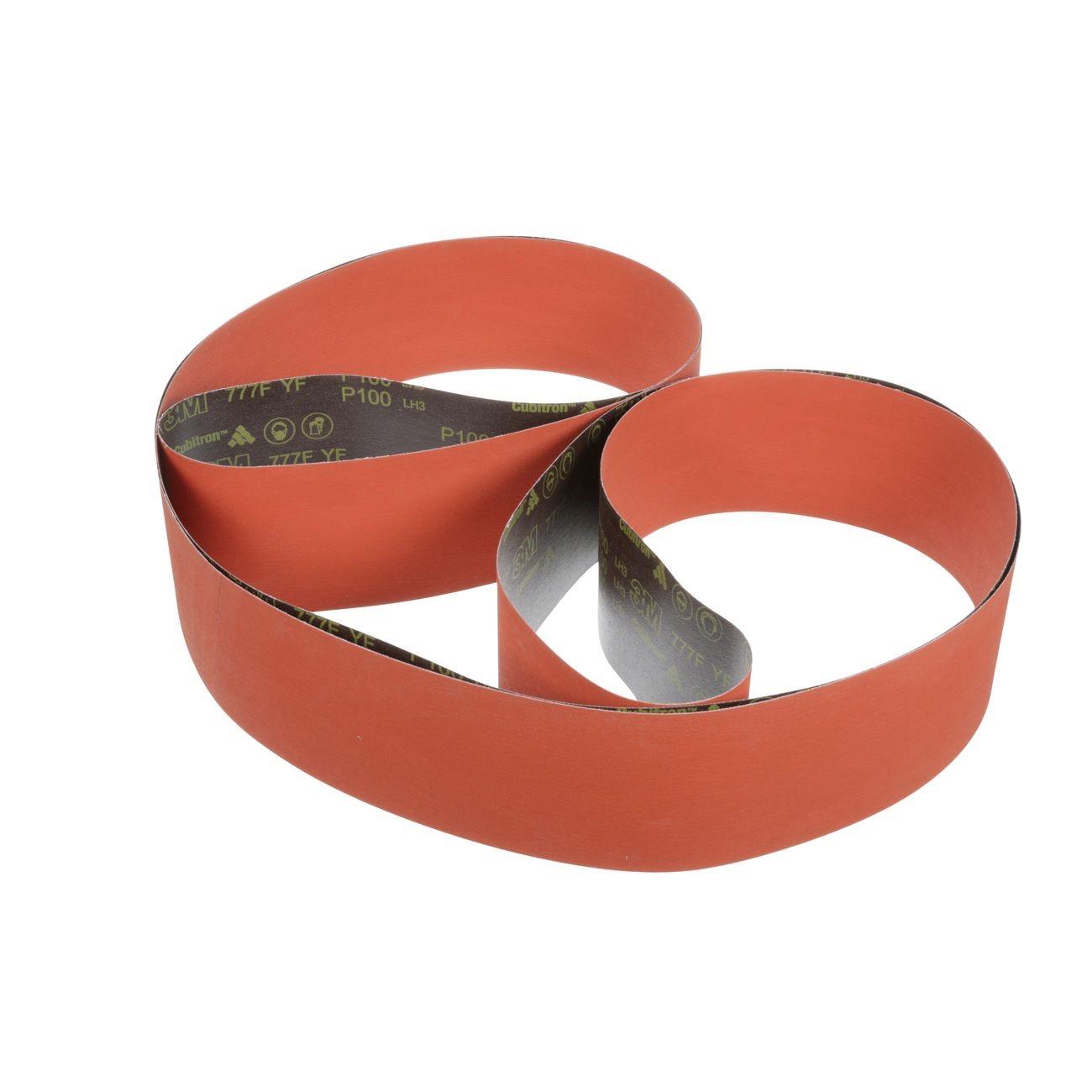

3M 7100083003 Abrasive Belt 300x6 Inch P120 Ceramic

Product Description

The 3M 7100083003 is a coated abrasive belt designed for demanding stock removal and metal finishing applications. It uses a blend of ceramic abrasive grain and aluminum oxide, a combination that cuts faster and lasts longer than standard aluminum oxide belts. The belt measures 300 inches long and 6 inches wide, making it suitable for wide-contact grinding operations. A heavyweight polyester cloth backing handles high-pressure applications without breaking down, and a durable resin bond resists heat deterioration to extend belt life. Metal fabricators, weld grinding technicians, and industrial maintenance trades install and use this belt type.

This belt is built for metal finishing environments where heat generation and belt wear are primary concerns. The ceramic grain blend performs well on stainless steel, carbon steel, and other hard metals. A built-in grinding aid actively reduces heat buildup at the contact zone, which is critical when working with heat-sensitive metals. The belt can be run dry or with a lubricant, giving operators flexibility across different machine setups and material requirements. It is sold in a minimum quantity of 20 belts per order.

Key Features

• Ceramic and aluminum oxide grain blend cuts faster and outlasts traditional aluminum oxide belts
• Heavyweight polyester cloth backing supports high-pressure grinding without deformation
• Built-in grinding aid reduces heat buildup, improving performance on stainless steel and heat-sensitive metals
• Durable resin bond resists heat deterioration and extends overall belt life
• Runs wet or dry for flexibility across machine types and applications
• Produces more finished parts per belt, reducing change frequency and downtime

Compatibility

Designed for use on wide-belt grinding and finishing machines that accept 300-inch by 6-inch abrasive belts in coated cloth configurations.

Installation Notes

Belt installation should be performed by qualified machine operators following the equipment manufacturer's belt-tensioning and tracking procedures. Power down and lock out the machine before mounting or removing the belt. Verify belt direction arrows align with the machine's drive direction before startup. Inspect the contact wheel and platen for wear before installing a new belt to avoid premature failure.

Technical Specifications

• Belt Length: 300 inches
• Belt Width: 6 inches
• Grit: P120
• Abrasive Material: Ceramic Aluminum Oxide Blend
• Backing Material: Heavyweight Polyester Cloth
• Bond Type: Resin
• Application: Coated, Wet or Dry
• Weight: 3.42 pounds
• UPC: 00051125109055
• Unit of Measure: Each
• Minimum Order Quantity: 20

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100083003
