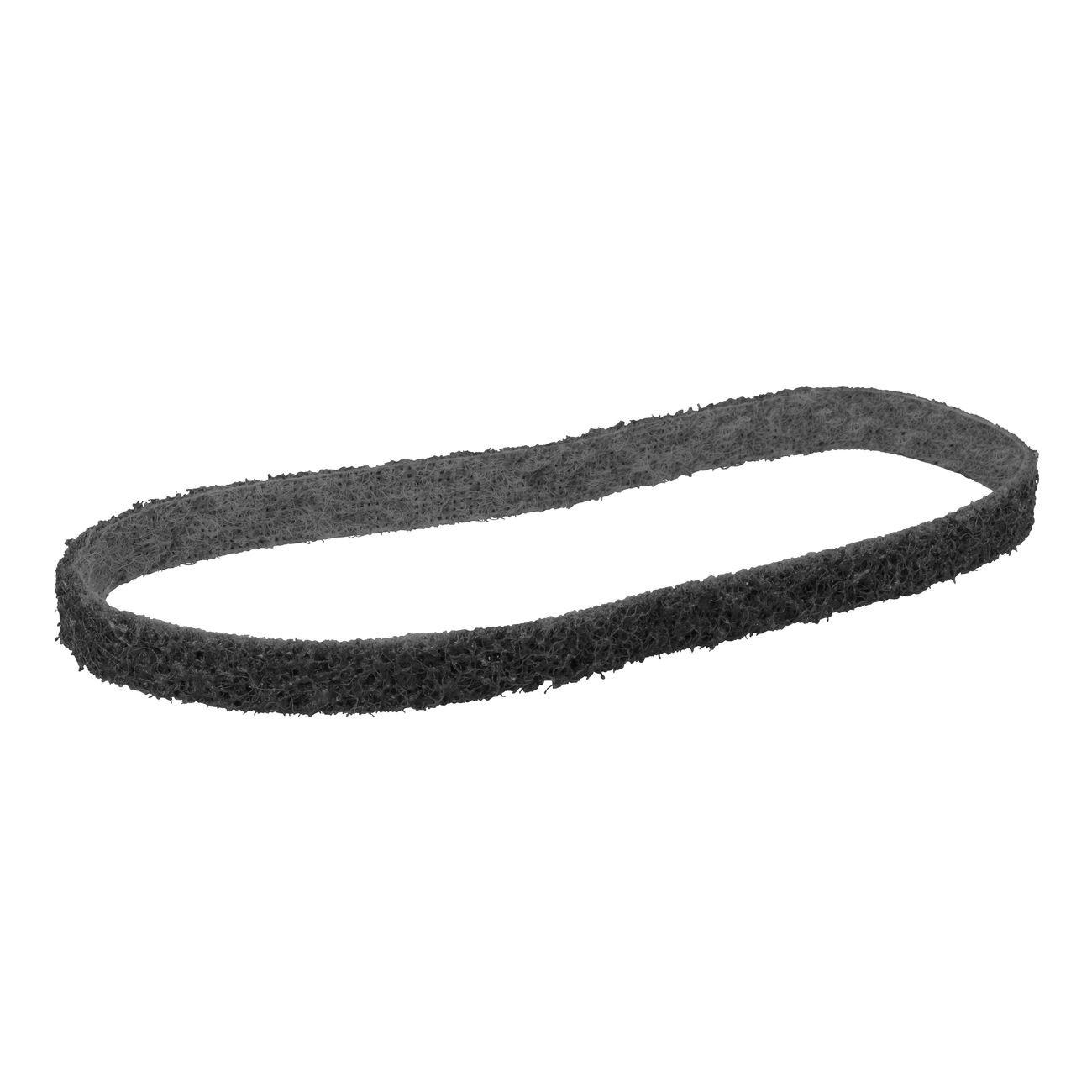

3M 7100081741 Surface Conditioning Belt 18x3 Inch Silicon Carbide

Product Description

The 3M 7100081741 is a nonwoven silicon carbide surface conditioning belt designed for precision finishing work on metal surfaces. Built on a reinforced scrim backing with an open-web nonwoven construction, it delivers consistent stock removal and surface refinement without the excessive heat buildup associated with coated abrasive belts. Measuring 18 inches in length and 3 inches in width, this belt fits standard belt finishing and backstand machines. It is used by metalworkers, fabricators, and maintenance technicians who need reliable results on blending, deburring, and fine finishing operations across a range of ferrous and non-ferrous metals.

This belt is suited for detail work on flat, contoured, and complex-shaped metal parts. Typical applications include blending weld seams, cleaning oxidation and surface scale, deburring cut edges, setting directional grain, achieving straight-line brushed finishes, and finishing stainless steel. The open nonwoven structure resists loading, making it effective for extended runs in both manual and robotic processing environments. It is commonly used in fabrication shops, maintenance facilities, and light manufacturing where consistent surface conditioning results are required across production volumes.

Key Features

• Silicon carbide abrasive mineral provides sharp, consistent cut on metal surfaces
• Open nonwoven web reduces loading and heat buildup for longer belt life and uniform results
• Reinforced scrim backing delivers flexibility for contouring over edges, radii, and complex geometries
• Conformable construction keeps the abrasive in contact with irregular part profiles, including in robotic applications
• Removes grind lines, mill marks, surface imperfections, and weld discoloration
• Performs blending, deburring, cleaning, fine finishing, and straight-line brushed finish operations

Compatibility

Designed as a replacement-style surface conditioning belt for standard 3-inch wide belt finishing machines, backstand grinders, and automated robotic finishing systems accepting 18-inch by 3-inch belts.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt finishing equipment. Ensure the machine is fully powered down and the tension release is engaged before changing belts. Verify belt tracking alignment before resuming operation to prevent edge contact with machine components. Always follow the machine manufacturer's maximum operating speed rating and confirm it is compatible with the belt's rated speed before use.

Technical Specifications

• Length: 18 inches
• Width: 3 inches
• Abrasive Material: Silicon Carbide
• Backing Type: Scrim (Reinforced Nonwoven)
• Construction: Nonwoven Open Web
• Weight: 0.2 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00048011189048

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100081741
