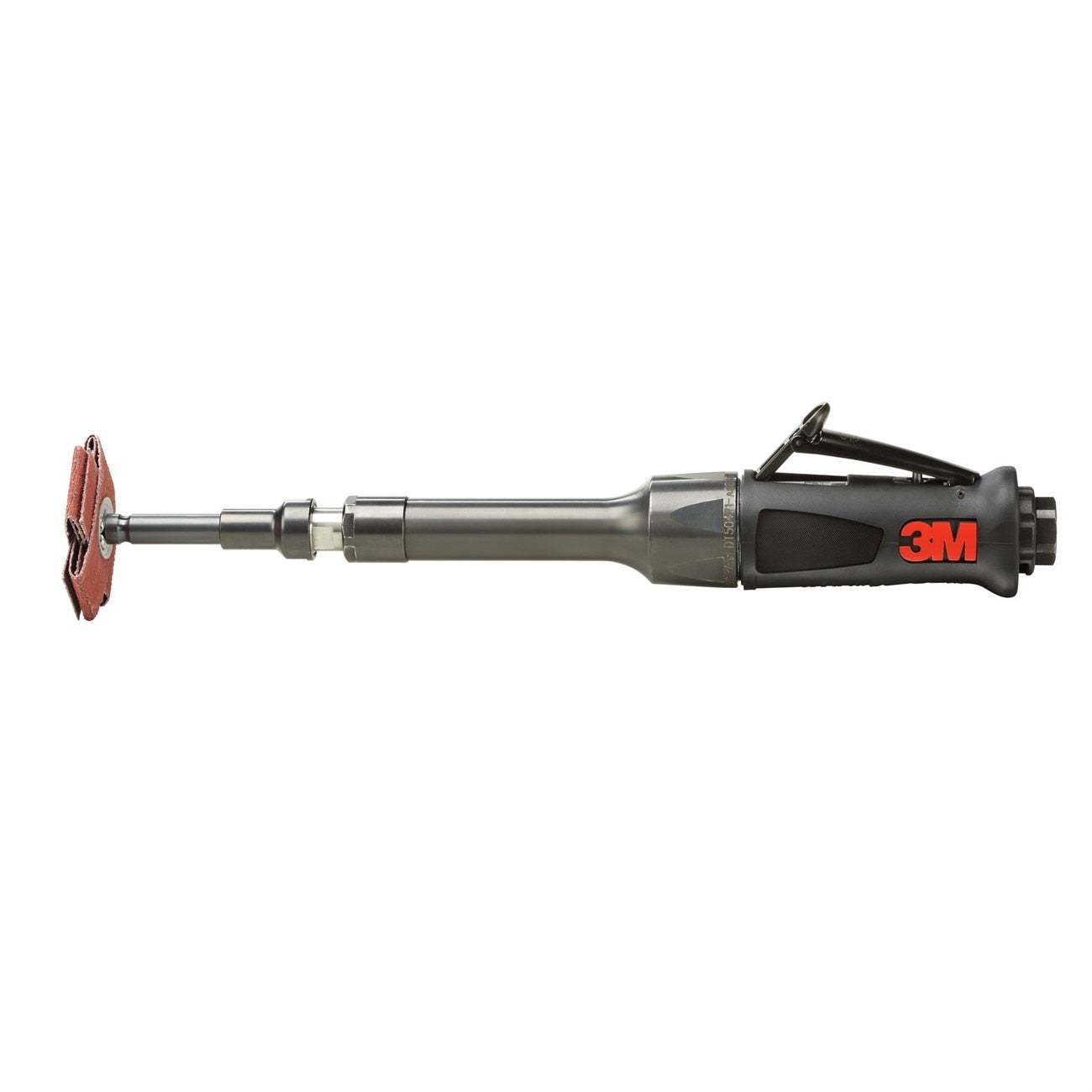

3M 7100075513 Extended Die Grinder 0.3 Hp 25000 Rpm

Product Description

The 3M 7100075513 is a pneumatic straight-shaft die grinder with a 3-inch extended reach, designed for polishing, buffing, shaping, and deburring in confined or hard-to-access areas. Running at 25,000 RPM and rated at 0.3 HP, it delivers consistent rotational speed for precision material removal and surface finishing tasks. The tool features rear exhaust to direct airflow away from the work surface and operator. It ships complete with a 1/4-inch collet, a 1/8-inch collet insert, a 1/4-inch to 1/8-inch reduction bushing, and two wrenches, making it ready to use out of the box.

This lightweight pneumatic die grinder suits fabrication shops, maintenance facilities, automotive body work, and general metalworking environments where operators need to reach recessed welds, internal cavities, or tight clearances. The 3-inch shaft extension sets it apart from standard-length die grinders and reduces the need for awkward tool positioning in deep or obstructed work zones. It is typically used by machinists, fabricators, and maintenance technicians working with air-supply systems capable of meeting the tool's pneumatic requirements.

Key Features

• 3-inch extended straight shaft for access to hard-to-reach areas
• 0.3 HP pneumatic motor rated at 25,000 RPM
• Rear exhaust design directs airflow away from operator and work surface
• Includes 1/4-inch collet and 1/8-inch collet insert for accessory flexibility
• Includes 1/4-inch to 1/8-inch reduction bushing and two wrenches
• Lightweight construction reduces operator fatigue during extended use

Compatibility

Designed as an OEM-style pneumatic die grinder compatible with standard 1/4-inch and 1/8-inch rotary die grinder accessories including mounted points, carbide burrs, and polishing mandrels.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Before connecting to an air supply, verify the line pressure matches the tool's rated operating requirements and ensure the air supply is equipped with a proper filter, regulator, and lubricator. Inspect the collet and accessory for secure seating before operation, and never exceed the maximum RPM rating of the mounted accessory. Disconnect the air supply before changing collets or accessories.

Technical Specifications

• Horsepower: 0.3 HP
• No-Load Speed: 25,000 RPM
• Shaft Extension: 3 inches
• Collet Size (included): 1/4 inch and 1/8 inch
• Exhaust Type: Rear exhaust
• Weight: 3.52 pounds
• UPC: 00051141286303

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100075513
