3M 7100075510 Pneumatic Die Grinder 0.3 Hp 18000 Rpm

Product Description

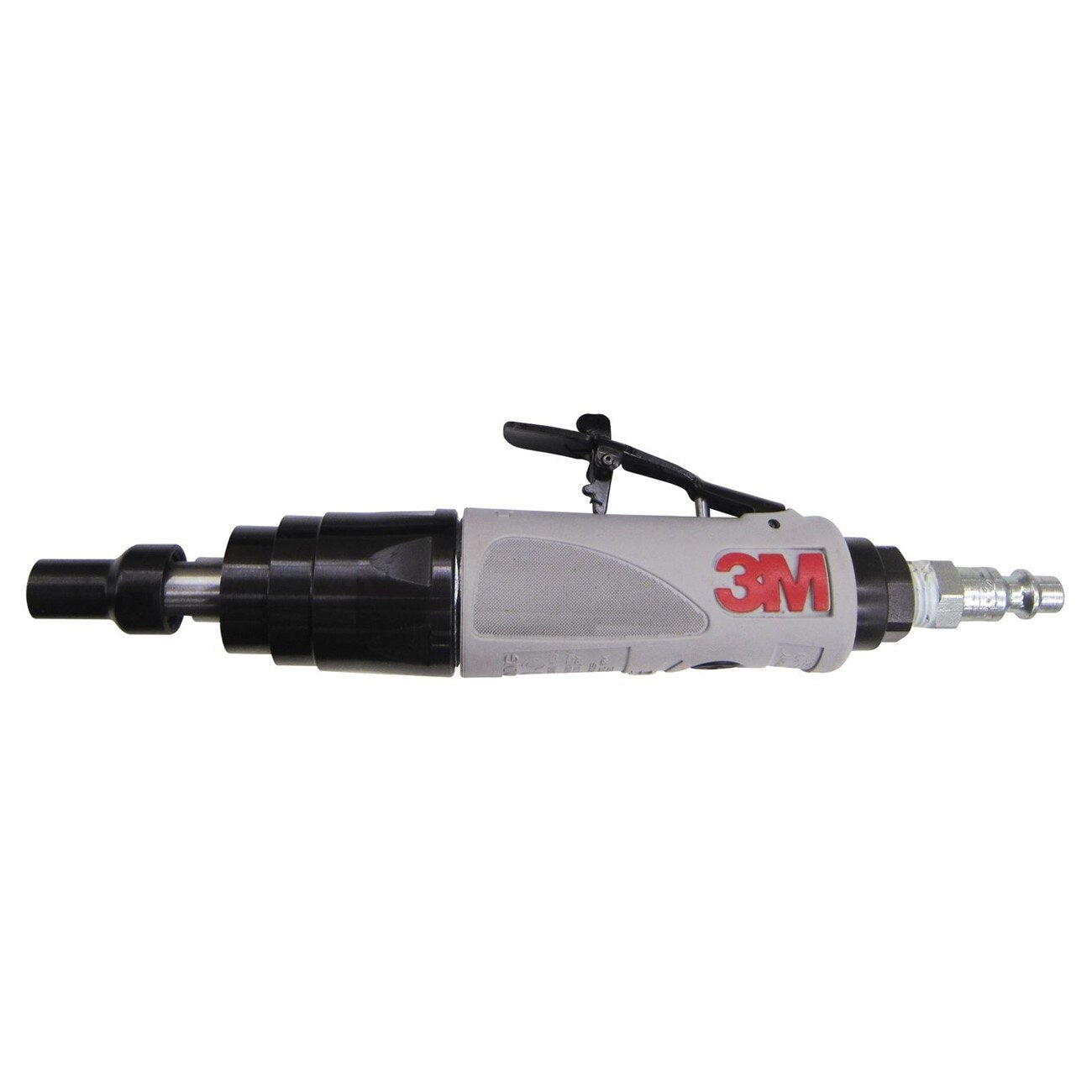

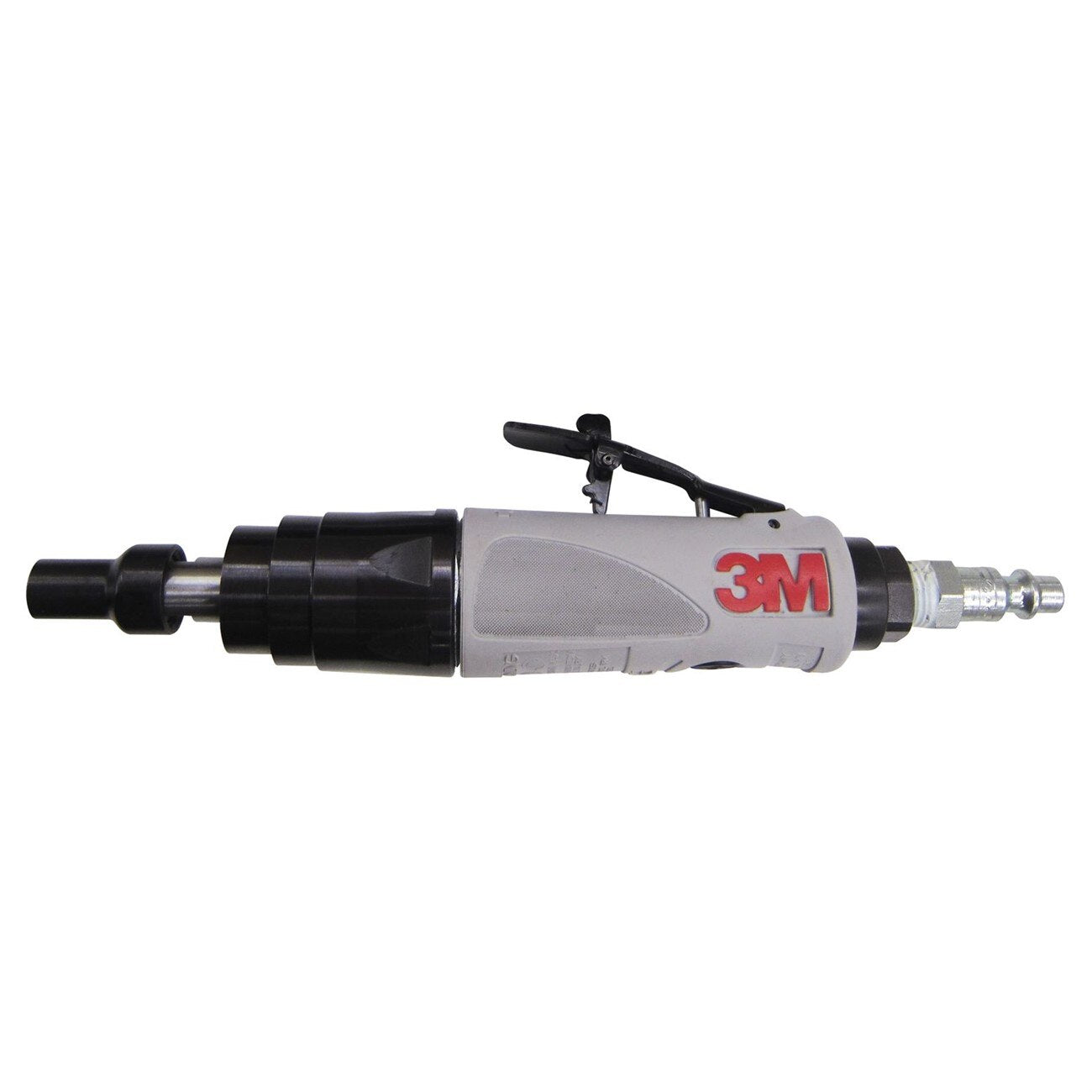

The 3M 7100075510 is a straight-shaft pneumatic die grinder rated at 0.3 HP and 18,000 RPM, built for polishing, buffing, shaping, and deburring in production and maintenance environments. The tool features rear exhaust to direct airflow away from the work surface and ships complete with a 1/4-inch collet, a 1/8-inch collet insert, a 1/4-inch to 1/8-inch reduction bushing, and two wrenches. 3M Gripping Material is integrated into the handle to dampen vibration and improve control during extended use. Weighing 3.26 pounds, it is a compact, handheld pneumatic tool suited for technicians and fabricators who need precise material removal at high speed.

This die grinder is well suited for light-duty to medium-duty shop tasks including deburring metal castings, shaping composite materials, and detail polishing on finished surfaces. Its straight-shaft design allows direct access to confined or recessed work areas. The included collet set gives operators flexibility to run both 1/4-inch and 1/8-inch shank accessories without additional tooling purchases. The tool is appropriate for automotive, HVAC fabrication, plumbing rough-in, and general metalworking applications where a compact pneumatic rotary tool is needed.

Key Features

• 0.3 HP pneumatic motor delivers 18,000 RPM for high-speed material removal
• Straight-shaft design provides access to tight or recessed work areas
• Rear exhaust directs air away from the operator and work surface
• 3M Gripping Material reduces vibration for improved control during extended use
• Includes 1/4-inch collet, 1/8-inch collet insert, 1/4-inch to 1/8-inch reduction bushing, and two wrenches
• Lightweight at 3.26 pounds for reduced operator fatigue

Compatibility

Designed for use with standard 1/4-inch and 1/8-inch shank rotary accessories including grinding stones, carbide burrs, and polishing mandrels commonly used in pneumatic die grinder applications.

Installation Notes

Connect to a clean, dry compressed air supply at the pressure rating specified for the accessory in use. Ensure the air line is depressurized before changing collets or accessories. Inspect the collet and shank for wear or damage before each use, and confirm the accessory is fully seated and the collet nut is securely tightened. Always wear appropriate eye protection and follow applicable shop safety procedures when operating rotary abrasive tools.

Technical Specifications

• Horsepower: 0.3 HP
• No-Load Speed: 18,000 RPM
• Shaft Style: Straight
• Collet Size (Standard): 1/4 inches
• Collet Size (Insert): 1/8 inches
• Exhaust: Rear
• Weight: 3.26 pounds
• Drive Type: Pneumatic

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100075510
