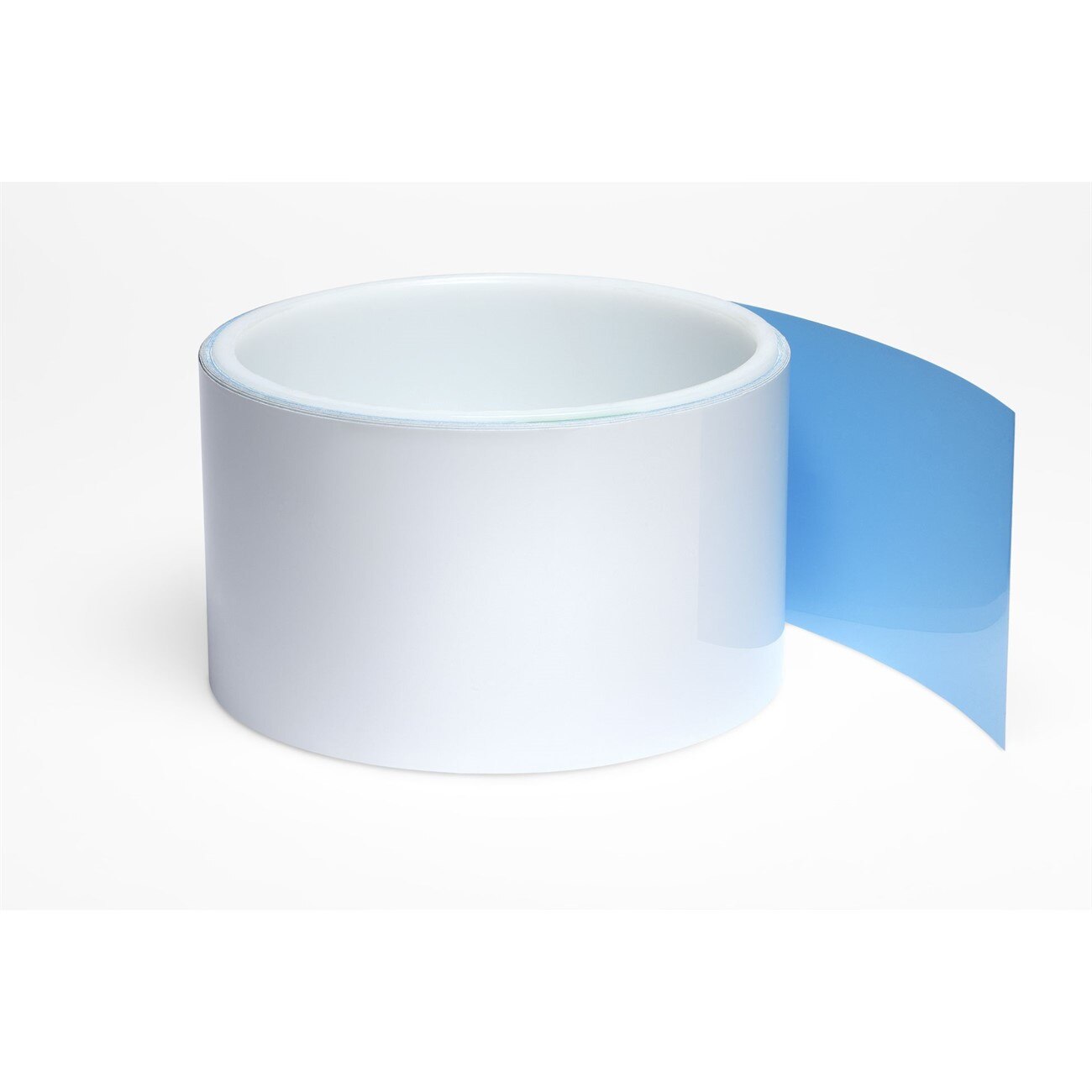

3M 7100063957 Adhesive Transfer Tape 8820 22in X 36yd

Product Description

The 3M 7100063957 is a thermally conductive adhesive transfer tape designed to create reliable heat-transfer paths between heat-generating components and cooling devices such as heat sinks, fans, heat spreaders, and heat pipes. The tape uses a pressure-sensitive adhesive loaded with thermally conductive ceramic fillers, eliminating the need for a heat cure cycle. Firm pressure is all that is required to form a strong bond and establish an effective thermal interface. Supplied in a 22-inch-wide by 36-yard roll, this format suits high-volume or continuous lamination processes in electronics assembly and thermal management applications.

This tape is used in applications where thermal management is critical and a low-profile bonding solution is needed. It bonds to a wide range of substrates without additional curing steps, making it suitable for electronics manufacturing, PCB assembly, LED mounting, power supply construction, and similar industrial processes. The large-format roll size supports production-scale use where consistent thermal interface performance is required across many components or assemblies.

Key Features

• Pressure-sensitive adhesive — no heat cure cycle required for bonding
• Thermally conductive ceramic fillers create a preferential heat-transfer path
• Bonds to a wide variety of substrates under simple pressure application
• Large-format roll: 22 inches wide by 36 yards long for production-scale use
• Compatible with heat sinks, fans, heat spreaders, and heat pipes

Compatibility

Designed as a thermal interface bonding solution for heat-generating electronic components and associated cooling devices including heat sinks, fans, heat spreaders, and heat pipes across a broad range of substrate materials.

Installation Notes

Installation is performed by electronics assembly technicians or thermal management engineers. Clean and dry all mating surfaces before applying the tape to ensure maximum adhesion and thermal contact. Apply firm, even pressure across the tape surface to activate the pressure-sensitive bond. No curing oven or elevated temperature cycle is needed after application.

Technical Specifications

• Width: 22 inches
• Length: 36 yards
• Unit of Measure: Roll
• Weight: 34.32 pounds
• Minimum Order Quantity: 1
• UPC: 00048011616162

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100063957
