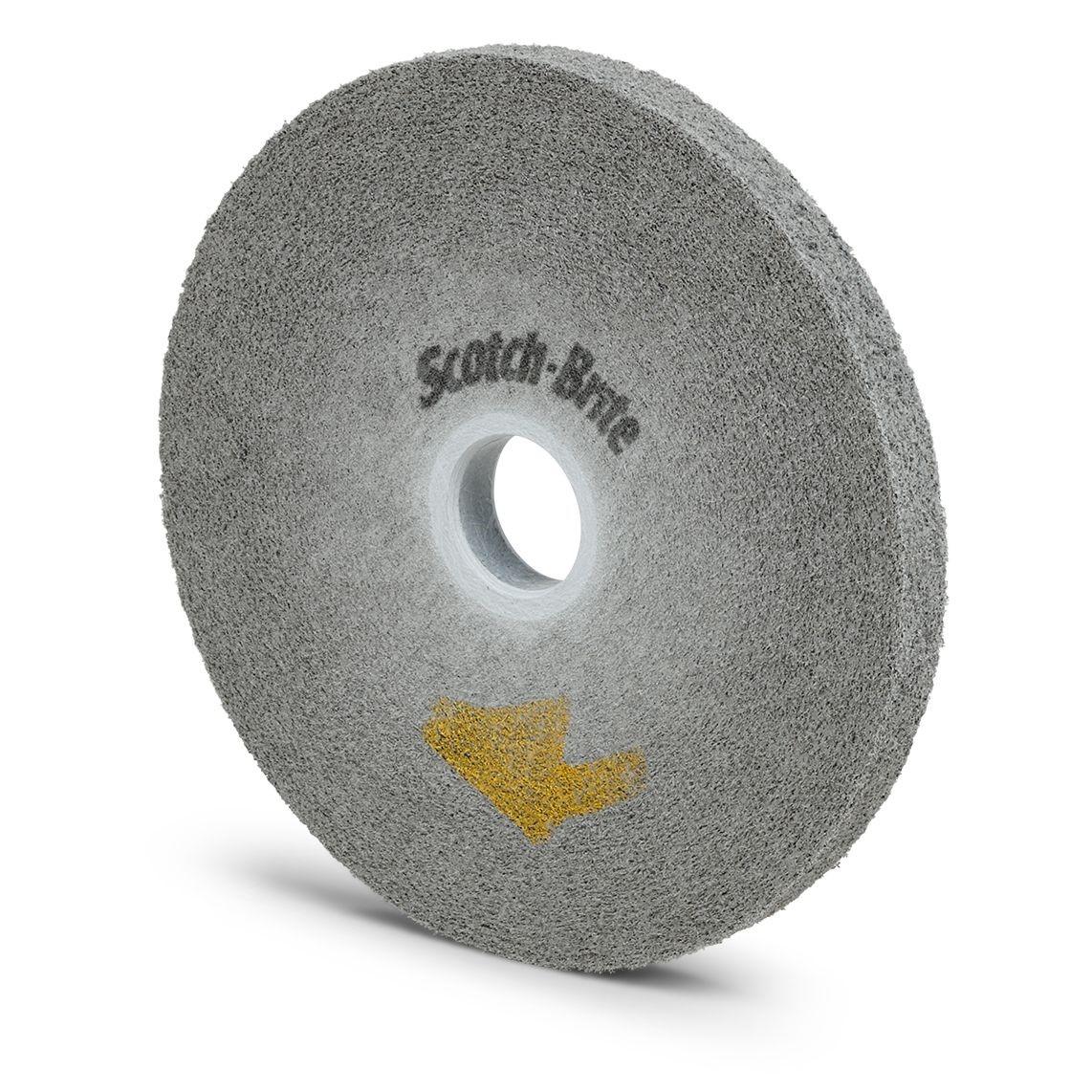

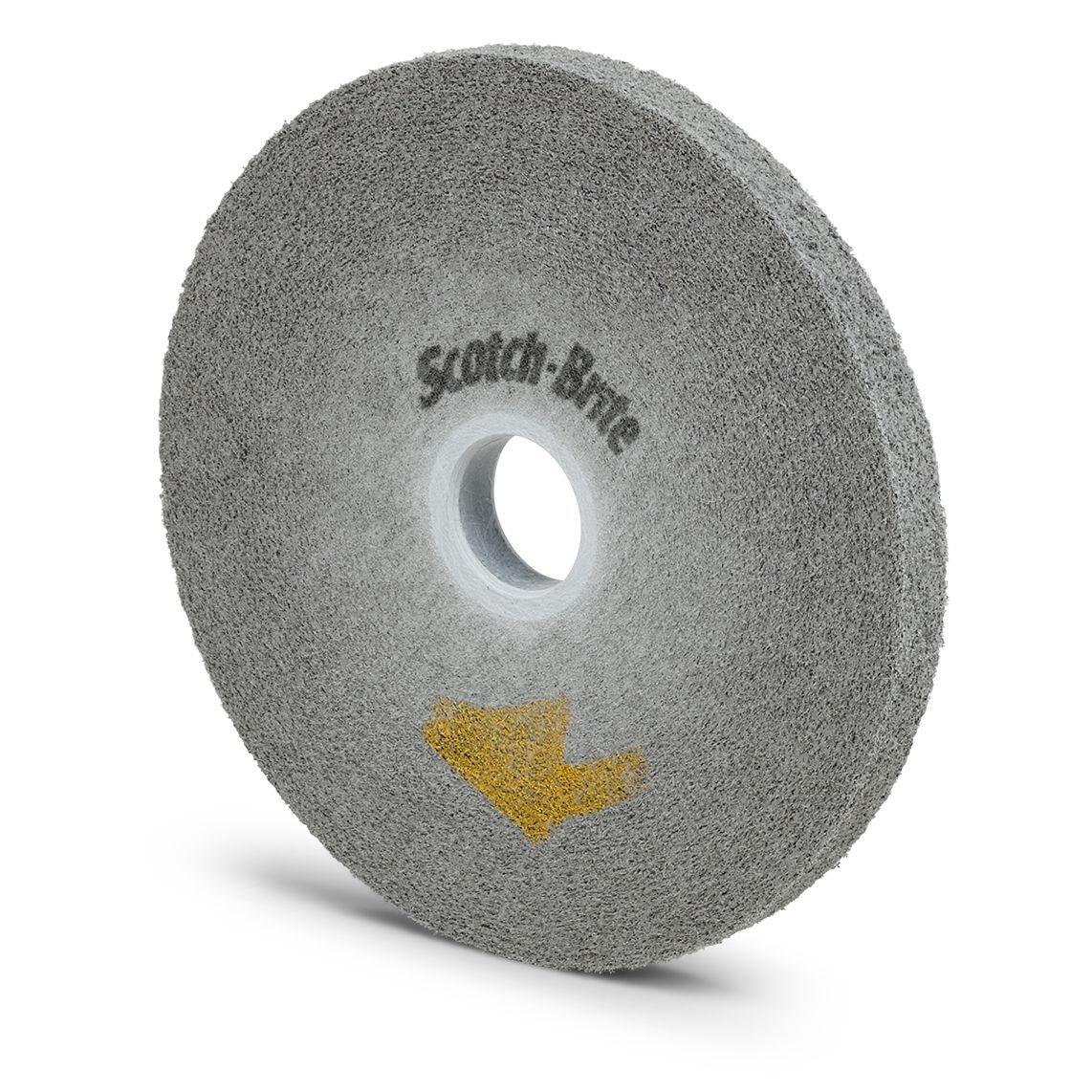

3M 7100050505 Scotch-brite Exl Pro Deburring Wheel 6 Inch

Product Description

The 3M 7100050505 is a convolute deburring wheel in the Scotch-Brite EXL PRO line, designed for off-hand deburring and edge finishing on metal workpieces. The wheel measures 6 inches in diameter and uses a convolute construction — layers of abrasive nonwoven material wound around a core — to deliver consistent cut and finish throughout the wheel's life. The EXL PRO formulation uses an extra-tough resin system and reinforced composition that extends service life 30 to 50 percent over the standard EXL wheel, while requiring less operator pressure to achieve a fast cut. Machinists, fabricators, and maintenance technicians use this wheel for burr removal and edge radiusing on heat-sensitive parts where discoloration and warping are concerns.

This deburring wheel is suited for bench grinder and pedestal grinder off-hand operations in metal fabrication, welding shops, and general manufacturing environments. It performs on a range of metals including ferrous and non-ferrous stock where a controlled, consistent finish is needed. The convolute structure conforms to irregular surfaces and maintains smooth running balance as the wheel wears, making it practical for repetitive production deburring as well as one-off finishing work. The unique resin system minimizes smearing, reducing cleanup time between operations.

Key Features

• Convolute construction delivers consistent cut and smooth operation from first use to last
• 30 to 50 percent longer service life compared to the standard EXL wheel
• Extra-tough composition removes burrs and radiuses sharp edges with less applied pressure
• Unique resin system minimizes smearing and reduces surface cleaning time
• Minimizes heat buildup, reducing risk of discoloration and warping on heat-sensitive materials
• 6-inch diameter suits standard bench and pedestal off-hand grinder setups

Compatibility

Designed for off-hand use on standard bench grinders and pedestal grinders that accept 6-inch diameter convolute deburring wheels. No specific machine model compatibility was provided in the product data.

Installation Notes

Mounting and replacement of abrasive wheels should be performed by qualified personnel following the wheel manufacturer's safe-use guidelines and applicable ANSI B7.1 standards for abrasive wheel machinery. Always power down and lock out the grinder before mounting or removing a wheel. Inspect the wheel for cracks or damage before each use and confirm the machine speed rating does not exceed the wheel's maximum RPM rating. Eye and face protection is required during operation.

Technical Specifications

• Wheel Diameter: 6 inches
• Construction Type: Convolute
• Package Dimensions (L x W x H): 6.7 x 6.7 x 3.1 inches
• Weight: 0.4 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 4
• UPC: 00051125949040

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100050505
