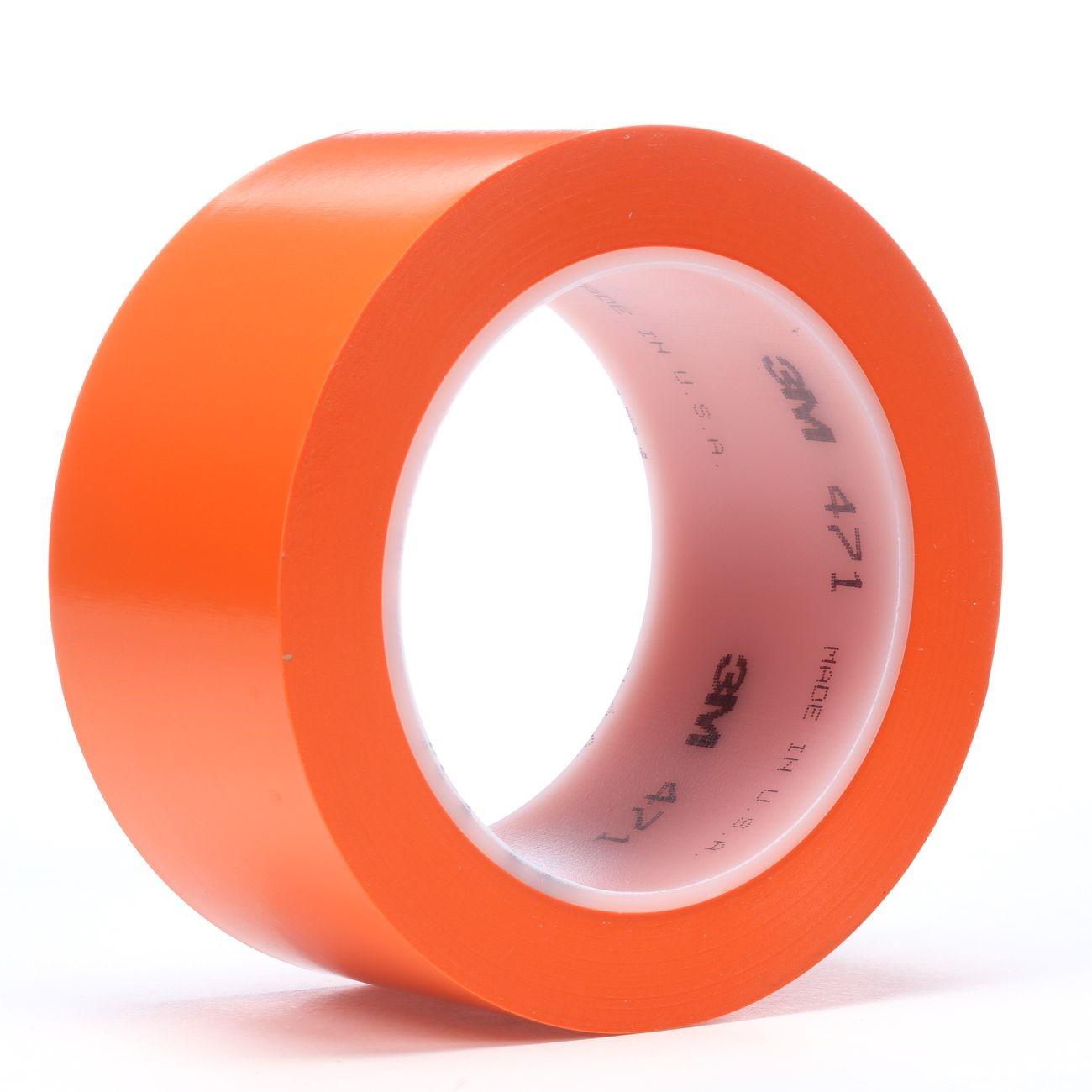

3M 7100049358 Vinyl Tape 471 Orange 0.5in X 36yd 5.2 Mil

Product Description

The 3M 7100049358 is a 5.2 mil orange vinyl tape designed for marking, masking, color coding, and surface protection in trade and industrial environments. The vinyl backing is paired with a rubber adhesive that bonds firmly to a range of substrates while still allowing clean removal without adhesive transfer. At 0.5 inches wide and 36 yards long per roll, this tape is sized for lane marking, safety striping, and wrapping curved or irregular surfaces. The dead-stretch construction helps produce straighter, more consistent lines on flat floors and irregular contours alike. Color stability under heavy abrasion keeps markings visible in high-traffic zones.

This tape is well suited for facility maintenance, plant floor layout, HVAC duct identification, electrical conduit color coding, and general industrial marking applications. Its conformability makes it effective on pipes, fittings, conduit bends, and other curved surfaces where standard tapes tend to lift or wrinkle. Good solvent resistance supports use in mechanical rooms and light-industrial settings where cleaning agents are regularly applied to floors and equipment surfaces. Installers in electrical, HVAC, and plumbing trades use this tape for color-coding pipe runs, panel identification, and temporary masking during surface work.

Key Features

• 5.2 mil vinyl backing resists abrasion and maintains color under heavy foot and equipment traffic
• Rubber adhesive provides firm bonding with clean, residue-free removal
• Dead-stretch properties allow straighter lines on floor and wall marking applications
• Conformable construction wraps curved and irregular surfaces without lifting
• Good solvent resistance supports use in areas exposed to cleaning agents
• Orange color supports high-visibility safety and hazard marking layouts

Compatibility

Designed as a general-purpose vinyl marking and masking tape suitable for smooth and semi-smooth surfaces including concrete floors, metal conduit, ductwork, and equipment housings in residential and commercial trade applications.

Installation Notes

Surface preparation is critical for adhesion — clean and dry the substrate before application to remove dust, oil, or moisture. Apply with steady, even pressure along the full tape length to prevent air pockets, particularly on curved surfaces. For floor marking in high-traffic areas, press seams firmly to reduce edge lifting. Remove tape at a low angle to the surface to help ensure clean, residue-free pull-off.

Technical Specifications

• Tape Thickness: 5.2 mil (0.13 mm)
• Width: 0.5 inches
• Length: 36 yards per roll
• Backing Material: Vinyl
• Adhesive Type: Rubber
• Color: Orange
• Unit of Measure: Roll
• Minimum Order Quantity: 12
• Weight: 0.23 pounds
• UPC: 00021200074738

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100049358
