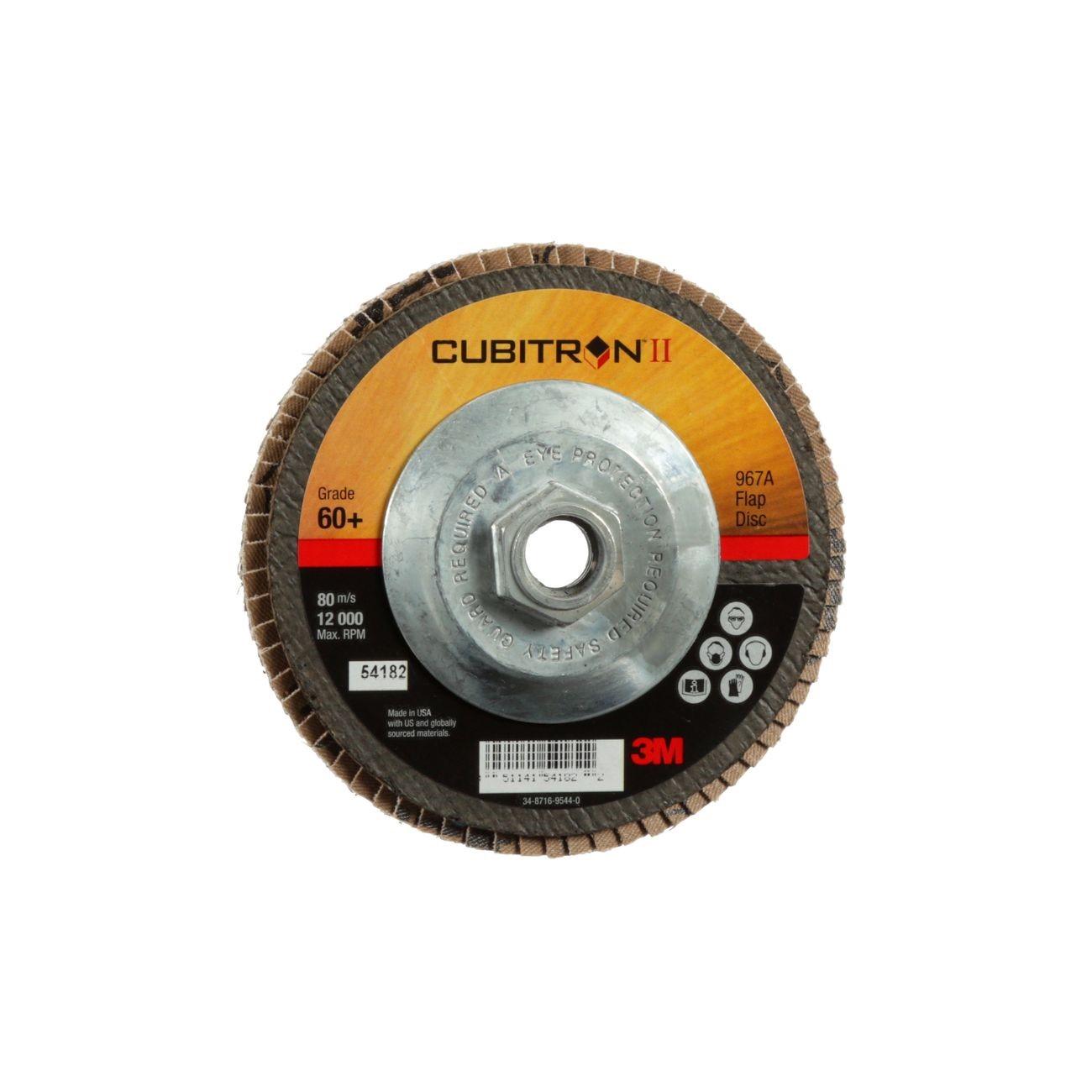

3M 7100049201 Cubitron Ii 967A 5 Inch 60 Grit Flap Disc

Product Description

The 3M 7100049201 is a Type 29 right-angle flap disc built around 3M Precision-Shaped Grain abrasive technology. At 5 inches in diameter and 60 grit, it delivers a fast, consistent cut rate throughout the life of the disc. Individual flaps break down progressively, continuously exposing fresh mineral so cut performance does not degrade as the disc wears. The poly-cotton backing provides controlled, even wear under medium unit pressure, making it well-suited for weld leveling, light deburring, and surface preparation ahead of paint or coating application.

This disc is designed for medium-pressure grinding applications on flat and contoured surfaces. It performs reliably on mild steel and stainless steel, including fabrication environments where finish quality and gouge resistance matter. Typical use cases include weld bead leveling, seam blending, and pre-paint surface prep in light industrial, metal fab shop, and field fabrication settings. Its reduced gouging tendency compared to fiber discs and bonded wheels makes it a practical choice where surface integrity is a priority.

Key Features

• 3M Precision-Shaped Grain abrasive delivers fast cut rate and extended disc life
• Progressive flap breakdown continuously exposes fresh mineral for consistent performance
• Poly-cotton backing supports controlled, even wear at medium unit pressure
• Less gouging than fiber discs and bonded abrasive wheels
• Suited for flat and contoured surface work including weld leveling and light deburring
• Compatible with mild steel and stainless steel applications

Compatibility

Designed as an OEM-style replacement-grade flap disc for use with standard 5-inch right-angle grinders and angle grinder tooling accepting Type 29 flap disc configurations.

Installation Notes

Flap discs of this type are mounted and serviced by metalworkers, fabricators, and maintenance technicians using standard right-angle grinders. Confirm the grinder arbor size and maximum RPM rating are compatible before mounting. Always power down and disconnect the grinder from its power source before changing discs. Inspect the disc for damage before each use and do not exceed the rated operating speed marked on the disc.

Technical Specifications

• Disc Diameter: 5 inches
• Grit: 60
• Disc Type: Right Angle (Type 29)
• Abrasive Mineral: 3M Precision-Shaped Grain
• Backing Material: Poly-cotton
• Unit of Measure: Each
• Package Weight: 3.67 pounds
• Package Length: 8.88 inches
• Package Width: 5.75 inches
• Package Height: 6.13 inches
• UPC: 051141541827

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100049201
