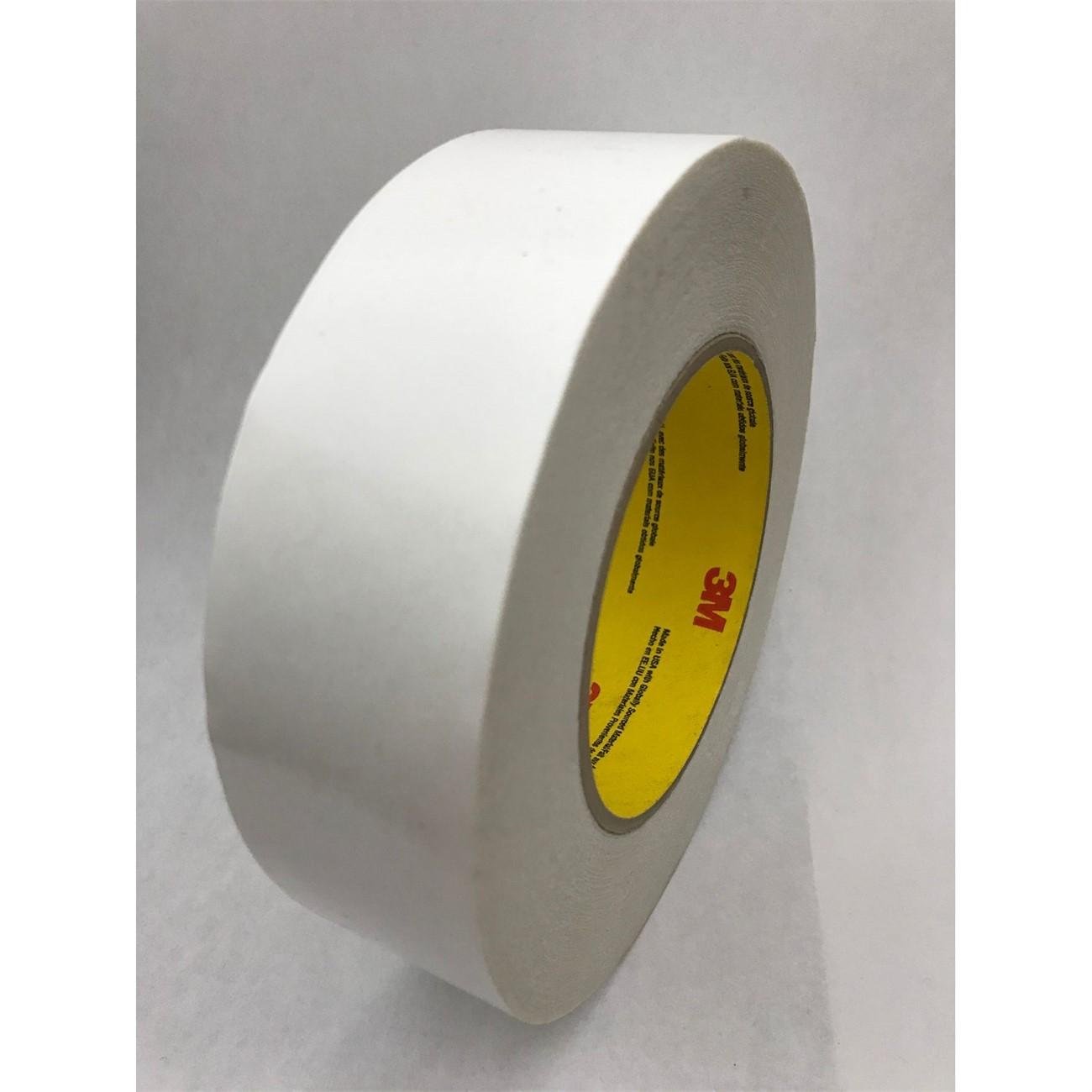

3M 7100043906 Double Coated Pet Tape 514CW White 2.83 in

Product Description

The 3M 7100043906 is the Venture Tape 514CW Double Coated PET Tape, a high-performance bonding tape built with a polyester (PET) backing and an acrylic adhesive system. It measures 2.83 inches wide and is sold by the roll. The acrylic adhesive delivers strong peel, tack, and shear strength across a broad range of substrates. The tape is engineered to resist UV exposure and performs reliably across a wide temperature range, making it suitable for demanding industrial and construction bonding tasks. HVAC, signage, and fabrication professionals typically select this tape where long-term adhesion to hard-to-bond surfaces is required.

This double coated tape is designed for bonding applications involving metals, high surface energy plastics, and composite materials. It is well suited for both interior and exterior use where UV stability and thermal cycling resistance matter. Typical applications include panel assembly, nameplate attachment, gasket bonding, and component mounting in light industrial and commercial environments. The roll format is compatible with standard tape dispensing equipment used in fabrication and assembly workflows.

Key Features

• Double coated construction with polyester (PET) film carrier for dimensional stability
• Acrylic adhesive bonds to metals, high surface energy plastics, and composite materials
• Excellent UV resistance for exterior and long-term indoor applications
• Performs at both high and low temperature extremes
• High peel, tack, and shear strength for demanding load-bearing bonds

Compatibility

Designed for bonding to metals, high surface energy plastics, and composite materials in demanding industrial and commercial assembly applications.

Installation Notes

Surface preparation is critical before application — clean substrate surfaces thoroughly to remove oil, dust, and moisture for maximum adhesion. Apply firm pressure across the full bond area to ensure full contact between the adhesive and the substrate. When removing the liner, avoid stretching the tape to maintain dimensional accuracy. Follow all applicable workplace safety guidelines when handling adhesive products in confined or poorly ventilated spaces.

Technical Specifications

• Width: 2.83 inches
• Backing Material: Polyester (PET)
• Adhesive Type: Acrylic
• Color: White
• Unit of Measure: Roll
• Package Weight: 23.077 pounds
• Package Length: 11.13 inches
• Package Width: 11.13 inches
• Package Height: 12.25 inches
• UPC: 051128961884

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100043906
