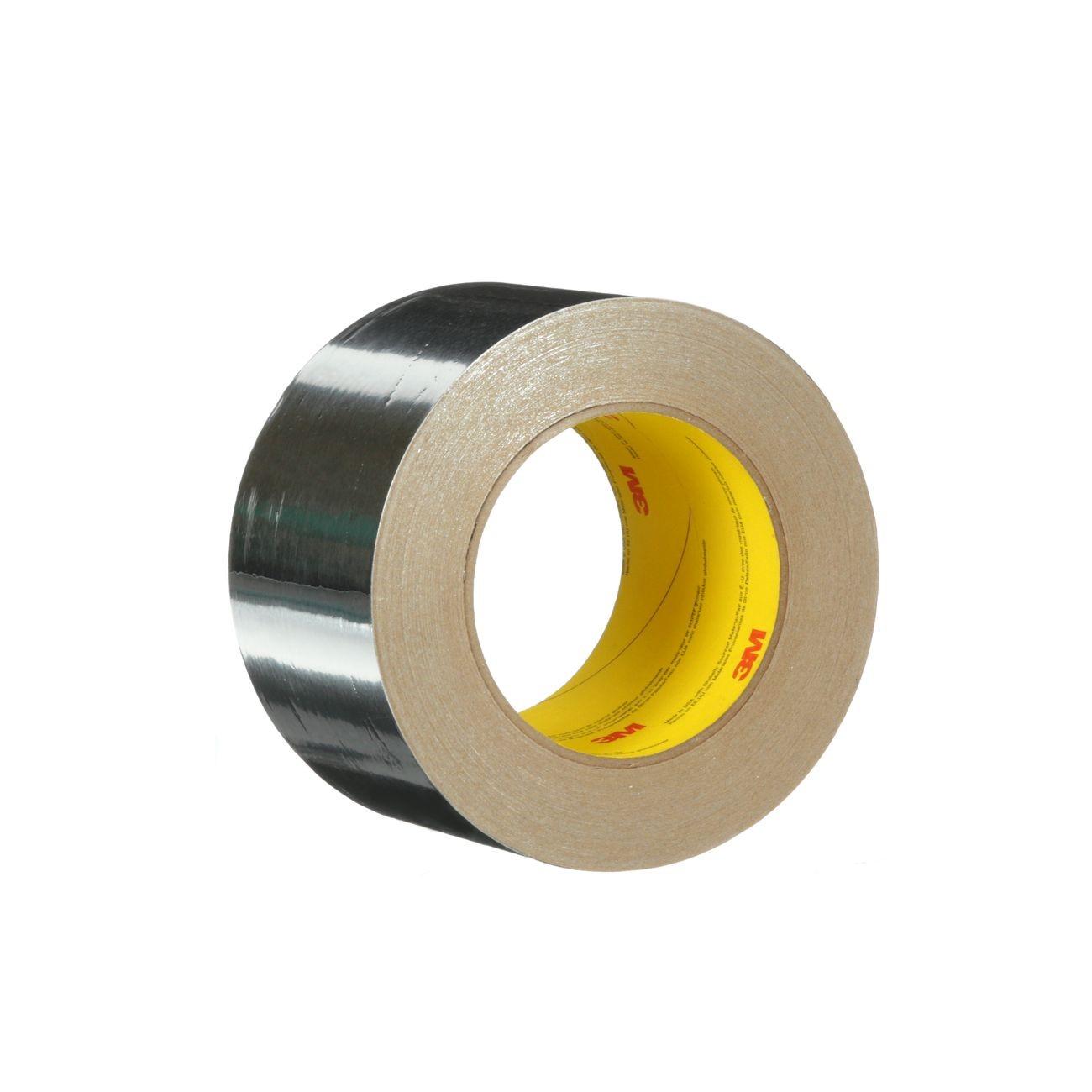

3M 7100041567 Aluminum Foil Tape 2.83 in 25 M Cold Weather

Product Description

The 3M 7100041567 is a cold-weather aluminum foil tape designed for sealing, joining, and patching fibrous ductboard and sheet metal duct systems. The tape features a nominal 1.8 mil aluminum foil backing coated with a pressure-sensitive acrylic adhesive engineered to maintain bond strength at temperatures as low as -10 degrees F. At 2.83 inches wide and 25 meters long per roll, it provides substantial coverage for both residential and light commercial HVAC applications. The flexible foil construction allows it to conform to curved, irregular, and fibrous surfaces without lifting or delaminating. HVAC technicians and sheet metal installers are the primary users of this product.

This tape is suited for duct sealing and insulation facing repairs on fibrous ductboard and sheet metal duct systems, including installations in unconditioned spaces such as attics, crawlspaces, and mechanical rooms where low ambient temperatures are common. Its hand-tearable design eliminates the need for a cutting tool on the job, making it practical for field installation. The reflective aluminum surface also makes it appropriate for general-purpose heat shielding and light-reflecting applications in HVAC and mechanical system environments.

Key Features

• Nominal 1.8 mil aluminum foil backing conforms to curved and irregular duct surfaces
• Cold-weather acrylic adhesive bonds at temperatures as low as -10 degrees F
• Hand tearable for fast, tool-free field installation
• Easy-release liner simplifies application and reduces waste
• Suitable for heat shielding and light-reflecting applications in addition to duct sealing
• 2.83 inch width and 25 meter length provide generous coverage per roll

Compatibility

Designed for use on fibrous ductboard and sheet metal ducts. Also suitable for general-purpose heat shielding and light-reflecting applications in HVAC and mechanical systems.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal workers in accordance with local mechanical codes and SMACNA duct construction standards. Surfaces should be clean, dry, and free of dust or grease before applying the tape to ensure maximum adhesion. Power down and de-energize any associated air handling equipment before working inside duct systems. No special tools are required for cutting or application.

Technical Specifications

• Backing Material: Aluminum foil
• Foil Thickness: 1.8 mil nominal
• Adhesive Type: Pressure-sensitive cold-weather acrylic
• Minimum Application Temperature: -10 degrees F
• Width: 2.83 inches
• Length: 25 meters per roll
• Unit of Measure: Roll
• Weight: 11.77 pounds
• UPC: 051115784496

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100041567
