3M 7100037554 Double Coated Pet Tape 514CW White

Product Description

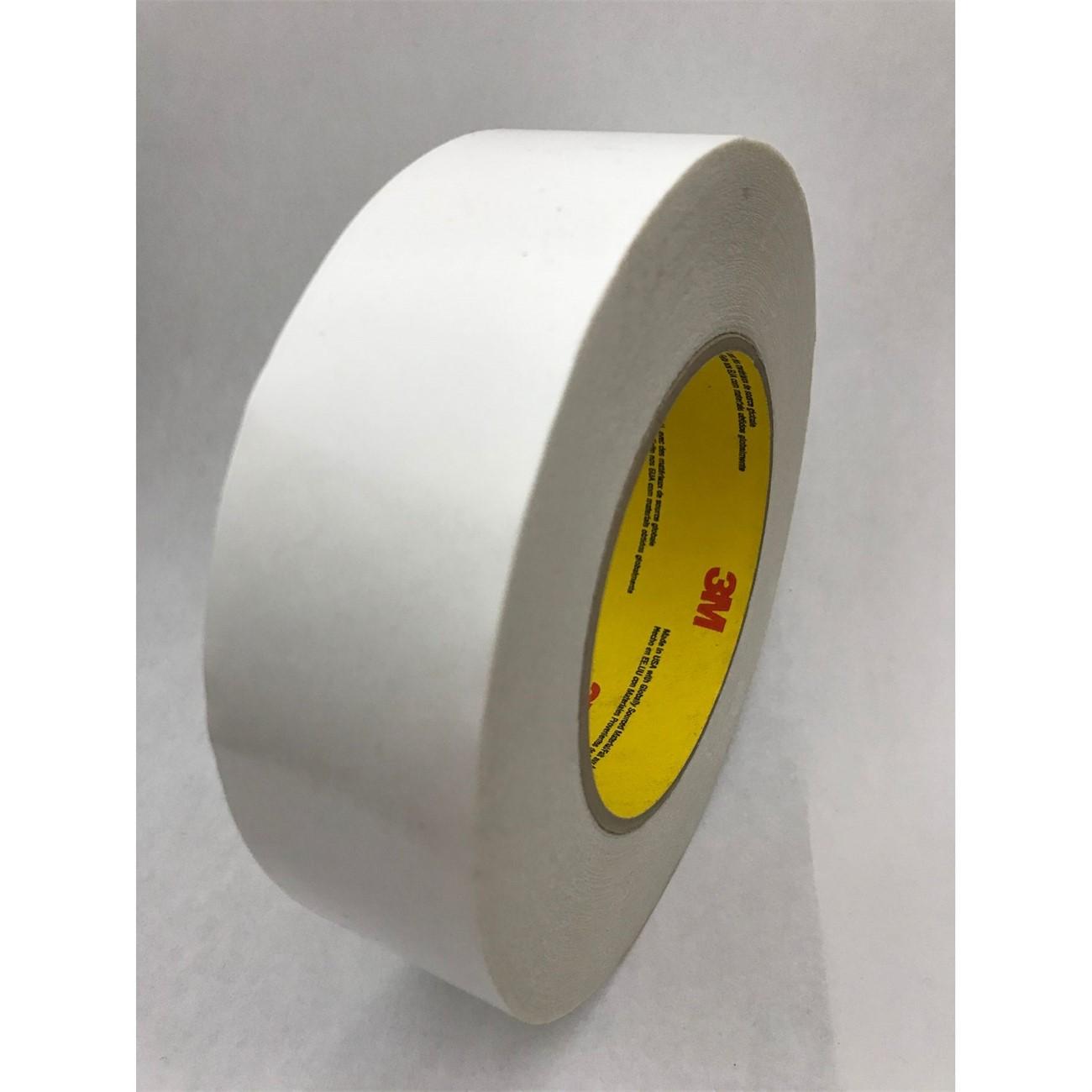

The 3M 7100037554 is a double coated polyester (PET) tape with acrylic adhesive on both sides, sold under the 3M Venture Tape 514CW designation in white. The polyester backing provides dimensional stability while the acrylic adhesive system delivers strong peel, tack, and shear strength across a wide range of substrates. This tape is engineered for demanding bonding applications where UV exposure and temperature cycling are concerns. It is well suited for industrial assembly, fabrication, and mounting tasks handled by manufacturing technicians, HVAC installers, and general trade professionals working with metals, high surface energy plastics, and composite materials.

The 514CW is designed for use in applications that require a reliable, long-term bond without mechanical fasteners. The double coated construction allows two surfaces to be joined cleanly. Typical use cases include bonding metal panels, attaching trim components, and securing composite assemblies in both indoor and outdoor environments. The white facing makes it easy to identify during assembly. This tape is supplied in roll form and is appropriate for light industrial and commercial applications where UV and temperature resistance are required.

Key Features

• Double coated PET (polyester) backing for dimensional stability and strength
• Acrylic adhesive bonds to metals, high surface energy plastics, and composite materials
• Excellent UV resistance for outdoor and exposed applications
• Performs at both high and low temperature extremes
• Strong peel, tack, and shear strength for demanding bonding applications
• White facing for easy visual identification during installation

Compatibility

Designed as a double coated bonding tape for metals, high surface energy plastics, and composite substrates in industrial and commercial assembly applications.

Installation Notes

Surface preparation is critical for full bond strength — clean surfaces of dust, oil, and moisture before application. Apply firm, even pressure across the full tape area after joining surfaces to ensure proper adhesive contact. Remove any liner material completely before bonding the second surface. This tape is intended for professional use; follow applicable workplace safety guidelines when handling adhesive products in enclosed spaces.

Technical Specifications

• Tape Series: Venture Tape 514CW
• Color: White
• Width: 1.46 inches
• Backing Material: Polyester (PET)
• Adhesive Type: Acrylic, double coated
• Unit of Measure: Roll
• Package Dimensions: 11.13 inches L x 11.13 inches W x 12.56 inches H
• Weight: 23.077 pounds
• UPC: 051128961907

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100037554
