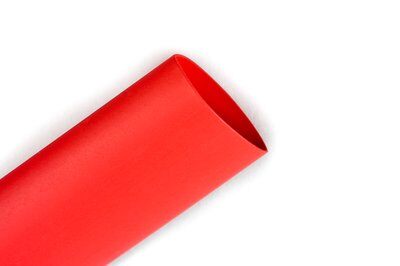

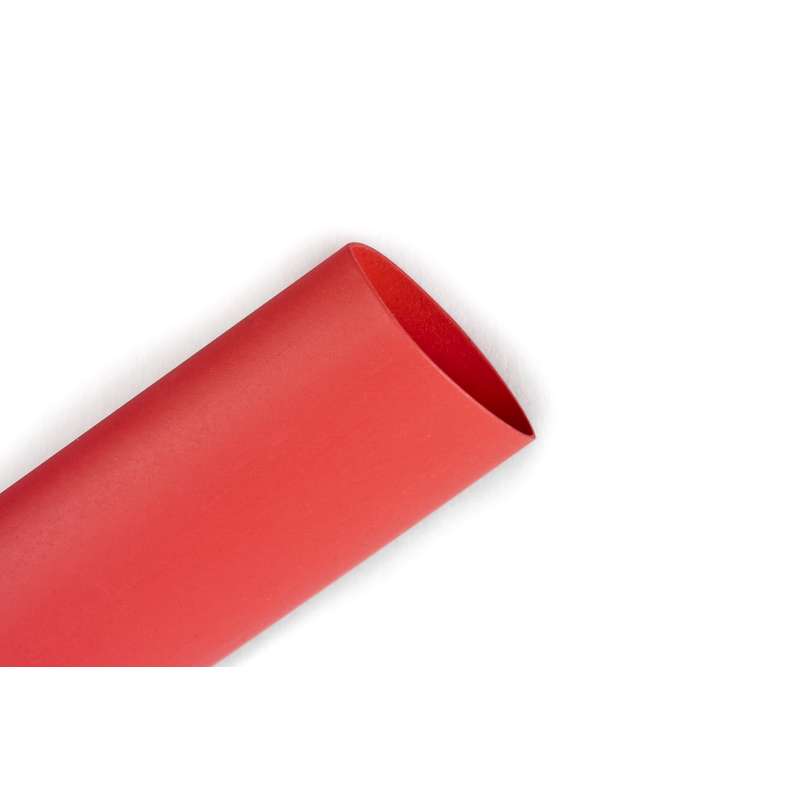

3M 7100034407 Heat Shrink Thin-Wall Tubing FP301 600V (1-1/2 in ID) 24 pcs

Product Description

3M Heat Shrink Tubing FP-301 is a thin-wall tubing ideal for electrical insulation in various industrial and military applications. Its flame-retardant properties make it suitable for use in environments with a voltage rating of six hundred volts. This tubing is made from flexible polyolefin that provides moisture seal protection and can withstand temperatures from negative sixty-seven to two hundred seventy-five degrees Fahrenheit.

• Has a two-to-one shrink ratio.
• Compatible with wire sizes from five hundred to eight hundred kcmil.
• Color-coded for easy identification.

Product Highlights

This product features a combination of electrical, physical, and chemical properties, providing excellent protection over cable splices and terminations. It is particularly useful for lightweight wire harness covering and wire bundling.

Product Information

Standard Information

• Brand: 3M
• MPN: 7100034407

Technical Specifications

• Series: FP301
• Shrink Ratio: 2:1
• Shrink Temperature: 212 degrees Fahrenheit
• Temperature Rating: -67 to 275 degrees Fahrenheit
• Type: Flame-Retardant
• Voltage Rating: 600 VAC
• Wall Type: Single (Thin)
• Wire Size: 500 to 800 kcmil
• Inner Diameter Expanded: 1-1/2 inches
• Inner Diameter Recovered: 3/4 inches
• Wall Thickness Recovered: 0.04 inches
• Length: 48 inches
• Material: Polyolefin
• Color: Red
