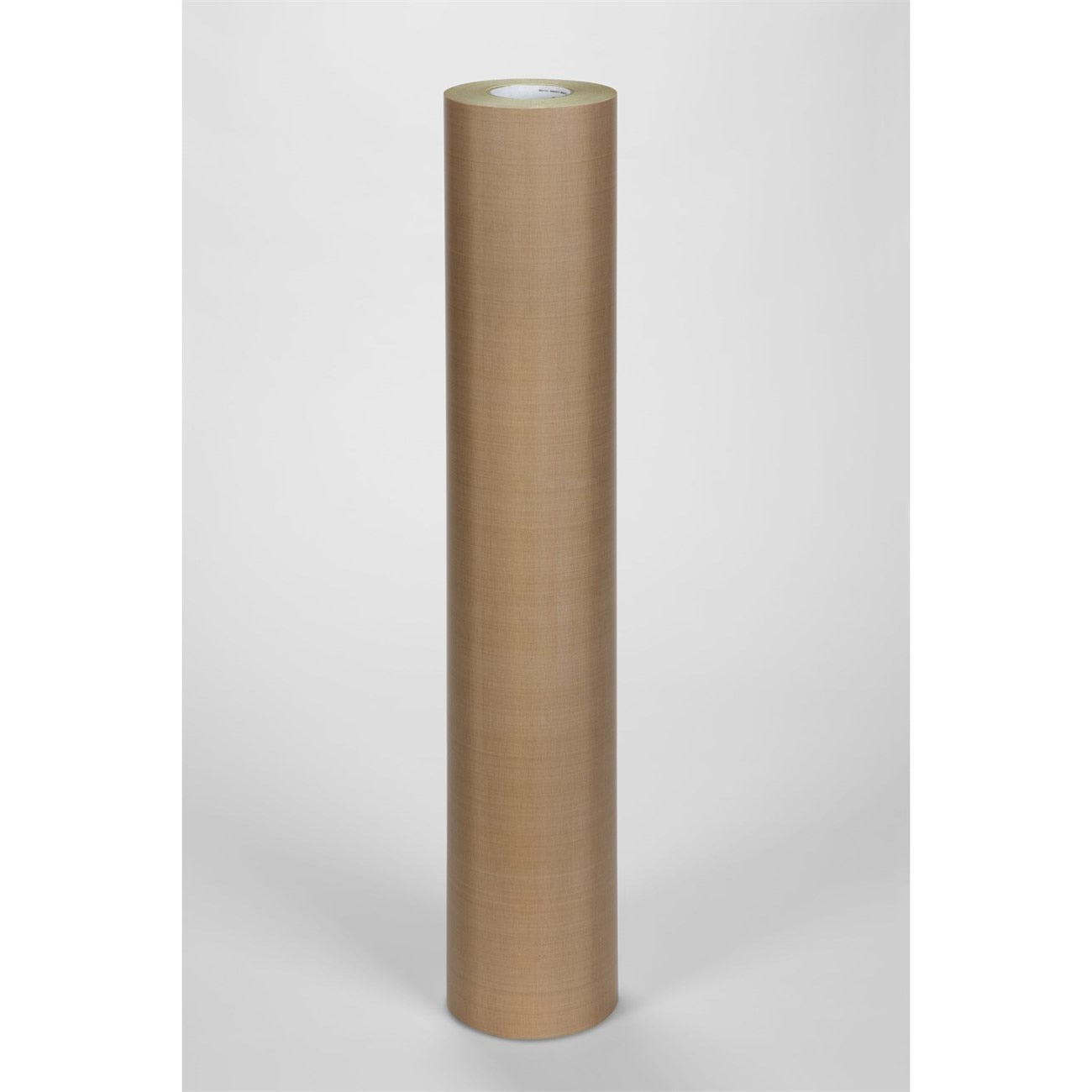

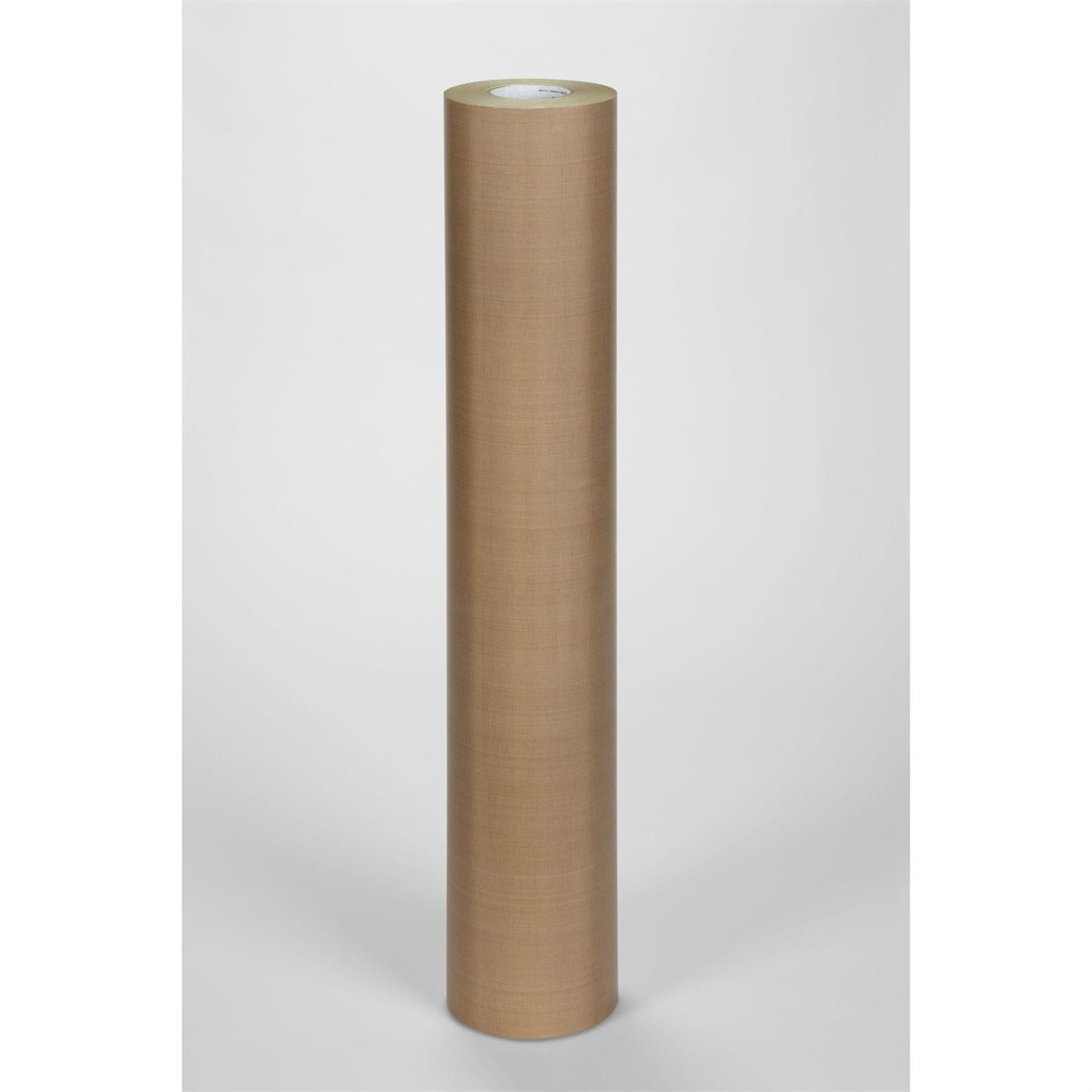

3M 7100032026 Ptfe Glass Cloth Tape 5153 0.75in X 36yd

Product Description

The 3M 7100032026 is a general purpose PTFE glass cloth tape sold as 3M Tape 5153. The tape combines a woven fiberglass substrate impregnated with PTFE (polytetrafluoroethylene) and finished with a silicone pressure-sensitive adhesive. Total thickness is 3.5 mil and the roll measures 0.75 inches wide by 36 yards long. The color is light brown. PTFE provides a low-friction, chemically resistant surface while the glass cloth backing delivers high tensile strength, puncture resistance, and abrasion resistance. The silicone adhesive bonds under heat and releases cleanly, making this tape suited for heat sealing and process equipment maintenance in industrial and commercial facilities.

This tape is used in applications where non-stick, heat-resistant, and chemically resistant surface protection is required. Typical uses include lining heat sealing machine platens and sealing bars, coating conveying chutes, troughs, and ducts to reduce friction and prevent material buildup, and protecting process equipment surfaces from adhesion and corrosion. It is installed by maintenance technicians, industrial equipment specialists, and facilities personnel working on packaging lines, food processing equipment, and other high-temperature conveying systems. Low moisture absorption extends service life in humid or wet process environments.

Key Features

• PTFE-impregnated glass cloth construction resists most chemicals and provides a slick, low-friction surface
• Silicone pressure-sensitive adhesive delivers long-lasting, easy-release performance on heat sealing equipment
• 3.5 mil total thickness with high tensile strength, puncture resistance, and abrasion resistance
• Low moisture absorption maintains performance in humid and wet process environments
• Roll size of 0.75 inches x 36 yards suits wrapping and lining of chutes, troughs, and ducts
• Weight of 0.48 pounds per roll for easy handling and inventory management

Compatibility

Designed for use on heat sealing machines, process equipment surfaces, conveying chutes, troughs, and ducts where a chemically resistant, non-stick PTFE surface is required.

Installation Notes

Installation is performed by maintenance technicians or equipment specialists. Power down and de-energize all equipment before applying or removing tape from heat sealing platens or electrically heated surfaces. Clean the substrate surface of oils, dust, and moisture prior to application to ensure full adhesive contact. Minimum order quantity from the supplier is 48 rolls per order.

Technical Specifications

• Tape Series: 5153
• Total Thickness: 3.5 mil
• Width: 0.75 inches
• Length: 36 yards
• Color: Light Brown
• Substrate: PTFE-impregnated fiberglass cloth
• Adhesive Type: Silicone pressure-sensitive
• Unit of Measure: Roll
• Weight: 0.48 pounds
• UPC: 00021200456343

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100032026
