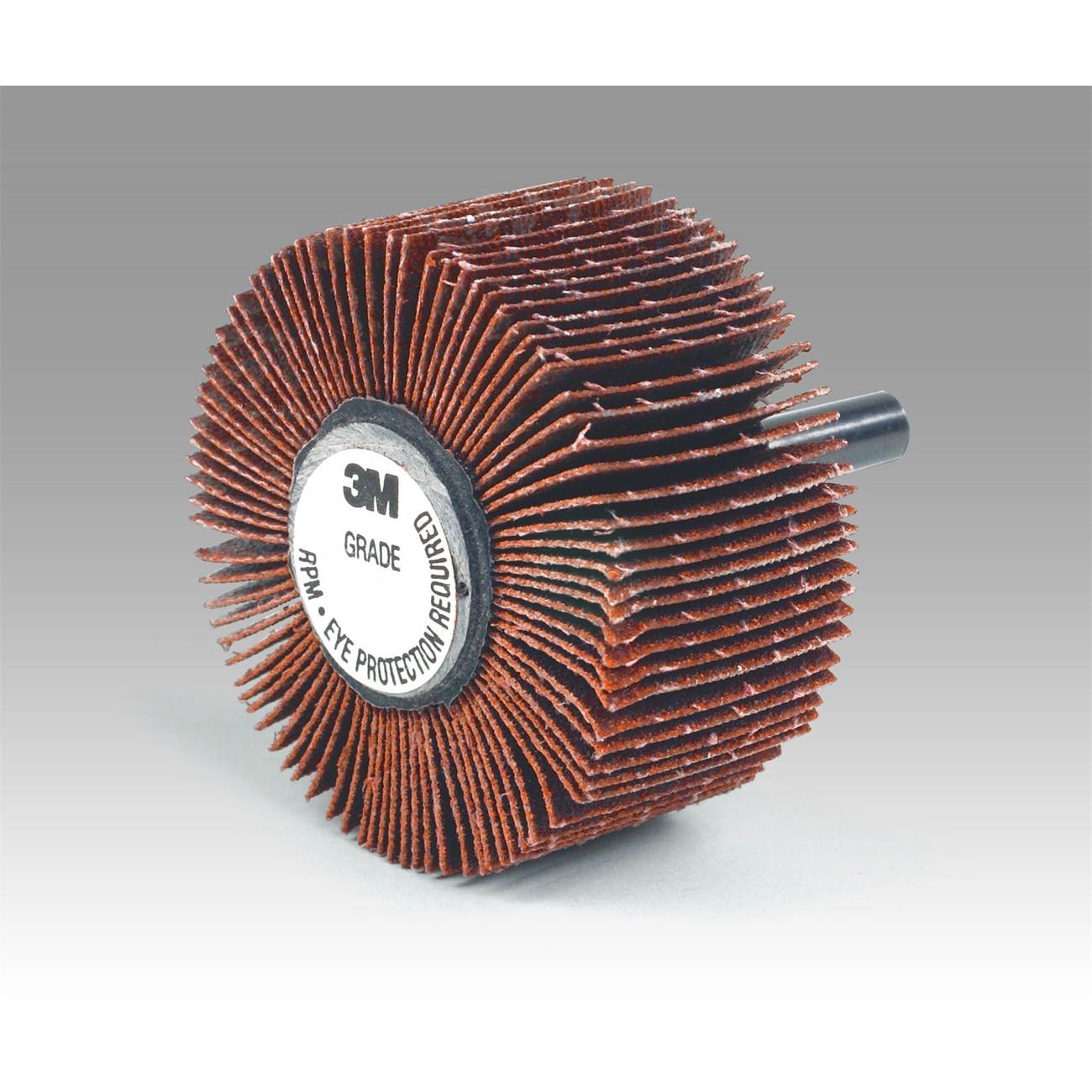

3M 7100031594 Ceramic Flap Wheel 60 Grit 3 Inch

Product Description

The 3M 7100031594 is a 3-inch diameter ceramic flap wheel designed for light grinding, blending, deburring, and polishing on a wide range of metals. The wheel uses a ceramic aluminum oxide abrasive blend bonded to X-weight cotton cloth backing, delivering an efficient cut rate with extended service life. A resin bond system resists thermal and chemical breakdown during use. The flexible flap construction allows the abrasive surface to conform to rounded and irregular workpiece profiles, producing a smooth, consistent finish. A built-in grind-aid promotes cooler operation on stainless steel and other metals, reducing heat-related discoloration and surface damage.

This flap wheel suits metalworking applications in fabrication shops, maintenance environments, and production settings. It is well suited for light stock removal, surface blending after welding, edge deburring, and pre-polish preparation on ferrous and non-ferrous metals. The 60-grit abrasive level targets moderate material removal while leaving a clean surface texture. Technicians and fabricators working on pipe, tubing, sheet metal, and structural components will find the conformable flap design particularly effective on contoured or non-flat surfaces.

Key Features

• Ceramic aluminum oxide abrasive blend for high cut rate and long wheel life
• X-weight cotton cloth backing withstands aggressive grinding and sanding demands
• Resin bond resists thermal and chemical deterioration for extended service
• Conformable flap design follows rounded and irregular surface profiles
• Built-in grind-aid reduces heat buildup on stainless steel and other metals
• 60-grit rating balances material removal with surface finish quality

Compatibility

Designed for use on a variety of ferrous and non-ferrous metals including stainless steel, carbon steel, and aluminum in light grinding, blending, deburring, and polishing operations.

Installation Notes

This wheel is installed by metalworking professionals and maintenance technicians on compatible rotary tools or die grinders. Verify that the tool spindle speed does not exceed the maximum rated RPM marked on the wheel before mounting. Ensure the wheel is properly seated and secured before operation, and always wear appropriate eye and face protection. Do not apply excessive lateral force against the wheel during use.

Technical Specifications

• Wheel Diameter: 3 inches
• Grit: 60
• Abrasive Type: Ceramic Aluminum Oxide
• Backing Material: X-Weight Cotton Cloth
• Bond Type: Resin
• Abrasive Grade: Coated
• Weight: 2.8 pounds
• Package Length: 6 inches
• Package Width: 5.5 inches
• Package Height: 7 inches

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100031594
